6ft cheater bar on a 1/4in ratchet (POSjeepxj)
Seasoned Member
Joined: Sep 2010
Posts: 413
Likes: 0
From: Camp Casey South Korea
Year: 1993
Model: Cherokee
Engine: 4.0
finally got my duplex remodel done and a few other things i needed to get done out of the way. now i have some free time to get back to jeep stuff.

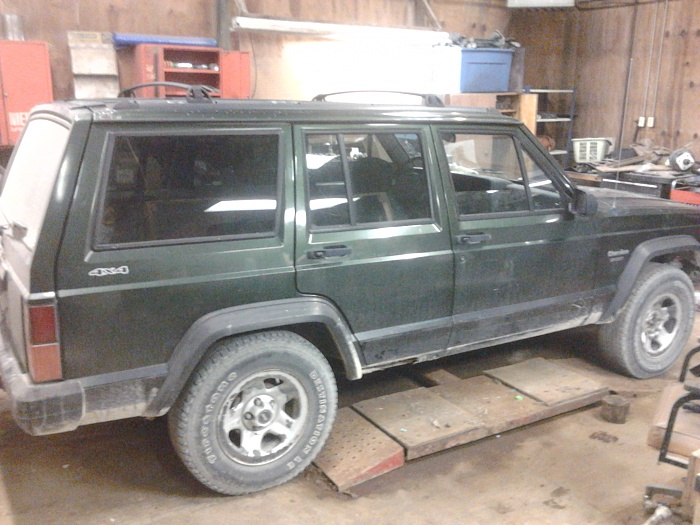

Im tired of driving around the station wagon looking xj for a dd so im guna put the 6.5in lift of this pig on my dd. (hopefully next weekend)

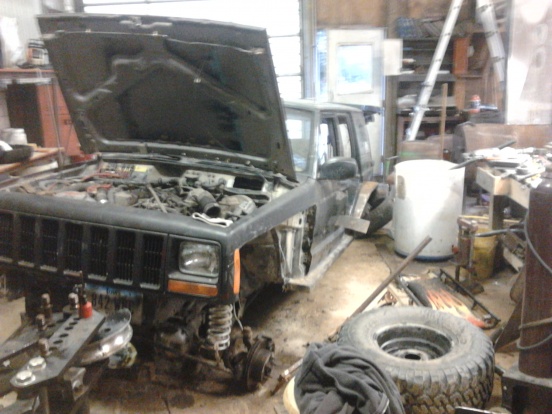

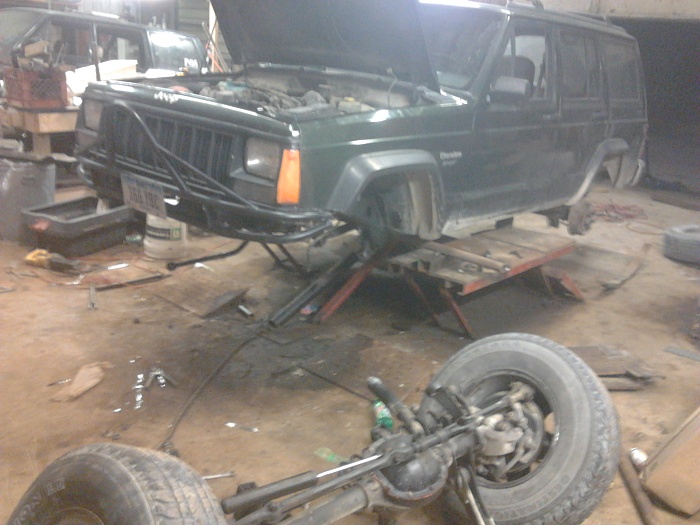

well in preparation for this i need to get all the parts off this one. this one has alot of travel and is kinda tall so i have to use high lift jacks to get it up high enough to take wheels off ground. mine works good but i borrowed a buddies that he hasnt used in awhile. Fail.

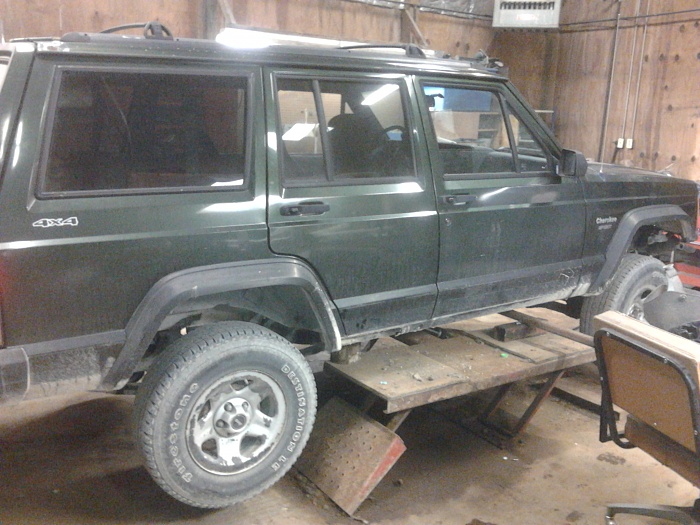

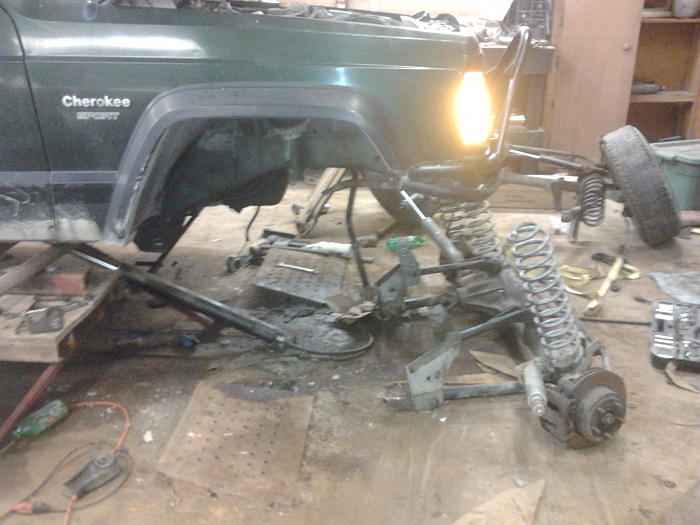

any way. quick way to lower a jeep
Attachment 66702
Im tired of driving around the station wagon looking xj for a dd so im guna put the 6.5in lift of this pig on my dd. (hopefully next weekend)
well in preparation for this i need to get all the parts off this one. this one has alot of travel and is kinda tall so i have to use high lift jacks to get it up high enough to take wheels off ground. mine works good but i borrowed a buddies that he hasnt used in awhile. Fail.
any way. quick way to lower a jeep
Attachment 66702
Thread Starter
CF Veteran
Joined: Jan 2010
Posts: 2,059
Likes: 1
From: Indianola IOWA
Year: 1992
Model: Cherokee
Engine: 4.0
Specs.

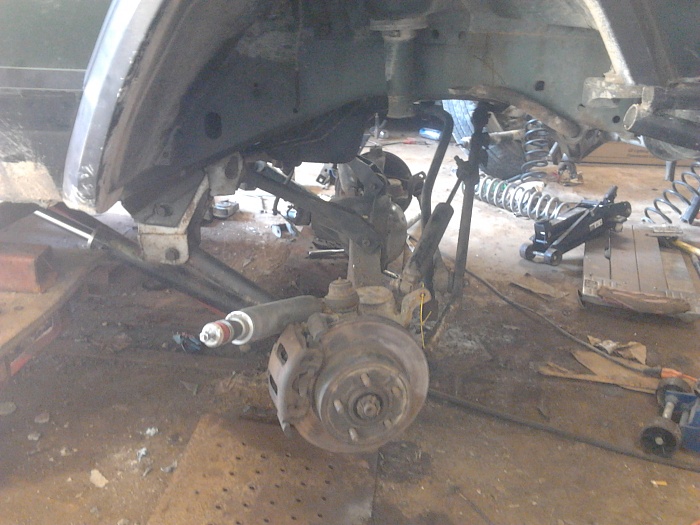

FRONT
6.5in rc coils
custom control arm drop brackets
custom control arms
drop pitman arm
IRO doubleshear track bar
Chevy 1/2ton brake lines (6in longer)
re-enforced control arm mounts
Larger u-joint axles
REAR
Bastard pack
with 2in lift shackle (about 6in total lift)
no sway bar
dodge dakota rear brake line (7in longer)
Tires are 33x12.5x15 hankook T-34s
wheels are crager soft 8s with 4in bs
FRONT
6.5in rc coils
custom control arm drop brackets
custom control arms
drop pitman arm
IRO doubleshear track bar
Chevy 1/2ton brake lines (6in longer)
re-enforced control arm mounts
Larger u-joint axles
REAR
Bastard pack
with 2in lift shackle (about 6in total lift)
no sway bar
dodge dakota rear brake line (7in longer)
Tires are 33x12.5x15 hankook T-34s
wheels are crager soft 8s with 4in bs
Last edited by posjeepxj; Sep 28, 2011 at 09:17 PM.
Seasoned Member
Joined: Sep 2010
Posts: 416
Likes: 0
From: CT
Year: 1998
Model: Cherokee
Engine: 4.0
the best budget boost EVER!
how'd u reinforce the drop brackets? i've got some used RC ones without braces... im thinking to just get some 1/4" scrap throw something together...
how'd u reinforce the drop brackets? i've got some used RC ones without braces... im thinking to just get some 1/4" scrap throw something together...
Thread Starter
CF Veteran
Joined: Jan 2010
Posts: 2,059
Likes: 1
From: Indianola IOWA
Year: 1992
Model: Cherokee
Engine: 4.0
i re enforced the axle side.
Those are custom built drop brackets. there not guna brake. i know the builder/welder quite well

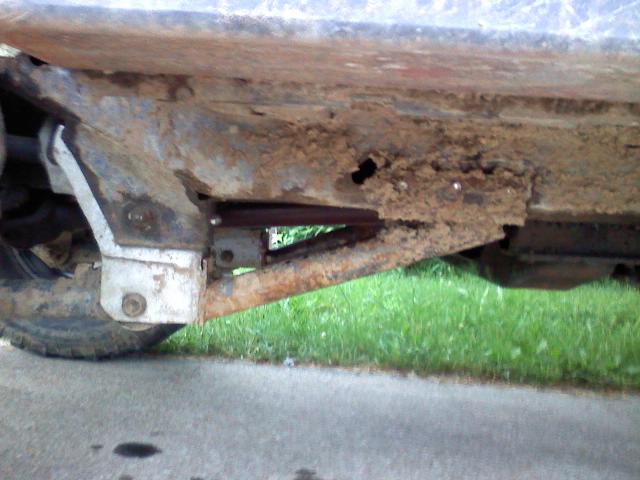

and as far as back braces i doubt if i put any on this jeep. my other one i built slides
Those are custom built drop brackets. there not guna brake. i know the builder/welder quite well
and as far as back braces i doubt if i put any on this jeep. my other one i built slides
Last edited by posjeepxj; Sep 28, 2011 at 10:30 PM.
Seasoned Member
Joined: Sep 2010
Posts: 416
Likes: 0
From: CT
Year: 1998
Model: Cherokee
Engine: 4.0
yea, thats what i had in mind... something angled from the bottom of the brackets to the crossmember
not so much worried about the drop brackets bustin apart, but the 'frame' side factory lower arm mounts look to be the weak link in dropping the CAs
not so much worried about the drop brackets bustin apart, but the 'frame' side factory lower arm mounts look to be the weak link in dropping the CAs
CF Veteran
Joined: Oct 2010
Posts: 1,889
Likes: 2
From: Long Island N.Y.
Year: 1999
Model: Cherokee
Engine: I6 4.0
Def best budget boost can you give more specs on the brake lines i went into autozone to get some and they wanted the year engine and everything how did you order them
Member
Joined: Jan 2011
Posts: 127
Likes: 0
From: Riverside, California
Year: 1988
Model: Cherokee
Engine: 4.0 Low Output
Thread Starter
CF Veteran
Joined: Jan 2010
Posts: 2,059
Likes: 1
From: Indianola IOWA
Year: 1992
Model: Cherokee
Engine: 4.0
yj for rear up to 4in. 97 dakota rear for 4+. dont think engine matters
front 96-98 chevy .5 ton with diesel engine. didnt make many but it will pull up others and they almost always have in stock
i always buy new flare ends and instead of tring to unbolt them i always just cut and flare the new on. 95% of the tinme you have to anyway so just do it from the get go
front 96-98 chevy .5 ton with diesel engine. didnt make many but it will pull up others and they almost always have in stock
i always buy new flare ends and instead of tring to unbolt them i always just cut and flare the new on. 95% of the tinme you have to anyway so just do it from the get go
!
Senior Member
Joined: Mar 2009
Posts: 818
Likes: 0
From: Levittown P.A.
Year: 1992
Model: Cherokee
Engine: 4.0L H/O
so you basically did a whole new build in 2 posts haha. i mean, really just swapped out the jeep on top of the built stuff... but hey, it looks pretty right?
