Whats the advantages of crossover steering?



It can give you better steering control during articulation.

It has better geometry in general(no tie rod roll or crossover binding, no dead spots).

Can accommodate for higher lifts without need for drop pitman arms.

Of course your trac/panhard bar would also need to be relocated in parallel with the draglink...



I never have understood what the draglink is

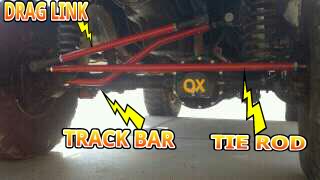

It's basically the linkage that comes off the pitman arm.





Alright so if i went with crossover steering what do i need to do with my tracbar



What? Doesn't the trac bar stay where its at???? You can make new mounts and move it up but installing crossover doesn't mean moving the trac bar. .



You will need an adjustable track bar.
I recommend upgrading the mounts too.

What crossover setup are you looking to go with?



It could. Mine is staying right where it's at, unless the bumpsteer is crazy.
It really depends on the lift and crossover steering setup you decide to go with. If you went with a conventional crossover under the knuckle setup your trac bar can stay if it's parallel to the draglink. If you are doing a crossover setup running OTK chances are you will have bumpsteer and need to relocate the trac bar in line with draglink.
I will be trying OTK and leaving trac bar in place, we'll see what happens.



a few items for sale

h/o arb compressor w/air up kit used once $180
jerry can 1 dent never had gas in it $20
(2) 10" custom sub box (scraches, ect,) $40
5' firestik $10
tomken laser cut grill $40
tail light housings good condition $20
jrc steering box plate (wrangler box upgrade) $15
(4) kc plastic covers free come get em
and for the hunters cabellas scent lock fanny (no water bottle) $40
all obo text 602-8zero9-18three7



i cant figure out why my photos wont post...here is the link to the album if you are interested

http://s1186.photobucket.com/albums/z377/cptmohog/jeep/



also to gauge interest: I have a rear bumper/swing gate from the guy that sells them here locally on craigs list for $400

his finsh was crap (I redid my front from him) I had this modified to include a jerry can carrier, and cb antena mount. will fit a 33" spare. needs to have finish stripped, new welds ground, and refinished. was going to ask $375 after I had done all this, but if someone is interested in doing the work themselves, I will sell for $275 (includes jerry can)

it will take you a couple hours of grinding and at least 2 sanding discs, and then about $50 of bedliner or $80 powder coat to finish it!

lmk, I plan on starting the project this weekend pics available upon request Sean 602-8zero9-18three7



Anyone know a good tough brand for 2 inch spacers?



Good to see there is a good representation of AZ on this site - I'm in the west valley



Headed to Tucson, AZ in october. Pretty excited. Looks like yall do alot of rock crawlin/trail ridin?
