Old Jan 7, 2011 | 04:07 PM
  #2671
Rowan Lake's Avatar
Newbie

Joined: Dec 2010
Posts: 17
Likes: 0
From: Utah
Year: 92
Model: Cherokee
Engine: 4.0

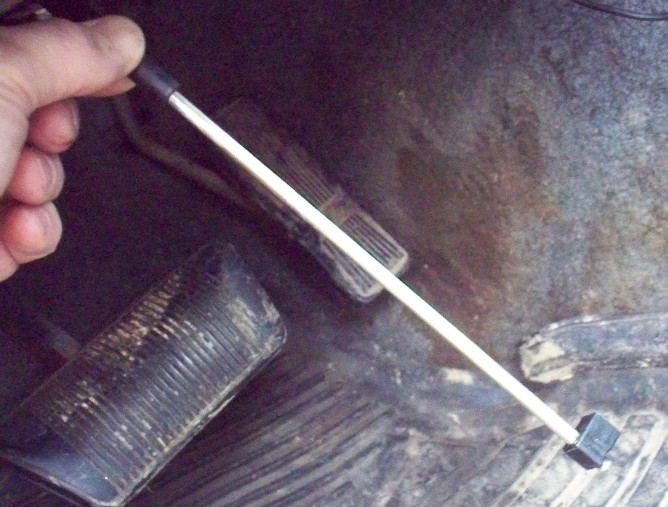

Default An unused linkage cable of unknown origin? PIX added

I recently acquired a 91 Limited and there is a plethora of added-on wiring under the dash that is not hooked to anything. I took the lower panel off to get a better look and see what was actually needed and there was a linkage cable of some sort that seems to go into the console at the front. It was not connected to anything and there was nothing to connect it to that I can see. It has a bit of "spring-loaded-ness" at the end and a plastic connector molded to the end. The steering wheel still locks fine and the auto trans linkage works as it should as far as I can tell.

Any idea what this cable is?
Yeah, I could pull the console and maybe figure it out, but there are extra wires, lights, and gauges installed in the console on this rig and I don't want to mess with it until it gets a bit warmer outside.

TIA
Attached Thumbnails XJ Ask the Question Thread-jeep015.jpg
Attached Images

Last edited by Rowan Lake; Jan 7, 2011 at 06:21 PM.
Old Jan 7, 2011 | 06:46 PM
  #2672
daski's Avatar
Junior Member

Joined: Nov 2010
Posts: 49
Likes: 0
From: salem va
Year: 98
Model: Cherokee
Engine: 4.0L I6
Default

Originally Posted by dukie564
take a trip to your local auto parts store - they sell replacement bushings. Measure the inside diameter of the shock eye before you go.

ha ha...i should have done that insted of relying on the net(which i could only find non oem spicfic bushings)...thanks
Old Jan 7, 2011 | 08:08 PM
  #2673
19kiloxj's Avatar
CF Veteran

Joined: Apr 2010
Posts: 1,053
Likes: 0
From: fallon, nv
Year: 1988
Model: Cherokee
Engine: 4.0
Default

ok so im trying to find out what shock absorbers i should use on my 90 mj 4x4 4.0 5-speed with a dana 44 posi... any suggestions, it is stock height but sees alot of off-road time, im looking on amazon right now but im not sure what to go with... any thoughts?
Old Jan 7, 2011 | 08:14 PM
  #2674
ZachsXJ's Avatar
CF Veteran

Joined: Sep 2009
Posts: 4,145
Likes: 0
Default

Originally Posted by 19kiloxj
ok so im trying to find out what shock absorbers i should use on my 90 mj 4x4 4.0 5-speed with a dana 44 posi... any suggestions, it is stock height but sees alot of off-road time, im looking on amazon right now but im not sure what to go with... any thoughts?
The general rule is that most white bodied shocks are all the same worthless ****.

I've heard good things about monroe and doetsch tech shocks, so those would be your best bet without breaking the bank.

If you want a nice ride, get some RE Mono Tubes or OME Nitrochargers.

If you're really feeling spendy you can always get a set of Bilstein 5150s
Old Jan 7, 2011 | 08:19 PM
  #2675
19kiloxj's Avatar
CF Veteran

Joined: Apr 2010
Posts: 1,053
Likes: 0
From: fallon, nv
Year: 1988
Model: Cherokee
Engine: 4.0
Default

im thinking of these to be real honest....

Amazon.com: Skyjacker N8025 Nitro Shock W/Red Boot: Automotive Amazon.com: Skyjacker N8025 Nitro Shock W/Red Boot: Automotive
Old Jan 7, 2011 | 08:20 PM
  #2676
19kiloxj's Avatar
CF Veteran

Joined: Apr 2010
Posts: 1,053
Likes: 0
From: fallon, nv
Year: 1988
Model: Cherokee
Engine: 4.0
Default

along with this to compliment it...

Amazon.com: AIR LIFT 59503 Ride Control Rear Air Spring Kit: Automotive Amazon.com: AIR LIFT 59503 Ride Control Rear Air Spring Kit: Automotive
Old Jan 7, 2011 | 08:22 PM
  #2677
19kiloxj's Avatar
CF Veteran

Joined: Apr 2010
Posts: 1,053
Likes: 0
From: fallon, nv
Year: 1988
Model: Cherokee
Engine: 4.0
Default

and if i got the money these...

Amazon.com: Wheel Spacer Kit 1-1/4" Thick 5 X 4.5 Inch Spidertrax 1984-2006 Jeep Wrangler YJ, TJ, Unlimited, Cherokee XJ # WSH002: Automotive Amazon.com: Wheel Spacer Kit 1-1/4" Thick 5 X 4.5 Inch Spidertrax 1984-2006 Jeep Wrangler YJ, TJ, Unlimited, Cherokee XJ # WSH002: Automotive
Old Jan 7, 2011 | 11:53 PM
  #2678
nemanjaguitar's Avatar
Newbie

Joined: Dec 2010
Posts: 28
Likes: 0
From: Indiana
Year: 2000
Model: Cherokee
Engine: 4.0
Default

Ok, so I read all kinds of opinions on seafoaming.. I wnated to ask you guys how much seafoam would ou pour in the crankcase (oil)? and also how long would you run the engine like that before an oil change? Some say 30 miles, other say 300...
Thanks!
Old Jan 8, 2011 | 12:38 AM
  #2679
19kiloxj's Avatar
CF Veteran

Joined: Apr 2010
Posts: 1,053
Likes: 0
From: fallon, nv
Year: 1988
Model: Cherokee
Engine: 4.0
Default

Originally Posted by nemanjaguitar
Ok, so I read all kinds of opinions on seafoaming.. I wnated to ask you guys how much seafoam would ou pour in the crankcase (oil)? and also how long would you run the engine like that before an oil change? Some say 30 miles, other say 300...
Thanks!

i dont use it in the crank case, i induce thru the vacuum hose off of the fuel rail, slowly induce 1/3 can then shut off for 5-10 min, then let it run for about the same and do it all over, i just did two cans tonight
Old Jan 8, 2011 | 06:58 AM
  #2680
thundaluvin's Avatar
Seasoned Member

Joined: Dec 2010
Posts: 283
Likes: 0
From: Davison, MI
Year: 1988
Model: Cherokee
Engine: 4.0
Default

Originally Posted by nemanjaguitar
Ok, so I read all kinds of opinions on seafoaming.. I wnated to ask you guys how much seafoam would ou pour in the crankcase (oil)? and also how long would you run the engine like that before an oil change? Some say 30 miles, other say 300...
Thanks!
Myself I usually use approx half a can of seafoam in the crankcase. run it for about 30 miles, change the oil and filter, and then I use royal purple 10w30. My preference, it's expensive but it works like no other oil I've ever used.
Old Jan 8, 2011 | 12:26 PM
  #2681
19kiloxj's Avatar
CF Veteran

Joined: Apr 2010
Posts: 1,053
Likes: 0
From: fallon, nv
Year: 1988
Model: Cherokee
Engine: 4.0
Default

ok so just wondered if i could use my new tps for my 88 xj, in my 90 mj, there both 4.0 5-speeds...
Old Jan 8, 2011 | 01:06 PM
  #2682
ZachsXJ's Avatar
CF Veteran

Joined: Sep 2009
Posts: 4,145
Likes: 0
Default

Originally Posted by 19kiloxj
ok so just wondered if i could use my new tps for my 88 xj, in my 90 mj, there both 4.0 5-speeds...
yeah itll work in both jeeps.

As far as shocks go, I wouldn't get those.

They're cheap and generally ride like **** on lifted Jeeps.

Go with a nicer shock, you won't regret it.
Old Jan 8, 2011 | 05:27 PM
  #2683
The91XJ's Avatar
Senior Member

Joined: Jul 2009
Posts: 735
Likes: 1
From: Utah
Year: 1999
Model: Cherokee
Engine: I6 4.0L
Default

Do i need an alignment if i only lift the rear? I had it aligned with an AAL but then got full leaf packs that gave another 2-3".. so should i get it aligned again?
Old Jan 8, 2011 | 07:26 PM
  #2684
coilysammy's Avatar
Newbie

Joined: Jan 2011
Posts: 27
Likes: 0
Model: Cherokee
Default Another Newb with an idle problem.

Hi guys,

I am new to the forum and new to jeeps as well. I just bought a 99 cherokee sport with the 4.0L and Auto trans. It has 194k on it and has a really rough idle and sometimes stalls. It runs great when you are on the gas. I drove it to the auto parts store last night and did a decent burnout so it's not down on power, just won't idle correctly. I cleaned the IAC, put in new plugs, checked for vaccum leaks and fixed one (now the heater controls work!), I took the map sensor off and applied some vaccum to it and got the idle to change with different amounts of vaccum so I'm assuming it's probably ok. I unplugged the 02 sensor and nothing really changed so I'm assuming it might be bad but I thought there should probably be a check engine light if it was? What do you think I should check next? Any help will be very much appreciated.
Old Jan 9, 2011 | 11:05 AM
  #2685
Skipper's Avatar
Senior Member

Joined: May 2010
Posts: 530
Likes: 0
From: Nevada City, California
Year: 2K
Model: Cherokee
Engine: I6 with Mustang fuel injectors; 60mm Throttle Body;
Default Question

Originally Posted by thundaluvin
Myself I usually use approx half a can of seafoam in the crankcase. run it for about 30 miles, change the oil and filter, and then I use royal purple 10w30. My preference, it's expensive but it works like no other oil I've ever used.
Why do you like Royal Purple and what have you noticed to be the difference between RP and Synthetic oils or regular oils? I use synthetic oil and the over sized Mobile 301 oil filter.
