wiring help...
#1
Senior Member
Thread Starter
Join Date: Jan 2010
Location: Westminster Colorado
Posts: 613
Likes: 0
Received 1 Like
on
1 Post
Year: 1991 (2-door)
Model: Cherokee
Engine: 4.0L
wiring help...

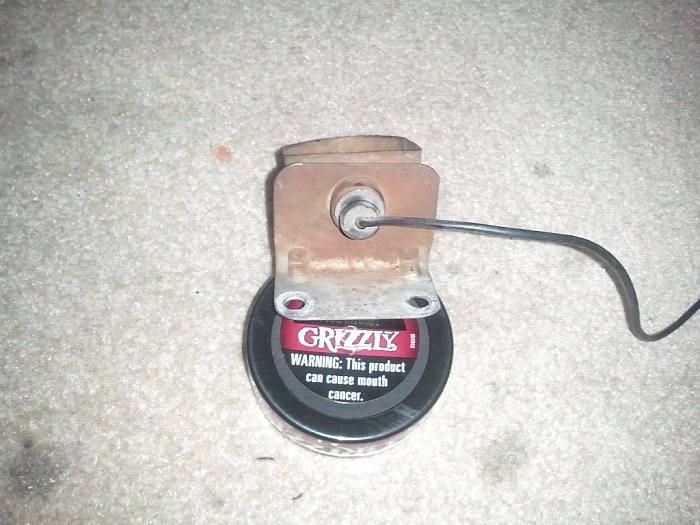

First off I'm sorry for the poor quality pics but my computer is on the fritz. So everything was done from my phone.

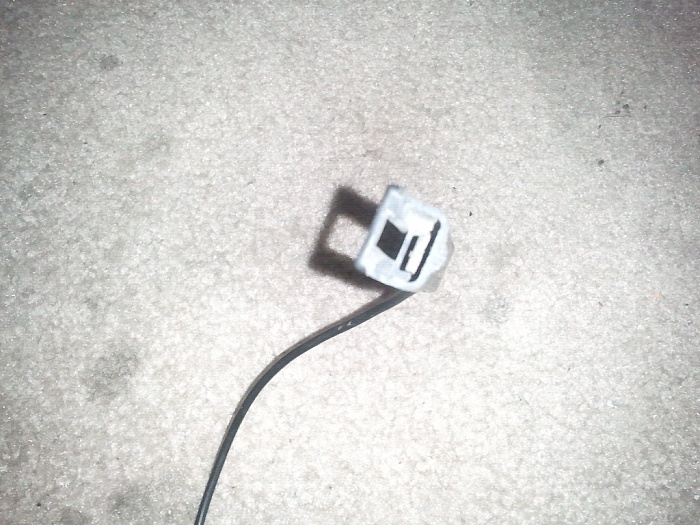

I'm trying to find out how I would wire this hood light up. It was on my Jeep when I bought it and there isn't a connection anywhere for it. I was just gonna wire it up to a fusable link and switch but I'm only seeing one wire coming from the light and I'm completely lost. Does anyone know how to go about this? Also, how would I know if this is a mercury activated light? Since I don't know how to wire it up, I can't just hook it up and see for all you who have to reply with a smart **** answer.
I'm trying to find out how I would wire this hood light up. It was on my Jeep when I bought it and there isn't a connection anywhere for it. I was just gonna wire it up to a fusable link and switch but I'm only seeing one wire coming from the light and I'm completely lost. Does anyone know how to go about this? Also, how would I know if this is a mercury activated light? Since I don't know how to wire it up, I can't just hook it up and see for all you who have to reply with a smart **** answer.
#2
CF Veteran
Join Date: Mar 2009
Location: Tenn. and Mich.
Posts: 28,068
Likes: 0
Received 6 Likes
on
6 Posts
Year: 2004
Model: Grand Cherokee
Engine: 4.7L V8
The wire is the positive and the bracket is the ground. Clean it good to get a good connection. To find out if it's a mercury switch before mounting it, hook 12V to the wire and a ground wire to the bracket while tilting it. JMO
#4
Senior Member
Thread Starter
Join Date: Jan 2010
Location: Westminster Colorado
Posts: 613
Likes: 0
Received 1 Like
on
1 Post
Year: 1991 (2-door)
Model: Cherokee
Engine: 4.0L
I got it figured out and of course it's a bleepin' merc activated light. So I am trashing it.
Thanks for the help men.
Do either of you know anything about the 2 metal cables that are in front and back of the radiator? Would it be ok to chop one off so my new electric fan wont interfere with it. Just curious.
Thanks for the help men.
Do either of you know anything about the 2 metal cables that are in front and back of the radiator? Would it be ok to chop one off so my new electric fan wont interfere with it. Just curious.
#5
Member
Id never chop a cable or interfere with whatever its running, always safer to run a new line
j ust
e xpect
e lectrical
p roblems
j ust
e xpect
e lectrical
p roblems
#6
Senior Member
Thread Starter
Join Date: Jan 2010
Location: Westminster Colorado
Posts: 613
Likes: 0
Received 1 Like
on
1 Post
Year: 1991 (2-door)
Model: Cherokee
Engine: 4.0L
The materials more like metal tie wire and there's two seperate bands that wrap around the top and bottom of the radiator. I think its banding to hold the top plate and lower plate sandwiched to all the cores in between them I'm not 100% sure though.
I started a thread on it yesterday but havent got one response. I don't have the link for it but if you find it and post, maybe other preps will too
I started a thread on it yesterday but havent got one response. I don't have the link for it but if you find it and post, maybe other preps will too
Trending Topics
#8
Junior Member
Join Date: Mar 2011
Location: roanoke, va
Posts: 52
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1996
Model: Cherokee
Engine: 4.0 l6
They are just pieces of strap to keep fan and electrical fan from hitting your radiator... I wouldn't take them out but so long as your new electric fan has plenty of clearance from the radiator with them out then it's fine
