Windshield Gasket

Thread Tools

Search this Thread

Old Nov 8, 2019 | 09:42 AM
  #1
theincrediblexj's Avatar
Thread Starter
Newbie

Joined: Nov 2019
Posts: 6
Likes: 2
Model: Cherokee (XJ)
Default Windshield Gasket

I've got a 2000 XJ that needed repainted, so naturally I went with bed liner. To do my prep work I had to remove a rubber seal that goes around the windshield and rear glass. I have looked all over the internet and can't find replacement rubbers for the life of me. Anyone have any idea where to get some?

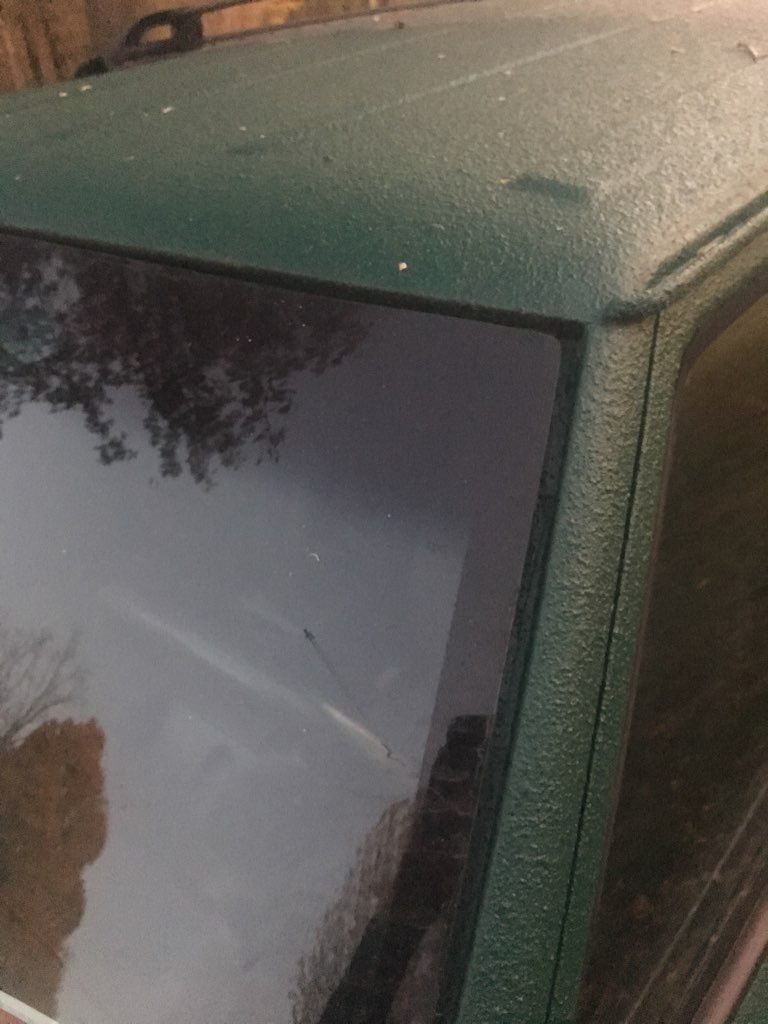

The gap around the window originally had a rubber seal, but it was in pretty bad shape so there's no way to reuse it


Reply
Old Nov 8, 2019 | 10:05 AM
  #2
Ralph77's Avatar
CF Veteran
10 Year Member

Joined: Oct 2015
Posts: 7,517
Likes: 1,626
Year: 2000
Model: Cherokee (XJ)
Default

Front is no problem. 55235391AC
A Mopar one probably not but aftermarket is available.

https://www.autopartswarehouse.com/a...own/55235391ab

Shop around you might do better.

Rear is not happening. 55175366AD
No Mopar ones I can find and it appears nobody makes a aftermarket one.

But you are not getting the front one on anyway. It wraps around the glass. Pretty sure the it is placed around the glass then laid in all in one piece after you lay down a bead of gunk.
I think the back operates the same. So if so you will have the same problem.

Guessing you could get creative some with some universal molding just laying it on top.
Reply
Old Nov 8, 2019 | 10:39 AM
  #3
318SixPack's Avatar
CF Veteran
5 Year Member
Liked
Loved
Community Favorite

Joined: Aug 2019
Posts: 1,601
Likes: 226
From: East Tennessee
Year: 1996
Model: Cherokee (XJ)
Engine: 242 cui
Default

Originally Posted by Ralph77
Front is no problem. 55235391AC
A Mopar one probably not but aftermarket is available.

https://www.autopartswarehouse.com/a...own/55235391ab

Shop around you might do better.

Rear is not happening. 55175366AD
No Mopar ones I can find and it appears nobody makes a aftermarket one.

But you are not getting the front one on anyway. It wraps around the glass. Pretty sure the it is placed around the glass then laid in all in one piece after you lay down a bead of gunk.
I think the back operates the same. So if so you will have the same problem.

Guessing you could get creative some with some universal molding just laying it on top.
When I had my front windshield replaced about 16 years ago, they cut the original off all the way around, pulled the windshield, laid down a bead black urethane (iirc) sealer, installed the glass, and stuck the outward side of the gasket back in. Seems to be holding up well as I can tell.
Reply
Old Nov 8, 2019 | 10:50 AM
  #4
Ralph77's Avatar
CF Veteran
10 Year Member

Joined: Oct 2015
Posts: 7,517
Likes: 1,626
Year: 2000
Model: Cherokee (XJ)
Default

Originally Posted by 318SixPack
When I had my front windshield replaced about 16 years ago, they cut the original off all the way around, pulled the windshield, laid down a bead black urethane (iirc) sealer, installed the glass, and stuck the outward side of the gasket back in. Seems to be holding up well as I can tell.
Well I know for a fact that the factory front one wraps around the glass. Sounds like the installer got creative with the molding on the front window.
Oh wait. You talking about a '96 down?
I think the set up for the front window is different then '97 and up.
Almost positive the back window is.
Reply
Old Nov 8, 2019 | 11:41 AM
  #5
BlackXJay's Avatar
Seasoned Member

Joined: Oct 2015
Posts: 406
Likes: 25
Model: Cherokee
Default

97+ I just replaced the front last year and yes 100% positive the rubber wraps around the glass and has to be laid back in. Just make sure you take it to a good glass place bc they have to remove the original glass and there is always a chance of breaking it, in which case you will have to purchase a new window.
Reply
Old Nov 8, 2019 | 05:25 PM
  #6
awg's Avatar
awg
CF Veteran
5 Year Member
Liked
Loved
Community Favorite

Joined: Mar 2016
Posts: 3,816
Likes: 725
Year: 96
Model: Cherokee (XJ)
Engine: 4.0
Default

Originally Posted by BlackXJay
97+ I just replaced the front last year and yes 100% positive the rubber wraps around the glass and has to be laid back in. Just make sure you take it to a good glass place bc they have to remove the original glass and there is always a chance of breaking it, in which case you will have to purchase a new window.
I have done front and rears

the front gasket is as described, it is placed around the screen and laid on a bead of urethane

In my case, some previous owner had done as someone above said, that is just reuse the front face of the old seal, and stick the glass to the bead...this was leaking

to cut the bead, a good thing is a steel wound guitar string, like an E bass,~ 0.40" OD..poke it through the corners then using leather gloves,
drag it round to cut the bead. Its hard work, but wont break the glass..an XJ front glass is cheap as dirt anyway ~$100

for the rear, the glass is R&R with no sealant..use a thin tough cord between the seal and glass, lube it and the glass will come out easy, then just pull the seal if needed.

I obtained a new front seal, but re-used the rear, it was in good condition

@ the OP, your vehicle will be almost invisible on the road in that color. I would never drive it without lights on

Last edited by awg; Nov 8, 2019 at 05:29 PM.
Reply
Old Nov 8, 2019 | 07:28 PM
  #7
BlueRidgeMark's Avatar
CF Veteran
10 Year Member
Liked
Loved
Community Favorite

Joined: May 2012
Posts: 7,965
Likes: 964
From: Lost in the wilds of Virginia
Year: 1998 Classic (I'll get it running soon....) and 02 Grand
Model: Cherokee (XJ)
Engine: 4.0
Default

Originally Posted by Ralph77
But you are not getting the front one on anyway. It wraps around the glass. Pretty sure the it is placed around the glass then laid in all in one piece after you lay down a bead of gunk.
That is exactly right. I watched it done to my XJ a few months ago, and I don't see any way you could get a new seal in there any other way.

The good news is, it's not hard to do yourself. Take out the windshield, clean things up, and put it back in with the new moulding.
Reply
Old Nov 9, 2019 | 12:43 AM
  #8
Ralph77's Avatar
CF Veteran
10 Year Member

Joined: Oct 2015
Posts: 7,517
Likes: 1,626
Year: 2000
Model: Cherokee (XJ)
Default

I wish I paid more attention to the hatch window.
When I swapped over to privacy glass in my '00 I did the rear doors and the cargo area glass.
I had my glass guy do the hatch glass.
I did not think much about it at the time but he told me I had to source the molding.
Which I did. Just went and saw my guys at the Jeep Dealership and they ordered one for me.
I never really looked at it. Just gave it to my guy, he came to the store, and did it in the parking lot.
So about a month ago some posts they can't find the molding.
Thinking I just bought one started poking around and could not either.
Even talked to the guys at the Dealership and they said there was not one available anywhere.
Turns out I bought it longer ago then I thought when I checked my files. In 2017.
And since nobody seems to make an aftermarket one for the rear I wonder what you are supposed to do.
So does it wrap around like the front?
Or is it just laid on top in the channel?
Thinking if it is the second going to have to use some sort of universal one.
Reply
Old May 18, 2024 | 10:54 PM
  #9
Dave Maloney's Avatar
Newbie
5 Year Member
Liked

Joined: Apr 2019
Posts: 11
Likes: 1
From: Saskatchewan, Canada
Year: 1997
Model: Cherokee (XJ)
Engine: 4.0
Default

Originally Posted by theincrediblexj
I've got a 2000 XJ that needed repainted, so naturally I went with bed liner. To do my prep work I had to remove a rubber seal that goes around the windshield and rear glass. I have looked all over the internet and can't find replacement rubbers for the life of me. Anyone have any idea where to get some?

The gap around the window originally had a rubber seal, but it was in pretty bad shape so there's no way to reuse it


Try these guys. https://weatherstripdepot.com/collec...atherstripping
