What rear end? Need help!
#1
Junior Member
Thread Starter
Join Date: Dec 2011
Location: Colorado
Posts: 92
Likes: 0
Received 0 Likes
on
0 Posts
Year: 89
Model: Cherokee(XJ)
Engine: 4.8L V8
What rear end? Need help!

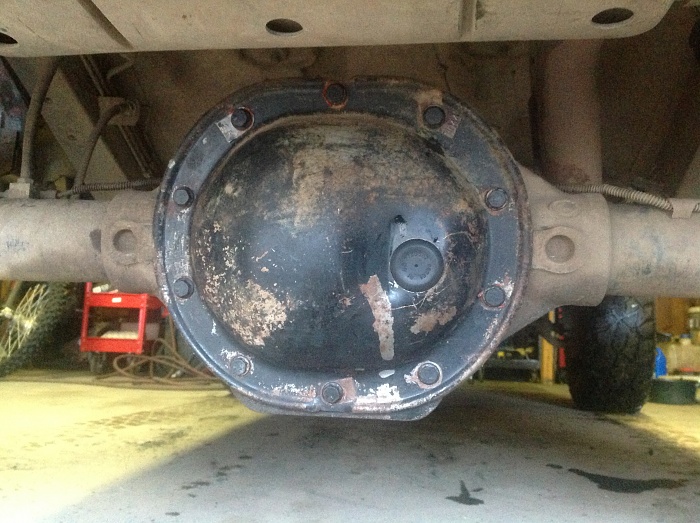

I've had this Cherokee for over 6 years now. As far as I can tell from my research, I have a Chrysler 8.25 rear axle. Turns out, when I got parts for my axle, the 8.25 was not an axle option for the year of my Cherokee.(89) I bought axle seals for an 8.25, but they are not the same as what's in my axle. My parts supplier and i are having a hard time figuring out what axle it is. I gave them the number off the axle seal that is in my axle to try to figure out what axle it is, all they can find is from a 90s Dakota. It has a Chrysler symbol cast in the housing.
I pulled the shafts, and it is 27 splines.
Can someone tell me what it is, and maybe what year?
Oh there are a couple small tags bolted to the cover. 1 says 3.5, the other has a 3044 on it.
I pulled the shafts, and it is 27 splines.
Can someone tell me what it is, and maybe what year?
Oh there are a couple small tags bolted to the cover. 1 says 3.5, the other has a 3044 on it.
Last edited by UglyDuck; 03-01-2014 at 07:30 PM.
#3
CF Veteran

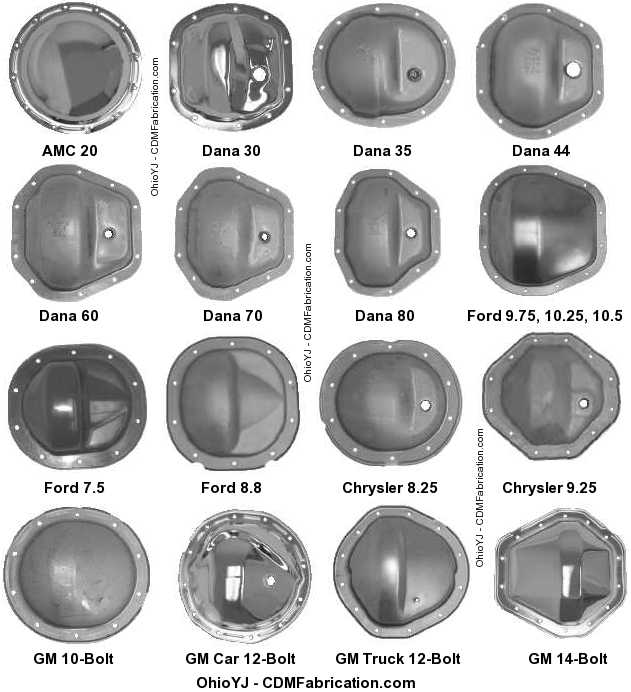

If its an 89, its possible its a dana 35... I have an 87 and its orginal is a dana 35, which of course is not the best out there... but mine is doing fine for me now... he's a pictures on diffs.
#7
CF Veteran
According to Quadratec all 8.25's from '91 to '01 take the same seal.
Rear Axle Oil Seal
For 91-01 Jeep® Cherokee XJ with Chrysler 8.25" Rear Axle
Quadratec Part No: 52420.23
Manufacturer Part No: 4137426
Rear Axle Oil Seal
For 91-01 Jeep® Cherokee XJ with Chrysler 8.25" Rear Axle
Quadratec Part No: 52420.23
Manufacturer Part No: 4137426
Trending Topics
#9
Seasoned Member
Join Date: Jul 2012
Location: New Milford, CT
Posts: 484
Likes: 0
Received 3 Likes
on
3 Posts
Year: 1999
Model: Cherokee
Engine: 4.0
That's a 27 spline 8.25.
That lip on the bottom of the diff cover is a dead giveaway it's an 8.25.
Look a little more after that. See two little humps like rhino horns?
That lip on the bottom of the diff cover is a dead giveaway it's an 8.25.
Look a little more after that. See two little humps like rhino horns?
#10
Junior Member
Thread Starter
Join Date: Dec 2011
Location: Colorado
Posts: 92
Likes: 0
Received 0 Likes
on
0 Posts
Year: 89
Model: Cherokee(XJ)
Engine: 4.8L V8
I was able to get a number off a seal, and tried to get the parts person to find what vehicals
Take that seal. They came up with early 90s dodge Dakota. Anyone know if they fit with no mods? All the welds and everything look factory. No grinding or old welds.
Take that seal. They came up with early 90s dodge Dakota. Anyone know if they fit with no mods? All the welds and everything look factory. No grinding or old welds.
Last edited by UglyDuck; 03-02-2014 at 08:26 PM.
