what is this for?
12-15-2009, 03:30 PM
#2
Seasoned Member
Join Date: Dec 2009
Location: Wichita, KS
Posts: 429
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1999
Model: Cherokee
Engine: 4.0l I6

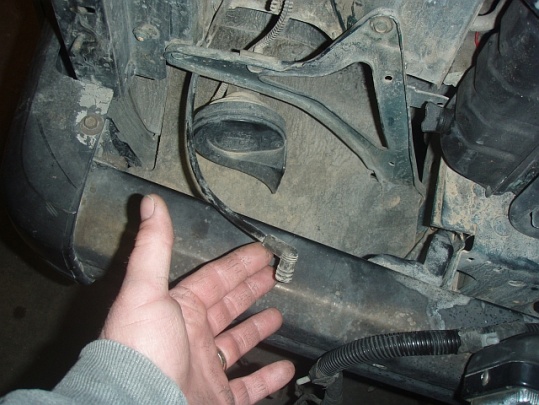

I have been wanting to know the same thing. I have 2 vacuum lines ran there and they are connected to this black thing that looks like a small football. WHAT is that? I havent traced the lines yet as I have QUITE a few more things that are of more importance. That is behind the passenger side bumper under the lights.
His picture is missing the black piece that it connects to and the second line. Also the black piece that I am talking about has 2 slots for 2 other vacuum lines to come out of but I am missing those and have no clue where they would go.
His picture is missing the black piece that it connects to and the second line. Also the black piece that I am talking about has 2 slots for 2 other vacuum lines to come out of but I am missing those and have no clue where they would go.
Last edited by mycherokee; 12-15-2009 at 03:33 PM.
12-15-2009, 03:36 PM
#3
"CF Moderator"
Join Date: Sep 2008
Location: N.J. Shore Area
Posts: 3,045
Likes: 0
Received 2 Likes
on
2 Posts
Year: 1994
Model: Cherokee
Engine: l6 HO
I have been wanting to know the same thing. I have 2 vacuum lines ran there and they are connected to this black thing that looks like a small football. WHAT is that? I havent traced the lines yet as I have QUITE a few more things that are of more importance. That is behind the passenger side bumper under the lights.
His picture is missing the black piece that it connects to and the second line. Also the black piece that I am talking about has 2 slots for 2 other vacuum lines to come out of but I am missing those and have no clue where they would go.
His picture is missing the black piece that it connects to and the second line. Also the black piece that I am talking about has 2 slots for 2 other vacuum lines to come out of but I am missing those and have no clue where they would go.
12-15-2009, 03:39 PM
#4
Seasoned Member
Join Date: Dec 2009
Location: Wichita, KS
Posts: 429
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1999
Model: Cherokee
Engine: 4.0l I6
OHHH so would that explain why when I toggle my switch only defrost works? LOL no vent blow?? So on the opposite end there should be 2 more vacuum lines coming out? And where would they go?
12-15-2009, 03:47 PM
#5
CF Veteran
Join Date: Sep 2009
Location: NC
Posts: 5,376
Likes: 0
Received 0 Likes
on
0 Posts
Model: Cherokee
I have been wanting to know the same thing. I have 2 vacuum lines ran there and they are connected to this black thing that looks like a small football. WHAT is that? I havent traced the lines yet as I have QUITE a few more things that are of more importance. That is behind the passenger side bumper under the lights.
His picture is missing the black piece that it connects to and the second line. Also the black piece that I am talking about has 2 slots for 2 other vacuum lines to come out of but I am missing those and have no clue where they would go.
His picture is missing the black piece that it connects to and the second line. Also the black piece that I am talking about has 2 slots for 2 other vacuum lines to come out of but I am missing those and have no clue where they would go.
12-15-2009, 03:53 PM
#6
CF Veteran
Join Date: Jul 2009
Location: Chico,ca
Posts: 2,158
Likes: 0
Received 10 Likes
on
9 Posts
Year: 89
Model: Cherokee
Engine: 4.0
iw will also cause your engine to run rough and idle high,the lines go to the climate controls,cruise control and front axle if you have the vacuum operated axle.
12-15-2009, 03:53 PM
#7
Seasoned Member
Join Date: Dec 2009
Location: Wichita, KS
Posts: 429
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1999
Model: Cherokee
Engine: 4.0l I6
Can someone take some pictures of where their vacuum lines hook up at? I am missing them completely and the ones attached dont lead anywhere they are just laying in the engine housing.
Trending Topics
12-15-2009, 04:43 PM
#8
CF Veteran
Join Date: Jul 2008
Location: Schnecksville, PA
Posts: 1,217
Likes: 0
Received 5 Likes
on
5 Posts
Year: 94 XJ
Model: Cherokee
Engine: 4.0L
The lines come into the engine bay alongside the BATTERY.
There is a "T" connector there.
One line of the T goes to CRUISE CONTROL (if equipped. IF not, its capped.)
Then it goes straight back to the firewall.
Its runs under the lip of the firewall seam over to the driver's side of the engine, where it's connected right to the intake.
There should be a vacuum reservoir INSIDE the bumper.
If not, you may want to get one or at the very least, cap that line. Your engine will thank you.
And to all those who would just blurt out..."You don't need it. Just remove it."
I've found the PERFECT Cherokee for you:
There is a "T" connector there.
One line of the T goes to CRUISE CONTROL (if equipped. IF not, its capped.)
Then it goes straight back to the firewall.
Its runs under the lip of the firewall seam over to the driver's side of the engine, where it's connected right to the intake.
There should be a vacuum reservoir INSIDE the bumper.
If not, you may want to get one or at the very least, cap that line. Your engine will thank you.
And to all those who would just blurt out..."You don't need it. Just remove it."
I've found the PERFECT Cherokee for you:
12-15-2009, 06:05 PM
#10
Junior Member
Thread Starter
Join Date: Apr 2009
Location: Cherry Valley,Ca
Posts: 89
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1993
Model: Cherokee
Engine: 4.0
The lines come into the engine bay alongside the BATTERY.
There is a "T" connector there.
One line of the T goes to CRUISE CONTROL (if equipped. IF not, its capped.)
Then it goes straight back to the firewall.
Its runs under the lip of the firewall seam over to the driver's side of the engine, where it's connected right to the intake.
There should be a vacuum reservoir INSIDE the bumper.
If not, you may want to get one or at the very least, cap that line. Your engine will thank you.
And to all those who would just blurt out..."You don't need it. Just remove it."
I've found the PERFECT Cherokee for you:
There is a "T" connector there.
One line of the T goes to CRUISE CONTROL (if equipped. IF not, its capped.)
Then it goes straight back to the firewall.
Its runs under the lip of the firewall seam over to the driver's side of the engine, where it's connected right to the intake.
There should be a vacuum reservoir INSIDE the bumper.
If not, you may want to get one or at the very least, cap that line. Your engine will thank you.
And to all those who would just blurt out..."You don't need it. Just remove it."
I've found the PERFECT Cherokee for you:
12-15-2009, 08:58 PM
#12
CF Veteran
Join Date: Sep 2009
Location: NC
Posts: 5,376
Likes: 0
Received 0 Likes
on
0 Posts
Model: Cherokee
The lines come into the engine bay alongside the BATTERY.
There is a "T" connector there.
One line of the T goes to CRUISE CONTROL (if equipped. IF not, its capped.)
Then it goes straight back to the firewall.
Its runs under the lip of the firewall seam over to the driver's side of the engine, where it's connected right to the intake.
There should be a vacuum reservoir INSIDE the bumper.
If not, you may want to get one or at the very least, cap that line. Your engine will thank you.
And to all those who would just blurt out..."You don't need it. Just remove it."
I've found the PERFECT Cherokee for you:
There is a "T" connector there.
One line of the T goes to CRUISE CONTROL (if equipped. IF not, its capped.)
Then it goes straight back to the firewall.
Its runs under the lip of the firewall seam over to the driver's side of the engine, where it's connected right to the intake.
There should be a vacuum reservoir INSIDE the bumper.
If not, you may want to get one or at the very least, cap that line. Your engine will thank you.
And to all those who would just blurt out..."You don't need it. Just remove it."
I've found the PERFECT Cherokee for you:
I dig that one. Invisamode +
Ultimate Jeep
Also you forgot the bedliner.
