Stock XJ Cherokee Tech. All XJ Non-modified/stock questions go here XJ (84-01)
All OEM related XJ specific tech. Examples, no start, general maintenance or anything that's stock.

Turn Signal Gremlins

Thread Tools

Search this Thread

Old 03-26-2014, 09:05 PM
  #1
Member
Thread Starter

asuderma's Avatar

Join Date: Nov 2011
Location: Denver, CO
Posts: 126
Likes: 0
Received 0 Likes on 0 Posts
Year: 1992
Model: Cherokee
Engine: 4.0L I6
Default Turn Signal Gremlins

So my hazards work, but my turn signals do not even try to work it seems. No clicking and the lights in the dash do not light up.

I have checked all fuses, including under the hood.

I have also replaced the switch in the steering column.

Thanks in advance.
Old 03-27-2014, 07:33 AM
  #2
::CF Moderator::

cruiser54's Avatar

Join Date: Aug 2011
Location: Prescott, Az
Posts: 43,937
Received 1,540 Likes on 1,247 Posts
Year: 1990
Model: Cherokee (XJ)
Engine: 4.0
Default

Ever try swapping the turn signal flasher with the hazard flasher and see what happens?
Old 03-27-2014, 07:52 AM
  #3
Member
Thread Starter

asuderma's Avatar

Join Date: Nov 2011
Location: Denver, CO
Posts: 126
Likes: 0
Received 0 Likes on 0 Posts
Year: 1992
Model: Cherokee
Engine: 4.0L I6
Default

I have replaced both but i will check. I have had the flasher go bad before and the lights still came on, but just didn't blink.
Old 03-27-2014, 08:01 AM
  #4
::CF Moderator::

cruiser54's Avatar

Join Date: Aug 2011
Location: Prescott, Az
Posts: 43,937
Received 1,540 Likes on 1,247 Posts
Year: 1990
Model: Cherokee (XJ)
Engine: 4.0
Default

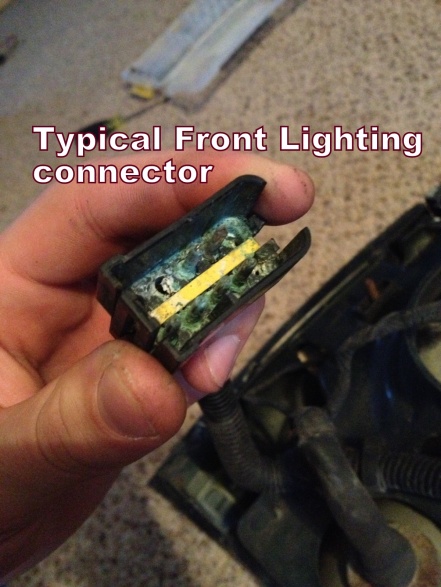

Might also wanna take a look inside this connector in front of the air cleaner assembly.
Attached Thumbnails Turn Signal Gremlins-10-pin-lighting-connector.jpg   Turn Signal Gremlins-10-pin-connector-2.jpg
Old 03-27-2014, 01:42 PM
  #5
Member
Thread Starter

asuderma's Avatar

Join Date: Nov 2011
Location: Denver, CO
Posts: 126
Likes: 0
Received 0 Likes on 0 Posts
Year: 1992
Model: Cherokee
Engine: 4.0L I6
Default Update

Okay, so this gets weirder.

First, I checked that connector, and it looks fine. A little goopy, but fine.

Second, apparently my hazard flasher was dead, because when I switched the flasher units, the hazards came on (apparently I screwed up something when doing the switch and got them stuck).

Third, after switching the flashers, the turn signals worked briefly. Now they don't work again. I have tried a brand new flasher unit to no avail.

Thanks again in advance for any help.
Old 03-27-2014, 02:02 PM
  #6
Member
Thread Starter

asuderma's Avatar

Join Date: Nov 2011
Location: Denver, CO
Posts: 126
Likes: 0
Received 0 Likes on 0 Posts
Year: 1992
Model: Cherokee
Engine: 4.0L I6
Default

It has suddenly occured to me that the turn signals may not be working now because of the hazards being stuck. Any thoughts?
Old 03-27-2014, 02:08 PM
  #7
Senior Member

Kingfisher's Avatar

Join Date: Mar 2014
Location: Central Indiana
Posts: 552
Likes: 0
Received 0 Likes on 0 Posts
Year: 1996
Model: Cherokee
Engine: 4.0
Default

Originally Posted by asuderma
It has suddenly occured to me that the turn signals may not be working now because of the hazards being stuck. Any thoughts?

Leave hazard flasher out and see if turn signals work
Old 03-27-2014, 02:28 PM
  #8
Member
Thread Starter

asuderma's Avatar

Join Date: Nov 2011
Location: Denver, CO
Posts: 126
Likes: 0
Received 0 Likes on 0 Posts
Year: 1992
Model: Cherokee
Engine: 4.0L I6
Default

Tried removing both the hazard flasher and the fuse for the hazards. No dice.
Old 03-27-2014, 02:37 PM
  #9
Senior Member

Kingfisher's Avatar

Join Date: Mar 2014
Location: Central Indiana
Posts: 552
Likes: 0
Received 0 Likes on 0 Posts
Year: 1996
Model: Cherokee
Engine: 4.0
Default

Just guessing,but seems like most "weird" light problems are caused by a bad ground.
Old 03-27-2014, 03:51 PM
  #10
Member
Thread Starter

asuderma's Avatar

Join Date: Nov 2011
Location: Denver, CO
Posts: 126
Likes: 0
Received 0 Likes on 0 Posts
Year: 1992
Model: Cherokee
Engine: 4.0L I6
Default

Fixed it. The hazards being on, regardless of fuse or flasher apparently prevent the turn signals from working.

So new switch, new flashers and everything is good. Finally.
Old 03-27-2014, 05:02 PM
  #11
::CF Moderator::

cruiser54's Avatar

Join Date: Aug 2011
Location: Prescott, Az
Posts: 43,937
Received 1,540 Likes on 1,247 Posts
Year: 1990
Model: Cherokee (XJ)
Engine: 4.0
Default

Originally Posted by asuderma
Fixed it. The hazards being on, regardless of fuse or flasher apparently prevent the turn signals from working.

So new switch, new flashers and everything is good. Finally.
And the crowd cheers!!

Old 03-27-2014, 05:08 PM
  #12
Member
Thread Starter

asuderma's Avatar

Join Date: Nov 2011
Location: Denver, CO
Posts: 126
Likes: 0
Received 0 Likes on 0 Posts
Year: 1992
Model: Cherokee
Engine: 4.0L I6
Default

Originally Posted by cruiser54

And the crowd cheers!!

Lol
