Stripped top caliper mounting bolt

Thread Tools

Search this Thread

Old Jul 13, 2014 | 08:53 PM
  #1
mycherokee's Avatar
Thread Starter
Seasoned Member

Joined: Dec 2009
Posts: 429
Likes: 0
From: Wichita, KS
Year: 1999
Model: Cherokee
Engine: 4.0l I6
Default Stripped top caliper mounting bolt

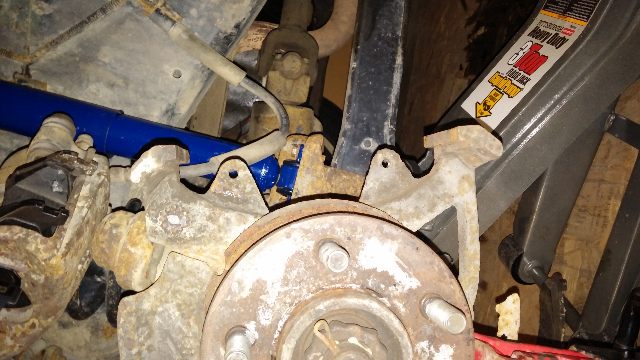

So I was replacing the brakes and can't get the top caliper mounting bolt snug.... Took it apart and noticed its stripped badly. What are my options? I've never tried to re thread so this will be my first experience with this.
Attached Images
Reply
Old Jul 13, 2014 | 09:27 PM
  #2
Bustedback's Avatar
CF Veteran

Joined: Feb 2010
Posts: 12,367
Likes: 23
From: Oroville, CA
Year: 1995
Model: Grand Cherokee
Engine: 4.0 with all of the noise and clatter
Default

I just had the same issue with my ZJ. I drilled out the hole and tapped it, then I installed a heli-coil and a new bolt. No problems since. New knuckles can be had for a tidy sum, or go to the boneyard if you don't want to go the route I did.
Reply
Old Jul 13, 2014 | 09:28 PM
  #3
MonacaYankee's Avatar
CF Veteran
15 Year Member

Joined: Mar 2010
Posts: 1,442
Likes: 9
From: NC
Year: 99 94
Model: Cherokee (XJ)
Engine: I6
Default

New steering knuckle or tap it.
Reply
Old Jul 13, 2014 | 11:12 PM
  #4
Potatowalker's Avatar
Seasoned Member

Joined: Oct 2010
Posts: 486
Likes: 2
From: Colorado Rocky Mountains
Year: 1999
Model: Cherokee
Engine: 4.0 I6
Default

Originally Posted by Bustedback
I just had the same issue with my ZJ. I drilled out the hole and tapped it, then I installed a heli-coil and a new bolt. No problems since. New knuckles can be had for a tidy sum, or go to the boneyard if you don't want to go the route I did.
^THIS - I did the same thing on my 96xj and it held up fine for 2 years until I replaced the knuckle. Just take your time tapping it because it felt really soft.
Reply
Old Jul 13, 2014 | 11:46 PM
  #5
cruiser54's Avatar
::CF Moderator::

Joined: Aug 2011
Posts: 43,971
Likes: 1,579
From: Prescott, Az
Year: 1990
Model: Cherokee (XJ)
Engine: 4.0
Default

Helicoil.
Reply
Old Jul 14, 2014 | 07:43 AM
  #6
Bustedback's Avatar
CF Veteran

Joined: Feb 2010
Posts: 12,367
Likes: 23
From: Oroville, CA
Year: 1995
Model: Grand Cherokee
Engine: 4.0 with all of the noise and clatter
Default

Originally Posted by cruiser54
Helicoil.
Spelling Notsee.



See what I did they're?
Reply
Old Jul 14, 2014 | 08:45 AM
  #7
cruiser54's Avatar
::CF Moderator::

Joined: Aug 2011
Posts: 43,971
Likes: 1,579
From: Prescott, Az
Year: 1990
Model: Cherokee (XJ)
Engine: 4.0
Default

Originally Posted by Bustedback
Spelling Notsee.



See what I did they're?
I didn't even see that!! LOL.
Reply
Old Jul 15, 2014 | 09:20 AM
  #8
mycherokee's Avatar
Thread Starter
Seasoned Member

Joined: Dec 2009
Posts: 429
Likes: 0
From: Wichita, KS
Year: 1999
Model: Cherokee
Engine: 4.0l I6
Default

Did the helicoil pretty easy job. Took about 15 minutes to do. Worked fine. Thanks for the advise. So for anyone having this issue get a kit from auto parts store. But be ready for the handle to strip, had to use grips on the end and twist them to get the threads complete.
