Squeaking Distributor/Rotor Cap

Thread Tools

Search this Thread

Old Jan 1, 2015 | 02:57 PM
Share
  #166
WomanNeedsJeepExpertise's Avatar
WomanNeedsJeepExpertise
Thread Starter
Senior Member

Joined: Apr 2012
Posts: 716
Likes: 0
From: Charlotte, NC
Year: 1994 Jeep Cherokee Sport
Default
Originally Posted by freegdr
Remove no 1 plug from cylinder head. Place finger over hole. Have some one turn crank bolt until you feel air trying to push your finger off the hole.. Then turning very slowly line up timing mark on zero. The first time it lines up. Like this.....

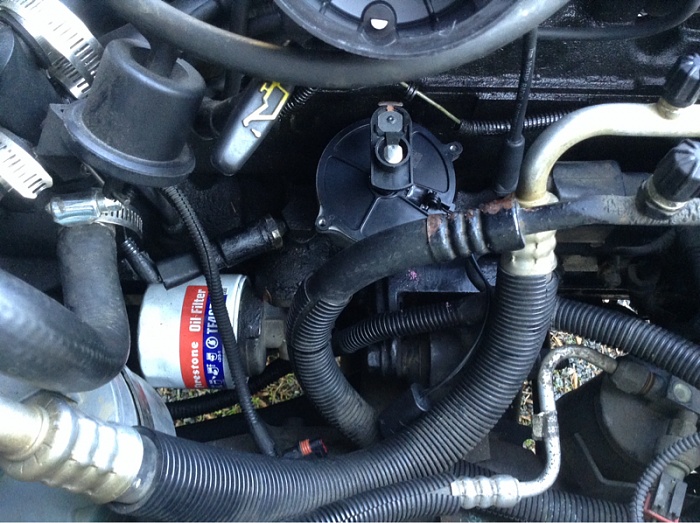

Ok, son turned the crank, felt compression, set to "0." Now this is where the rotor is, I'm not doing anything else until you say so,
Attached Thumbnails Squeaking Distributor/Rotor Cap-image-513700449.jpg
Reply
0
Old Jan 1, 2015 | 02:58 PM
Share
  #167
freegdr's Avatar
freegdr
CF Veteran

Joined: Mar 2010
Posts: 47,923
Likes: 38
From: Broward County Fl.
Year: 1989 xj sport 2dr
Model: Cherokee
Engine: 12 hole bosch Injectors
Default
.
Last edited by freegdr; Jan 1, 2015 at 03:00 PM.
Reply
0
Old Jan 1, 2015 | 02:59 PM
Share
  #168
freegdr's Avatar
freegdr
CF Veteran

Joined: Mar 2010
Posts: 47,923
Likes: 38
From: Broward County Fl.
Year: 1989 xj sport 2dr
Model: Cherokee
Engine: 12 hole bosch Injectors
Default
Originally Posted by freegdr

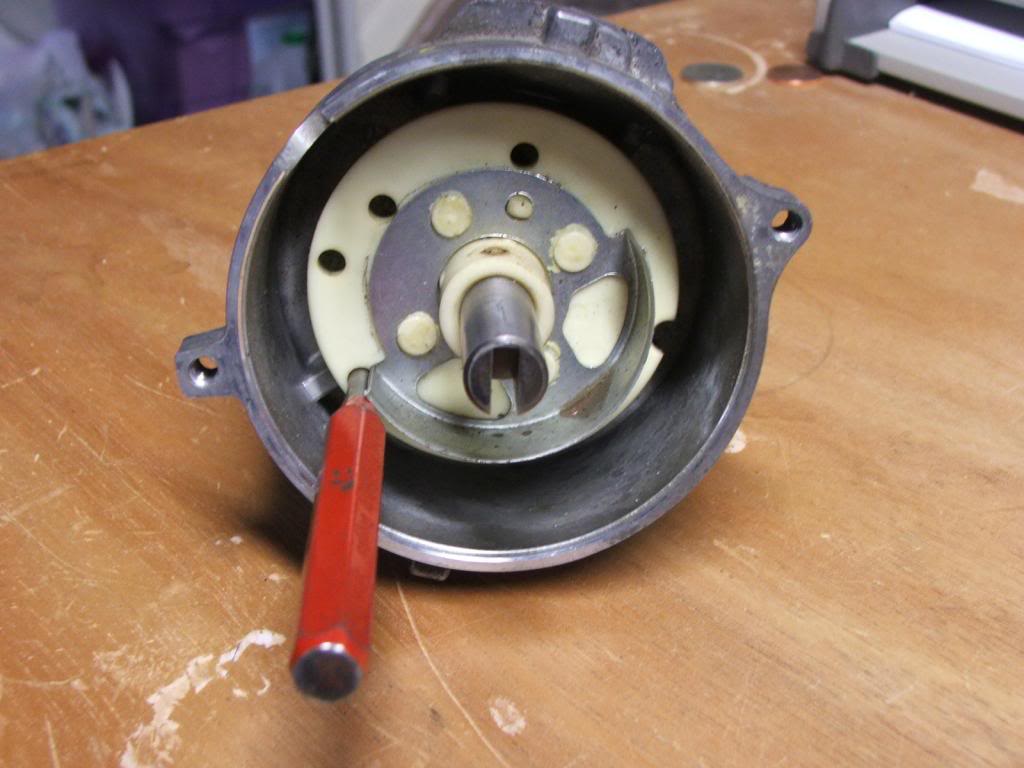

Then remove distributor install punch as shown here.....
Do this .....
Attached Thumbnails Squeaking Distributor/Rotor Cap-dscf2782.jpg
Reply
0
Old Jan 1, 2015 | 03:06 PM
Share
  #169
freegdr's Avatar
freegdr
CF Veteran

Joined: Mar 2010
Posts: 47,923
Likes: 38
From: Broward County Fl.
Year: 1989 xj sport 2dr
Model: Cherokee
Engine: 12 hole bosch Injectors
Default

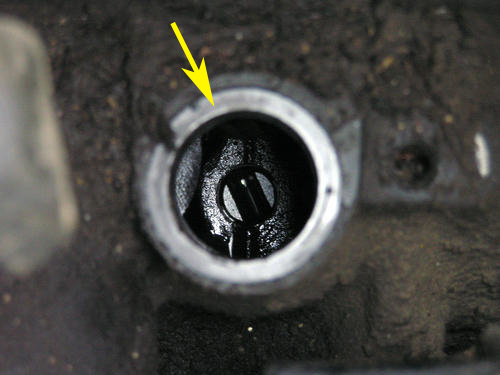

Then line up oil pump shaft with screw driver like this .....11 oclock...
Attached Images
Last edited by freegdr; Jan 1, 2015 at 03:17 PM.
Reply
0
Old Jan 1, 2015 | 03:06 PM
Share
  #170
WomanNeedsJeepExpertise's Avatar
WomanNeedsJeepExpertise
Thread Starter
Senior Member

Joined: Apr 2012
Posts: 716
Likes: 0
From: Charlotte, NC
Year: 1994 Jeep Cherokee Sport
Default

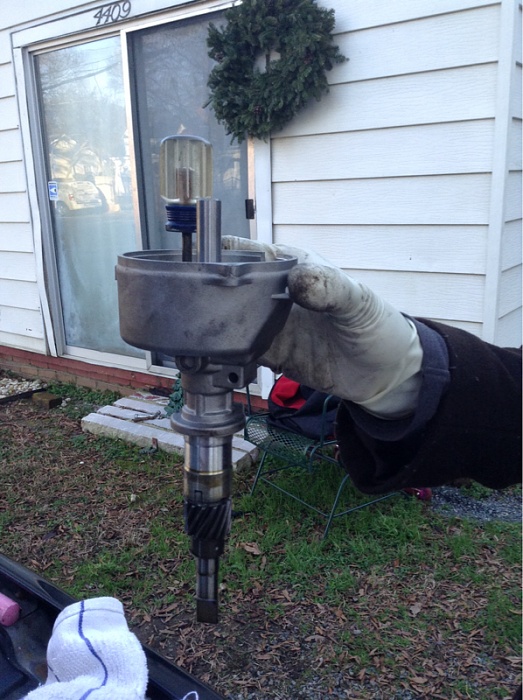

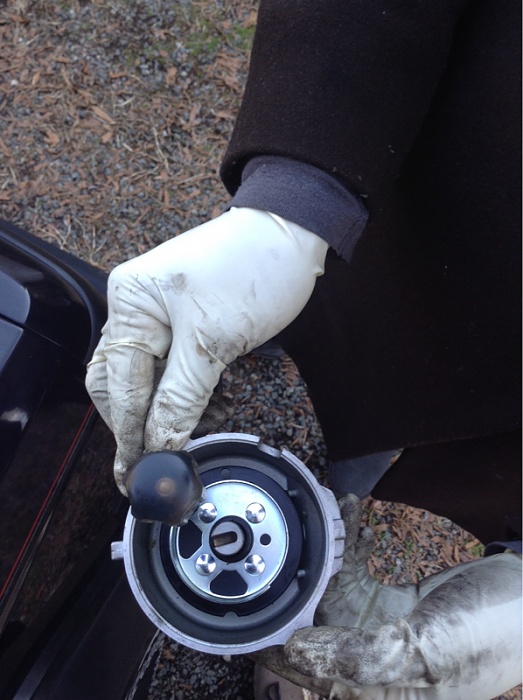

Insert like this, right? Do I need a gasket?
Attached Thumbnails Squeaking Distributor/Rotor Cap-image-1396351171.jpg   Squeaking Distributor/Rotor Cap-image-1010999166.jpg
Reply
0
Old Jan 1, 2015 | 03:07 PM
Share
  #171
freegdr's Avatar
freegdr
CF Veteran

Joined: Mar 2010
Posts: 47,923
Likes: 38
From: Broward County Fl.
Year: 1989 xj sport 2dr
Model: Cherokee
Engine: 12 hole bosch Injectors
Default

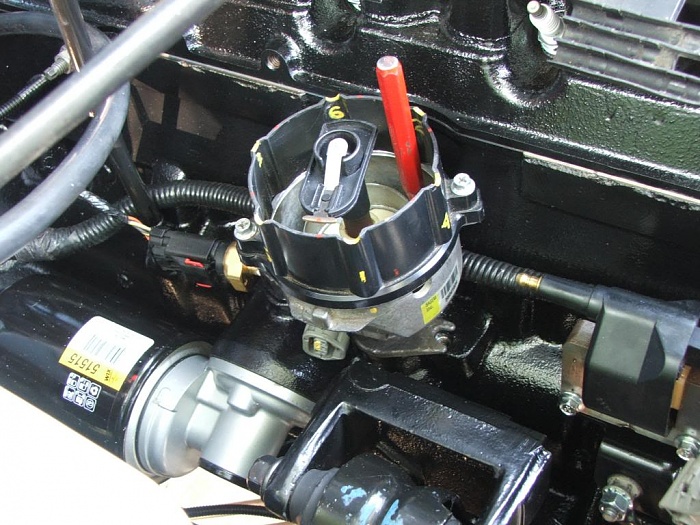

Then install dist like this....Dont worry abut the cap thats been cut in this pic.
Attached Thumbnails Squeaking Distributor/Rotor Cap-distributorstab.jpg
Reply
0
Old Jan 1, 2015 | 03:11 PM
Share
  #172
freegdr's Avatar
freegdr
CF Veteran

Joined: Mar 2010
Posts: 47,923
Likes: 38
From: Broward County Fl.
Year: 1989 xj sport 2dr
Model: Cherokee
Engine: 12 hole bosch Injectors
Default
Originally Posted by WomanNeedsJeepExpertise
Insert like this, right? Do I need a gasket?
That looks correct and yes there should be a round gasket used.
Reply
0
Old Jan 1, 2015 | 03:14 PM
Share
  #173
WomanNeedsJeepExpertise's Avatar
WomanNeedsJeepExpertise
Thread Starter
Senior Member

Joined: Apr 2012
Posts: 716
Likes: 0
From: Charlotte, NC
Year: 1994 Jeep Cherokee Sport
Default
Originally Posted by freegdr
That looks correct and yes there should be a round gasket used.
Hang on…Where can I get a gasket today? The distributor didn't come with one and the old one didn't have one either
Reply
0
Old Jan 1, 2015 | 03:21 PM
Share
  #174
freegdr's Avatar
freegdr
CF Veteran

Joined: Mar 2010
Posts: 47,923
Likes: 38
From: Broward County Fl.
Year: 1989 xj sport 2dr
Model: Cherokee
Engine: 12 hole bosch Injectors
Default
Turn pump shaft to 11 oclock....
Attached Images
Reply
0
Old Jan 1, 2015 | 03:22 PM
Share
  #175
freegdr's Avatar
freegdr
CF Veteran

Joined: Mar 2010
Posts: 47,923
Likes: 38
From: Broward County Fl.
Year: 1989 xj sport 2dr
Model: Cherokee
Engine: 12 hole bosch Injectors
Default
Install dist like this....Dont worry abut cut dist cap...
Attached Thumbnails Squeaking Distributor/Rotor Cap-distributorstab.jpg
Reply
0
Old Jan 1, 2015 | 03:24 PM
Share
  #176
freegdr's Avatar
freegdr
CF Veteran

Joined: Mar 2010
Posts: 47,923
Likes: 38
From: Broward County Fl.
Year: 1989 xj sport 2dr
Model: Cherokee
Engine: 12 hole bosch Injectors
Default
Originally Posted by WomanNeedsJeepExpertise
Hang on…Where can I get a gasket today? The distributor didn't come with one and the old one didn't have one either
Try local auto parts. Gotta bbq to attend..see ya...
Reply
0
Old Jan 1, 2015 | 03:28 PM
Share
  #177
WomanNeedsJeepExpertise's Avatar
WomanNeedsJeepExpertise
Thread Starter
Senior Member

Joined: Apr 2012
Posts: 716
Likes: 0
From: Charlotte, NC
Year: 1994 Jeep Cherokee Sport
Default
Ok, the parts stores are closed. I'll install without the gasket. Have fun at the BBQ :-).
Reply
0
Old Jan 1, 2015 | 04:12 PM
Share
  #178
freegdr's Avatar
freegdr
CF Veteran

Joined: Mar 2010
Posts: 47,923
Likes: 38
From: Broward County Fl.
Year: 1989 xj sport 2dr
Model: Cherokee
Engine: 12 hole bosch Injectors
Default
Originally Posted by WomanNeedsJeepExpertise
Ok, the parts stores are closed. I'll install without the gasket. Have fun at the BBQ :-).
Bbq canceled, if you do very possible its gonna leak oil...
Reply
0
Old Jan 1, 2015 | 04:29 PM
Share
  #179
CCKen's Avatar
CCKen
CF Veteran

Joined: Aug 2010
Posts: 8,357
Likes: 103
From: Canton, MI
Year: 1999
Model: Cherokee
Engine: 4.0
Default
Is your replacement disributor a new one or a rebuilt one?

What brand?

BTW: That bang you heard was your Catalytic Convrter blowing up. :-)
Reply
0
Old Jan 1, 2015 | 04:32 PM
Share
  #180
CCKen's Avatar
CCKen
CF Veteran

Joined: Aug 2010
Posts: 8,357
Likes: 103
From: Canton, MI
Year: 1999
Model: Cherokee
Engine: 4.0
Default
Originally Posted by WomanNeedsJeepExpertise
Insert like this, right? Do I need a gasket?
That first pic doesn't look like an XJ distributor...
Reply
0
