Snapped Engine Mount Bolts
#31
Junior Member
Thread Starter
Join Date: Aug 2015
Location: Mackay Australia
Posts: 43
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1995
Model: Cherokee
Engine: 4.0
And yes, even though I've only had it 3 months and something like this has happened I'm still happy to own a cherokee
#33
Junior Member
Thread Starter
Join Date: Aug 2015
Location: Mackay Australia
Posts: 43
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1995
Model: Cherokee
Engine: 4.0
Might well of, I'm not sure. I will be getting a close quarters drill similar to the linked one for all future needs
But not a small job,
Removed:
Air Box
Battery
Engine Fan
Electric Fan
Engine Mounts
Engine Mount Receivers
Radiator Overflow
Alternator
Serpentine belt
Right coil
Disconnected:
Coolant Hoses
Right cross member bolts
Wiring Harness Mounts at rear of bay
Panhard Rod Chassis mounting bracket (to drop steering components in 1 piece)
I'll add anymore that I missed in the morning
But not a small job,
Removed:
Air Box
Battery
Engine Fan
Electric Fan
Engine Mounts
Engine Mount Receivers
Radiator Overflow
Alternator
Serpentine belt
Right coil
Disconnected:
Coolant Hoses
Right cross member bolts
Wiring Harness Mounts at rear of bay
Panhard Rod Chassis mounting bracket (to drop steering components in 1 piece)
I'll add anymore that I missed in the morning
#34
CF Veteran
Join Date: Mar 2010
Location: Broward County Fl.
Posts: 47,923
Likes: 0
Received 22 Likes
on
22 Posts
Year: 1989 xj sport 2dr
Model: Cherokee
Engine: 12 hole bosch Injectors
Might well of, I'm not sure. I will be getting a close quarters drill similar to the linked one for all future needs
But not a small job,
Removed:
Air Box
Battery
Engine Fan
Electric Fan
Engine Mounts
Engine Mount Receivers
Radiator Overflow
Alternator
Serpentine belt
Right coil
Disconnected:
Coolant Hoses
Right cross member bolts
Wiring Harness Mounts at rear of bay
Panhard Rod Chassis mounting bracket (to drop steering components in 1 piece)
I'll add anymore that I missed in the morning
But not a small job,
Removed:
Air Box
Battery
Engine Fan
Electric Fan
Engine Mounts
Engine Mount Receivers
Radiator Overflow
Alternator
Serpentine belt
Right coil
Disconnected:
Coolant Hoses
Right cross member bolts
Wiring Harness Mounts at rear of bay
Panhard Rod Chassis mounting bracket (to drop steering components in 1 piece)
I'll add anymore that I missed in the morning
#35
Beach Bum
#36
::CF Moderator::
Join Date: Aug 2011
Location: Prescott, Az
Posts: 43,875
Received 1,526 Likes
on
1,238 Posts
Year: 1990
Model: Cherokee (XJ)
Engine: 4.0
#37
::CF Administrator::
I personally have known more than one person, who are no longer with us, due to their vehicle falling and crushing them. And, they were following the letter of the law on lifting and supporting vehicles. Even when done correctly, accidents happen. PLEASE minimize the risk, sir...just looking out for a fellow jeeper
#38
Member
Join Date: Sep 2015
Location: North Fort Myers FL
Posts: 567
Likes: 0
Received 0 Likes
on
0 Posts
Year: 2000
Model: Cherokee
Engine: 4.0 I6
PLEASE LISTEN TO THIS I personally have known more than one person, who are no longer with us, due to their vehicle falling and crushing them. And, they were following the letter of the law on lifting and supporting vehicles. Even when done correctly, accidents happen. PLEASE minimize the risk, sir...just looking out for a fellow jeeper
#39
Banned
Join Date: Feb 2014
Location: Florida
Posts: 2,379
Likes: 0
Received 13 Likes
on
12 Posts
Year: 2000
Model: Cherokee(XJ)
Engine: Golen 4.6L
I am curious what he has under the side to hold up the vehicle, but I didn't see a pic showing that. Maybe he does have a jack stand back there.
#40
CF Veteran
Join Date: May 2015
Location: Arizona
Posts: 4,481
Likes: 0
Received 16 Likes
on
12 Posts
Year: 97
Model: Cherokee
Engine: 4.0
An old trick
I always have had a welder handy and have removed a lot of broken off bolts by welding the center of a Nut to the broken bolt. The heating of the bolt from the welding also helps loosen the threads and then they usually come out pretty easy using the welded on nut to turn it.
#41
Beach Bum
Looks to me that he's using that weird stack of blocks and the bottle jack to hold up the motor, not the entire vehicle. The pic shows the jack supporting the oil pan.
I am curious what he has under the side to hold up the vehicle, but I didn't see a pic showing that. Maybe he does have a jack stand back there.
I am curious what he has under the side to hold up the vehicle, but I didn't see a pic showing that. Maybe he does have a jack stand back there.
that far.
#42
Junior Member
Thread Starter
Join Date: Aug 2015
Location: Mackay Australia
Posts: 43
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1995
Model: Cherokee
Engine: 4.0
SteveMongr, cruiser54, roninofako, thee_bearded1, Thank you for the concern regarding safety, it is something that is over looked too much but NOT by me.
That is something I really like about this forum, the general concern of safety for fellow members
The car has 3 wheels on the ground, there is a jack stand under the chassis rail under the right side just before the the engine bay.
There is a jack stand under the gearbox cross member, the engine is suspended by 2 1/2 ton ratchet strap from above (capable roof beam).
The jack under the engine is just to stop the engine from hanging on its own and to stabilize it.
I've been around car's for long enough to know when its safe to be under them, and in saying that as soon as the car stopped having 4 wheels on the ground I stopped having more than a single limb under the raised corner at any given time.
I am a very careful person, I even waited until my wife got home to be under it once it was in the air
The car is sitting basically as level as normal, in its current position the disc is almost touching the ground.
Also forgot to mention the block is actually concrete filled (pain in the **** to move) and not hollow like normal
That is something I really like about this forum, the general concern of safety for fellow members
The car has 3 wheels on the ground, there is a jack stand under the chassis rail under the right side just before the the engine bay.
There is a jack stand under the gearbox cross member, the engine is suspended by 2 1/2 ton ratchet strap from above (capable roof beam).
The jack under the engine is just to stop the engine from hanging on its own and to stabilize it.
I've been around car's for long enough to know when its safe to be under them, and in saying that as soon as the car stopped having 4 wheels on the ground I stopped having more than a single limb under the raised corner at any given time.
I am a very careful person, I even waited until my wife got home to be under it once it was in the air
The car is sitting basically as level as normal, in its current position the disc is almost touching the ground.
Also forgot to mention the block is actually concrete filled (pain in the **** to move) and not hollow like normal
Last edited by Freakn; 10-03-2015 at 04:21 PM.
#44
Junior Member
Thread Starter
Join Date: Aug 2015
Location: Mackay Australia
Posts: 43
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1995
Model: Cherokee
Engine: 4.0

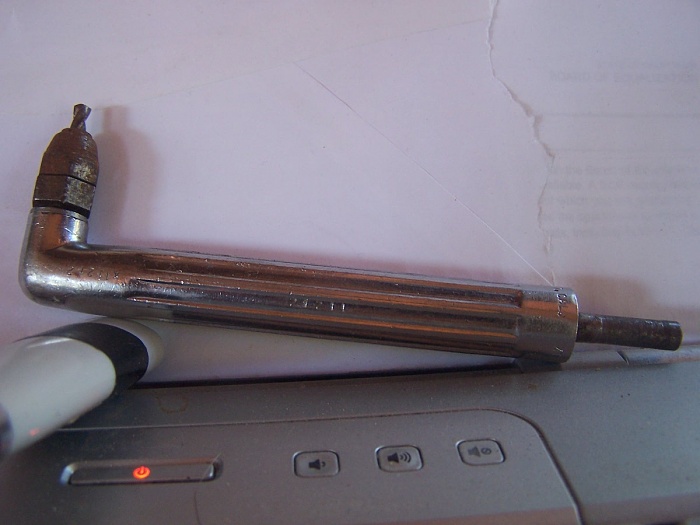

That looks handy DFlintstone
ALSO Victory, all 3 bolts
Love the Rigid Screw Extractor set, though to be honest the from 2 probably would of come out with a cheap taper easy out but the 3 was a pain due to the angle that I had to drill but atleast they are all out.
And here is a couple better pictures that show how the vehicle was support and the jack just there for the engine so i could control its descent
ALSO Victory, all 3 bolts
Love the Rigid Screw Extractor set, though to be honest the from 2 probably would of come out with a cheap taper easy out but the 3 was a pain due to the angle that I had to drill but atleast they are all out.
And here is a couple better pictures that show how the vehicle was support and the jack just there for the engine so i could control its descent
