Snapped Engine Mount Bolts
10-02-2015, 03:49 AM
#16
CF Veteran
Join Date: Mar 2010
Location: Broward County Fl.
Posts: 47,923
Likes: 0
Received 22 Likes
on
22 Posts
Year: 1989 xj sport 2dr
Model: Cherokee
Engine: 12 hole bosch Injectors
Ever see a right angle drill adapter ? Doing it with a reg drill not gonna cut it . No saying it cant be done with removal of suspension parts to maybe get straight shot at bolts.
Last edited by freegdr; 10-02-2015 at 03:51 AM.
10-02-2015, 05:15 AM
#18
Junior Member
Thread Starter
Join Date: Aug 2015
Location: Mackay Australia
Posts: 43
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1995
Model: Cherokee
Engine: 4.0

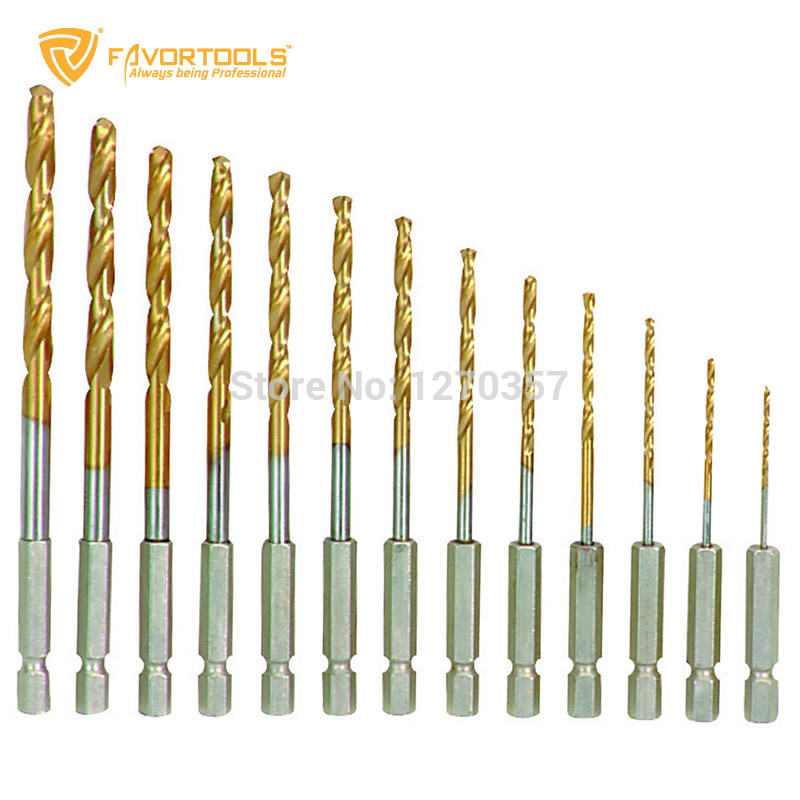

I thought about the right angle adapter but there still wont be enough room to fit it in, the adapter you posted is for 1/4" hex drive unfortunately.
I don't know if what i have planned will work but with what i have access to its my best shot
I'm extremely persistent, and for what experience I lack, I make up for in creativity
I'll make sure to post a few snap's as it progreeses
I don't know if what i have planned will work but with what i have access to its my best shot
I'm extremely persistent, and for what experience I lack, I make up for in creativity
I'll make sure to post a few snap's as it progreeses
10-02-2015, 05:29 AM
#19
CF Veteran
Join Date: Mar 2010
Location: Broward County Fl.
Posts: 47,923
Likes: 0
Received 22 Likes
on
22 Posts
Year: 1989 xj sport 2dr
Model: Cherokee
Engine: 12 hole bosch Injectors
I thought about the right angle adapter but there still wont be enough room to fit it in, the adapter you posted is for 1/4" hex drive unfortunately.
I don't know if what i have planned will work but with what i have access to its my best shot
I'm extremely persistent, and for what experience I lack, I make up for in creativity
I'll make sure to post a few snap's as it progreeses
I don't know if what i have planned will work but with what i have access to its my best shot
I'm extremely persistent, and for what experience I lack, I make up for in creativity
I'll make sure to post a few snap's as it progreeses
10-02-2015, 06:22 AM
#21
Junior Member
Thread Starter
Join Date: Aug 2015
Location: Mackay Australia
Posts: 43
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1995
Model: Cherokee
Engine: 4.0
Yes but the issue I saw was I think it was you that mentioned you needed to shorten the drill bit also to make it fit and I could run into issues with these as I would need to shorten from the sharp end.
I must say i do appreciate all the options/idea your offering
My plan is to actually drop the engine threads below the rails.
Disconnect a few hoses, remove steering box, drop axles etc
I must say i do appreciate all the options/idea your offering
Disconnect a few hoses, remove steering box, drop axles etc
10-02-2015, 07:53 AM
#22
CF Veteran
Join Date: May 2015
Location: Arizona
Posts: 4,481
Likes: 0
Received 16 Likes
on
12 Posts
Year: 97
Model: Cherokee
Engine: 4.0
Yep, You saved me a Fan, a Shroud and maybe even a Radiator! This would have definitely sucked 20 miles out in the Boonies with my Wife in my ear asking me "What did you do?" lol.
Knowledge of these quirks is why I am glad I came and jumped into this site. Priceless Sir!
10-02-2015, 08:14 AM
#23
Member
Join Date: Sep 2015
Location: North Fort Myers FL
Posts: 567
Likes: 0
Received 0 Likes
on
0 Posts
Year: 2000
Model: Cherokee
Engine: 4.0 I6
10-02-2015, 08:43 PM
#25
CF Veteran
Join Date: Aug 2011
Location: Nor-Cal Coast
Posts: 10,489
Likes: 0
Received 17 Likes
on
17 Posts
Year: 90,84
Model: Cherokee
Engine: 4.0,2.5
Every now and then a broken bolt is surprisingly loose in there. Just a dremmel cutting wheel slot on the end for a screwdriver might do it.
10-02-2015, 09:24 PM
#26
Junior Member
Thread Starter
Join Date: Aug 2015
Location: Mackay Australia
Posts: 43
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1995
Model: Cherokee
Engine: 4.0
Got the battery, airbox, alternator, both fans, radiator hoses off and its dropped about an 2 inch's
Removing the engine mounts from the rails as my air con hardlines are limiting me know.
Once they are off I'll see how it goes and then if need be I'll undo the transmission mounts for that extra bit
Removing the engine mounts from the rails as my air con hardlines are limiting me know.
Once they are off I'll see how it goes and then if need be I'll undo the transmission mounts for that extra bit
10-03-2015, 02:32 AM
#30
Junior Member
Thread Starter
Join Date: Aug 2015
Location: Mackay Australia
Posts: 43
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1995
Model: Cherokee
Engine: 4.0

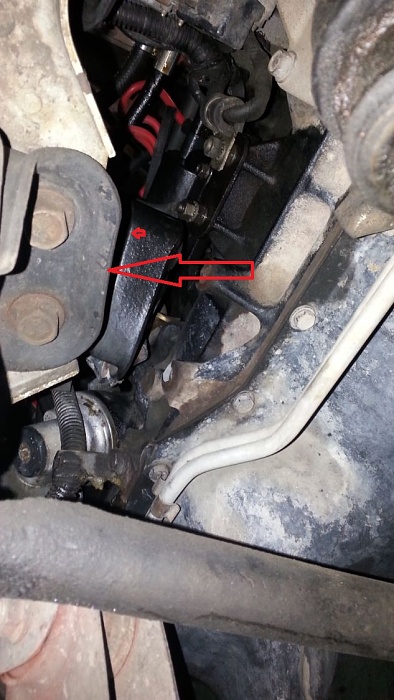

Well the plan appears to be working, here it is in its current state
I've got the strap holding the opposite side of the block to create a slight twist so the broken bolts are slightly angle down.
As you can see the engine has dropped a few inch's lower than normal, I'll actually measure the difference for my curiosity
So with the right hand side gearbox crossmember an inch below normal and the slight twist helping I can now easily reach 2 of the 3 bolts.
I'm going to try and remove the 2 first and see how I feel after it as to my next move.
I've got the strap holding the opposite side of the block to create a slight twist so the broken bolts are slightly angle down.
As you can see the engine has dropped a few inch's lower than normal, I'll actually measure the difference for my curiosity
So with the right hand side gearbox crossmember an inch below normal and the slight twist helping I can now easily reach 2 of the 3 bolts.
I'm going to try and remove the 2 first and see how I feel after it as to my next move.
