Main positive circuit short to ground
::CF Moderator::
Joined: Aug 2011
Posts: 43,971
Likes: 1,578
From: Prescott, Az
Year: 1990
Model: Cherokee (XJ)
Engine: 4.0
Man, you're a "stick with it" guy!!
Thread Starter
Junior Member
Joined: Oct 2009
Posts: 73
Likes: 0
From: Denver, CO
Year: 2000
Model: Cherokee (XJ)
Engine: 4.7L Stroker w/ Edelbrock head, forged pistons & rods, roller rockers, BBK TB, Banks headers
Hahaha... Yep. I bought it in June in a field not running and its my daily now for about $2k
Thread Starter
Junior Member
Joined: Oct 2009
Posts: 73
Likes: 0
From: Denver, CO
Year: 2000
Model: Cherokee (XJ)
Engine: 4.7L Stroker w/ Edelbrock head, forged pistons & rods, roller rockers, BBK TB, Banks headers
So to update and conclude this thread. Here is a list of problems that I found and corrected.
- Gray wire w/ red stripe from a relay in the interior had a 1-2 inch section of missing insulation.
- ignition power wire to radio missing insulation and short to ground.
-2 speaker wires with broken insulation shorting against themselves.
-Positive wire feeding vanity light for visor with cut insulation and short to ground causing fuse to blow for radio circuit.
-C101 connector filled with gunk.
-fuse box drenched in fluid from leaking Clutch Master Cylinder
- underhood lamp short to ground
-broken connector from fuse box shorting out various circuits.

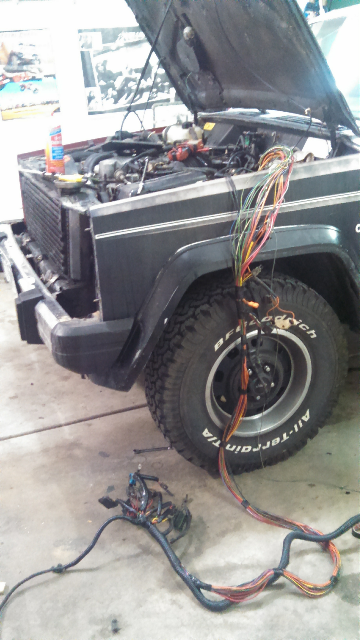

I found a lot, but in the end, all of the wiring has been gone through, new loom and wrap for engine harness and rewrapped interior side too. Everything works as it should. Heck I even took the time to wire up the ambient temp sensor for my overhead console.
- Gray wire w/ red stripe from a relay in the interior had a 1-2 inch section of missing insulation.
- ignition power wire to radio missing insulation and short to ground.
-2 speaker wires with broken insulation shorting against themselves.
-Positive wire feeding vanity light for visor with cut insulation and short to ground causing fuse to blow for radio circuit.
-C101 connector filled with gunk.
-fuse box drenched in fluid from leaking Clutch Master Cylinder
- underhood lamp short to ground
-broken connector from fuse box shorting out various circuits.
I found a lot, but in the end, all of the wiring has been gone through, new loom and wrap for engine harness and rewrapped interior side too. Everything works as it should. Heck I even took the time to wire up the ambient temp sensor for my overhead console.
Last edited by mike8301; Dec 17, 2014 at 11:16 PM.
Seasoned Member
Joined: Nov 2014
Posts: 290
Likes: 0
From: Marysville, WA
Year: 1989
Model: Cherokee
Engine: 4.0
Almost all my fuses wouldn't contact worth a crap unless I bent the hell out of the fuse pins and even then the connection was sketchy at best. It would get hot very fast and start melting.
My only solution was a whole replacement.
Seasoned Member
Joined: Nov 2014
Posts: 290
Likes: 0
From: Marysville, WA
Year: 1989
Model: Cherokee
Engine: 4.0
Damn, when I found the duct tape as I was splicing in my fuse box I thought to myself oh oh, someone had done some mikey mouse repairs before me......
Turns out the factory was the mickey mouse duct tapers? LOL
Turns out the factory was the mickey mouse duct tapers? LOL
CF Veteran
Joined: Mar 2010
Posts: 47,923
Likes: 38
From: Broward County Fl.
Year: 1989 xj sport 2dr
Model: Cherokee
Engine: 12 hole bosch Injectors
That's all good IF your bus bars haven't been overheated and ruined already like most of mine were.
Almost all my fuses wouldn't contact worth a crap unless I bent the hell out of the fuse pins and even then the connection was sketchy at best. It would get hot very fast and start melting.
My only solution was a whole replacement.
Almost all my fuses wouldn't contact worth a crap unless I bent the hell out of the fuse pins and even then the connection was sketchy at best. It would get hot very fast and start melting.
My only solution was a whole replacement.
::CF Moderator::
Joined: Aug 2011
Posts: 43,971
Likes: 1,578
From: Prescott, Az
Year: 1990
Model: Cherokee (XJ)
Engine: 4.0
Seasoned Member
Joined: Aug 2014
Posts: 486
Likes: 1
From: Lehigh Valley PA
Year: 1989
Model: Cherokee
Engine: 4.0 renix
Holy hell that's a lot of wiring issues. Great work getting it all figured out though. Most guys would have been $2000 in just in shop fees by now.
Seasoned Member
Joined: Nov 2014
Posts: 290
Likes: 0
From: Marysville, WA
Year: 1989
Model: Cherokee
Engine: 4.0
You sir, are MUCH more dedicated to I on an issue like you had.
My rig, to me is a beater to beat on. I do the least amount of work to get things working properly and safely.
Hats off to you for your methodical and very clean repair / restoration of the harness!
My rig, to me is a beater to beat on. I do the least amount of work to get things working properly and safely.
Hats off to you for your methodical and very clean repair / restoration of the harness!
Thread Starter
Junior Member
Joined: Oct 2009
Posts: 73
Likes: 0
From: Denver, CO
Year: 2000
Model: Cherokee (XJ)
Engine: 4.7L Stroker w/ Edelbrock head, forged pistons & rods, roller rockers, BBK TB, Banks headers
I have about $2500 into it and thats including cost of the vehocle
