Main fuse?
Thread Starter
Newbie
Joined: May 2017
Posts: 5
Likes: 0
From: CT
Year: 2000
Model: Cherokee
Engine: 4.0
Main fuse?
2000 Cherokee limited...
Is there a main fuse? My manual doesn't list one.
problem is... I went to start it and got a click from the dash.,.not the starter. I have no power. dome light, headlamps, dash lights, radio etc.
battery is o.k.
help!
Is there a main fuse? My manual doesn't list one.
problem is... I went to start it and got a click from the dash.,.not the starter. I have no power. dome light, headlamps, dash lights, radio etc.
battery is o.k.
help!
CF Veteran
Joined: May 2012
Posts: 7,965
Likes: 964
From: Lost in the wilds of Virginia
Year: 1998 Classic (I'll get it running soon....) and 02 Grand
Model: Cherokee (XJ)
Engine: 4.0
There is no main fuse. There is a strong likely hood that your cables are toast, even though the ends are clean.
Another possibility is your ignition switch.
Another possibility is your ignition switch.
CF Veteran
Joined: Jun 2016
Posts: 2,138
Likes: 278
From: Santa Clarita California
Year: 2001
Model: Cherokee (XJ)
Engine: 4.0L
I they are called fusible links they look just like a wire . when they go bad they burn up and the covering will sometimes hide that but if you pull on them they will stretch if good they do not stretch .
CF Veteran
Joined: May 2012
Posts: 7,965
Likes: 964
From: Lost in the wilds of Virginia
Year: 1998 Classic (I'll get it running soon....) and 02 Grand
Model: Cherokee (XJ)
Engine: 4.0
I'm pretty sure there are no fusible links in the 2000. This is what the FSM has to say:
All of the electrical current distributed throughout
this vehicle is directed through the standard equip-
ment Power Distribution Center (PDC) (Fig. 1). The
molded plastic PDC housing is located on the right
side of the engine compartment, just behind the bat-
tery. The PDC houses up to fourteen blade-type maxi
fuses, which replace all in-line fusible links. The PDC
also houses up to twelve blade-type mini fuses, and
up to eight International Standards Organization
(ISO) relays (four standard-type and four micro-type).
this vehicle is directed through the standard equip-
ment Power Distribution Center (PDC) (Fig. 1). The
molded plastic PDC housing is located on the right
side of the engine compartment, just behind the bat-
tery. The PDC houses up to fourteen blade-type maxi
fuses, which replace all in-line fusible links. The PDC
also houses up to twelve blade-type mini fuses, and
up to eight International Standards Organization
(ISO) relays (four standard-type and four micro-type).
CF Veteran
Joined: Oct 2015
Posts: 7,517
Likes: 1,626
Year: 2000
Model: Cherokee (XJ)

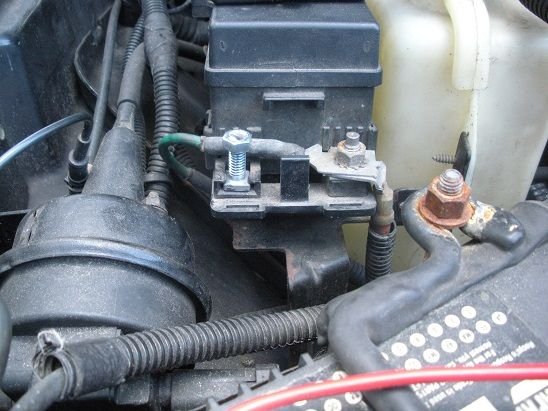

Pretty sure that green wire on the left is a fusible link.
From before I upgraded battery cables and used a mega fuse on my '00.
Does power flow both ways?
I don't really see a fusible link effecting it to the extent of no power whatsoever.
Fusible link from the alt to that post on the PDC. Another cable from there to the battery.
So wouldn't the battery still power the PDC?
Trending Topics
CF Veteran
Joined: May 2012
Posts: 7,965
Likes: 964
From: Lost in the wilds of Virginia
Year: 1998 Classic (I'll get it running soon....) and 02 Grand
Model: Cherokee (XJ)
Engine: 4.0
Right.
Wherever it can.
