leaking coolant, after i turn her off
#1
Junior Member
Thread Starter
Join Date: Jan 2012
Posts: 58
Likes: 0
Received 0 Likes
on
0 Posts
Model: Cherokee
leaking coolant, after i turn her off
i just to my 96 xj on a trip to the beach after an oil change and some new front brakes. i live in nc about 200 miles from the coast, so yeah it's kind of hot. anyway she did fine, even with over 200 grand on the engine. now, the following week, i drive 3 miles to the bank and when i come out i'm leaking coolant all over the parking lot. keep in mind i didn't have to add any fluids (besides oil) before the beach trip. so i'm trying to see where the leak is, and it stops before i can locate it. then i drive back home and park in the street, turn the engine off, and walk to the front of the jeep and wait. it takes a couple 1-2 minutes, but then it comes. the leak seems to be coming from where the big hose from the radiator attaches to the bottom side of the water pump. what i'm trying to figure out is, why doesn't is constantly leak, instead of waiting a couple minutes with the engine off? it's like once i turn it off, pressure builds up or something, and pushes the fluid out. what could cause this? thermostat? water pump? it just doesn't make sense to me.
thanks for any advice
wes
thanks for any advice
wes
#2
Senior Member
Join Date: May 2010
Location: MI 48642
Posts: 882
Likes: 0
Received 1 Like
on
1 Post
Year: 1996
Model: Cherokee
Engine: 4.0
check your hose clamps to make sure they are tight, then check the hose for cracks. clean the area up good, run it down the street and back and shut it off. Crawl under and enjoy the show. inspect the pump if you haven't found your problem yet. There is a weep hole in the bottom I think that often leaks, never worked on mine to know first hand though.
Places to look after that would be a bad rad cap not allowing pressure to escape, or an issue from one of the lines by the tstat and gravity allowing the coolant to drip from the lowest point, which is your lower rad hose.
Places to look after that would be a bad rad cap not allowing pressure to escape, or an issue from one of the lines by the tstat and gravity allowing the coolant to drip from the lowest point, which is your lower rad hose.
#3
CF Veteran
Join Date: Apr 2012
Location: Wisconsin
Posts: 5,302
Likes: 0
Received 19 Likes
on
16 Posts
Model: Cherokee
You could put a cooling system pressure tester on there, pump it up to the cap rating and look for the leak cold.
#4
Junior Member
Thread Starter
Join Date: Jan 2012
Posts: 58
Likes: 0
Received 0 Likes
on
0 Posts
Model: Cherokee
thanks guys, i think the first thing i'll do is swing out and by a new rad cap just to see if it is an easy fix. i forgot to mention, however, that the day this started happening, the jeep didn't want to start. actually it would start fine, but wouldn't idle and would shut off unless i gave it gas. i tried several times then went under the hood and wiggles some wires and banged on some stuff (more or less for my own satisfaction and because i didn't know where to look) and then she started, ran rough for a minute and finally came back to life. i wouldn't think these two issues are related but i'm by no means an expert.
#5
::CF Moderator::
Join Date: Aug 2011
Location: Prescott, Az
Posts: 43,863
Received 1,524 Likes
on
1,236 Posts
Year: 1990
Model: Cherokee (XJ)
Engine: 4.0
My money's on a water pump seal leaking trying to warn you of an impending pump failure.
#7
I'm guessing water pump too, I've honestly never had a radiator cap go bad. Once the engine is cooled off, slide your hand under/behind the water pump pulley and you should be able to feel the weep hole in the water pump. If it's wet, then it's the water pump going out. Can happen all of a sudden.
Go ahead and replace at least the lower hose while you are at it. Upper hose too if it's been a while.
Where in NC are you?
Go ahead and replace at least the lower hose while you are at it. Upper hose too if it's been a while.
Where in NC are you?
Trending Topics
#8
::CF Moderator::
Join Date: Aug 2011
Location: Prescott, Az
Posts: 43,863
Received 1,524 Likes
on
1,236 Posts
Year: 1990
Model: Cherokee (XJ)
Engine: 4.0
I'm guessing water pump too, I've honestly never had a radiator cap go bad. Once the engine is cooled off, slide your hand under/behind the water pump pulley and you should be able to feel the weep hole in the water pump. If it's wet, then it's the water pump going out. Can happen all of a sudden.
Go ahead and replace at least the lower hose while you are at it. Upper hose too if it's been a while.
Where in NC are you?
Go ahead and replace at least the lower hose while you are at it. Upper hose too if it's been a while.
Where in NC are you?
#10
::CF Moderator::
Join Date: Aug 2011
Location: Prescott, Az
Posts: 43,863
Received 1,524 Likes
on
1,236 Posts
Year: 1990
Model: Cherokee (XJ)
Engine: 4.0
#11
CF Veteran

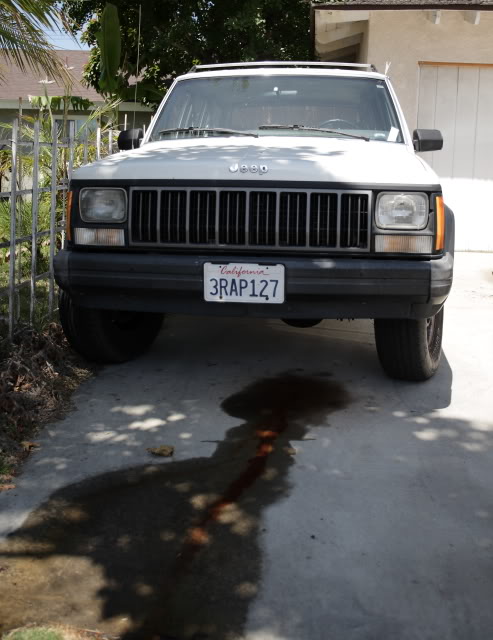

X2, 3, 4... whatever number we're on for water pump. I was experiencing virtually identical symptoms. After a few minutes I would notice a small puddle with coolant dripping from the lower hose. I figured a tiny puddle was no big deal and for weeks, it wasn't. Until I came out last Thursday to find this...
I'm broke so I went the cheap route and replaced the upper and lower hoses then refilled with 5 quarts of distilled water and 5 quarts of coolant. Had I known what lay ahead of me, I would have tested with 10 quarts of distilled water first, dealing with coolant is a PITA and the water costs less than $0.25 per quart while anti-freeze is between $4 and $5 a quart. Needless to say, the hoses didn't fix my problem so I drained the coolant into a bucket and replaced the thermostat and thermo housing/gasket, filled with just water this time and it was still leaking. Finally, I replaced the pump (TruFlow from NAPA, $38), filled with water and voila, no more leak. I drained the water and filtered the new coolant mixture I had drained and saved after replacing the hoses (used one of those micro-filter coffee baskets). Filled her back up and she hasn't dripped since, even after sitting in L.A. traffic for over an hour with an ambient in the mid-80s.
I'm broke so I went the cheap route and replaced the upper and lower hoses then refilled with 5 quarts of distilled water and 5 quarts of coolant. Had I known what lay ahead of me, I would have tested with 10 quarts of distilled water first, dealing with coolant is a PITA and the water costs less than $0.25 per quart while anti-freeze is between $4 and $5 a quart. Needless to say, the hoses didn't fix my problem so I drained the coolant into a bucket and replaced the thermostat and thermo housing/gasket, filled with just water this time and it was still leaking. Finally, I replaced the pump (TruFlow from NAPA, $38), filled with water and voila, no more leak. I drained the water and filtered the new coolant mixture I had drained and saved after replacing the hoses (used one of those micro-filter coffee baskets). Filled her back up and she hasn't dripped since, even after sitting in L.A. traffic for over an hour with an ambient in the mid-80s.
#12
Junior Member
Thread Starter
Join Date: Jan 2012
Posts: 58
Likes: 0
Received 0 Likes
on
0 Posts
Model: Cherokee
sorry for the delay. so i finally could see that the water pump was leaking somewhere behind the pulley. i went ahead and changed the water pump, thermostat, and while in there, noticed my radiator was rotting away so i replaced that too, along with the serpentine belt. that night i took the jeep out to a field, got drunk, and did donuts until the water temp was in the red zone. then i let it cool off and went for round two and three. she managed to hold it together and not blow, so i guess my work was good, but there is no telling what i may have ruined otherwise. thanks for the help people oh and someone asked, i'm in greensboro, nc.
