Id these plugs please.
#5
::CF Moderator::
Join Date: Aug 2011
Location: Prescott, Az
Posts: 43,863
Received 1,524 Likes
on
1,236 Posts
Year: 1990
Model: Cherokee (XJ)
Engine: 4.0

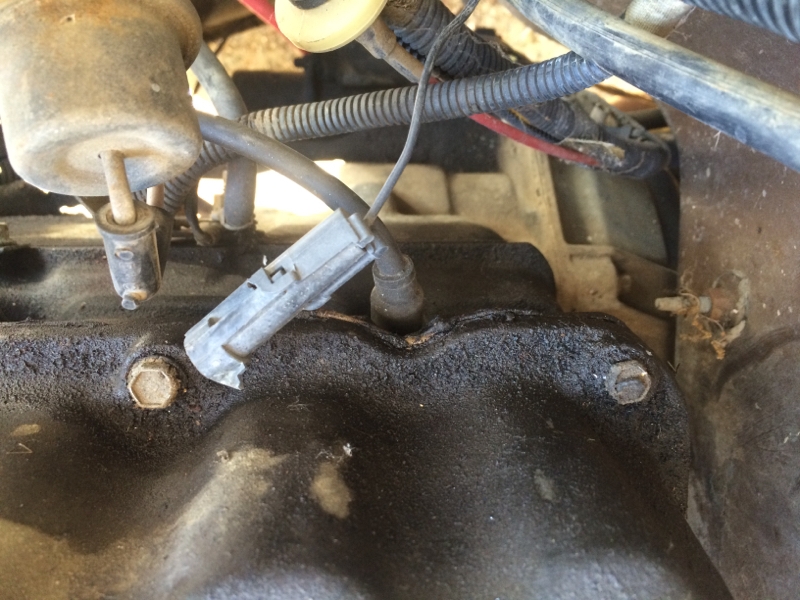

First photo shows underhood light plug.

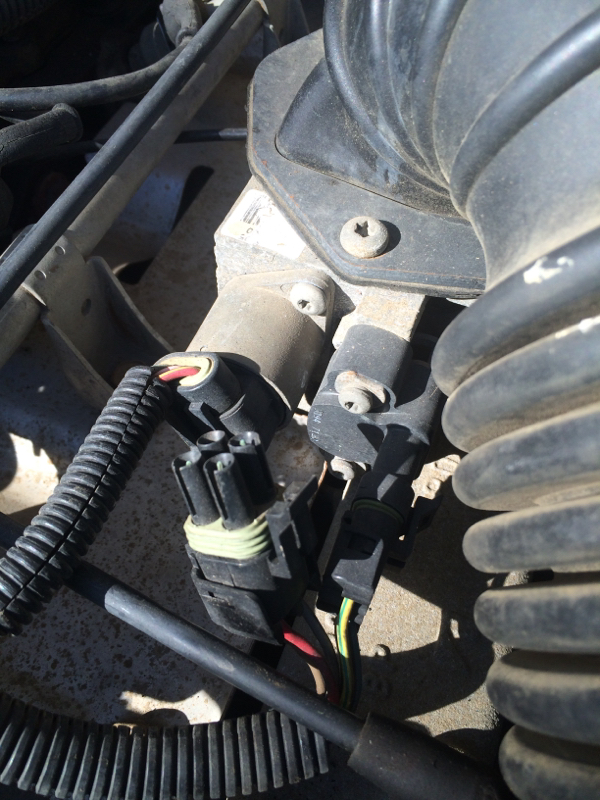

Second photo shows the TPS plug for automatic trans equipped vehicles.
You need to visit here and do Tips 1 through 5.
www.cruiser54.com
Second photo shows the TPS plug for automatic trans equipped vehicles.
You need to visit here and do Tips 1 through 5.
www.cruiser54.com
#6
Member
Join Date: Sep 2009
Location: Rochester, MI
Posts: 198
Likes: 0
Received 5 Likes
on
5 Posts
Model: Cherokee
First photo shows underhood light plug.
Second photo shows the TPS plug for automatic trans equipped vehicles.
You need to visit here and do Tips 1 through 5.
www.cruiser54.com
Second photo shows the TPS plug for automatic trans equipped vehicles.
You need to visit here and do Tips 1 through 5.
www.cruiser54.com
#7
::CF Moderator::
Join Date: Aug 2011
Location: Prescott, Az
Posts: 43,863
Received 1,524 Likes
on
1,236 Posts
Year: 1990
Model: Cherokee (XJ)
Engine: 4.0
All the components listed below ground at the dipstick tube stud:
Distributor Sync Sensor, TCU main ground, TCU “Shift Point Logic”, Ignition Control Module, Fuel Injectors, ECU main ground (which other engine sensors ground through, including the Oxygen sensor, Knock Sensor, Cruise Control and Transmission Sync signal. All extremely important stuff.
The factory was aware of the issues with this ground point and addressed it by suggesting the following:
