Heater control
Hey guys, hoping to gather some information before i dive into this. My heater control works, but doesn't change air flow direction between vent, defrost and the 3rd option. Blows hot, but fan feels like it could be replaced. Is this a simple cable drive to take a look at or???
11-21-2013, 07:09 AM
#3
::CF Moderator::
Join Date: Aug 2011
Location: Prescott, Az
Posts: 43,875
Received 1,526 Likes
on
1,238 Posts
Year: 1990
Model: Cherokee (XJ)
Engine: 4.0

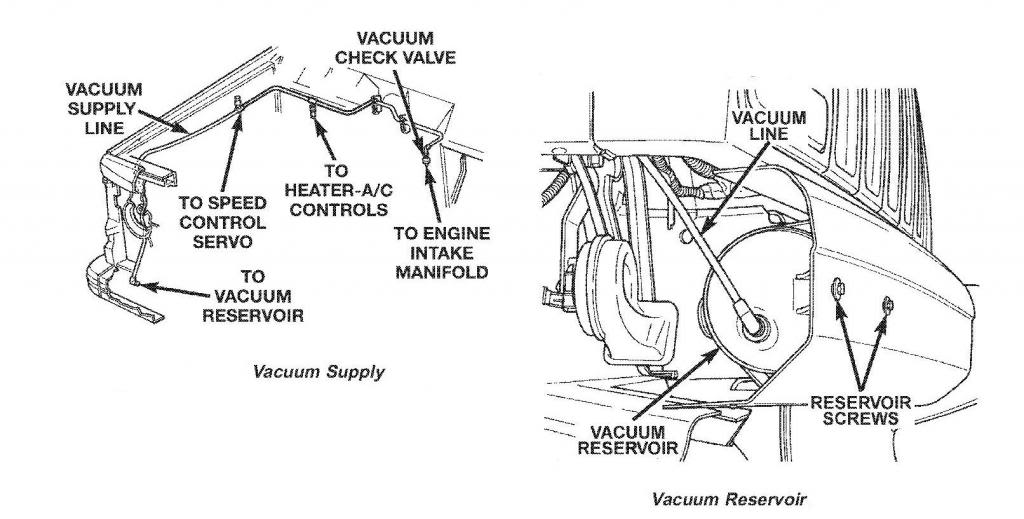

Check out these vacuum lines.
11-21-2013, 09:51 AM
#4
Member
Join Date: Nov 2013
Location: Alaska
Posts: 111
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1988
Model: Cherokee
Engine: 4.0L In Line 6
One of those Mity Vac hand pumps is one of the best diagnostic tools you could ever waste money on. Besides finding a leak, you can check operation of each actuator and the selector valve.
11-21-2013, 10:27 AM
#5
Member
Thread Starter
Join Date: Mar 2010
Location: Bothell
Posts: 226
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1989
Model: Cherokee
Engine: 4.0 I6
Trending Topics
11-21-2013, 05:42 PM
#8
::CF Moderator::
Join Date: Aug 2011
Location: Prescott, Az
Posts: 43,875
Received 1,526 Likes
on
1,238 Posts
Year: 1990
Model: Cherokee (XJ)
Engine: 4.0
11-21-2013, 06:10 PM
#9
CF Veteran
Join Date: Aug 2010
Location: Canton, MI
Posts: 8,357
Likes: 0
Received 82 Likes
on
67 Posts
Year: 1999
Model: Cherokee
Engine: 4.0
Here's one of my famous photos that appeared on the cover of JP Magazine.

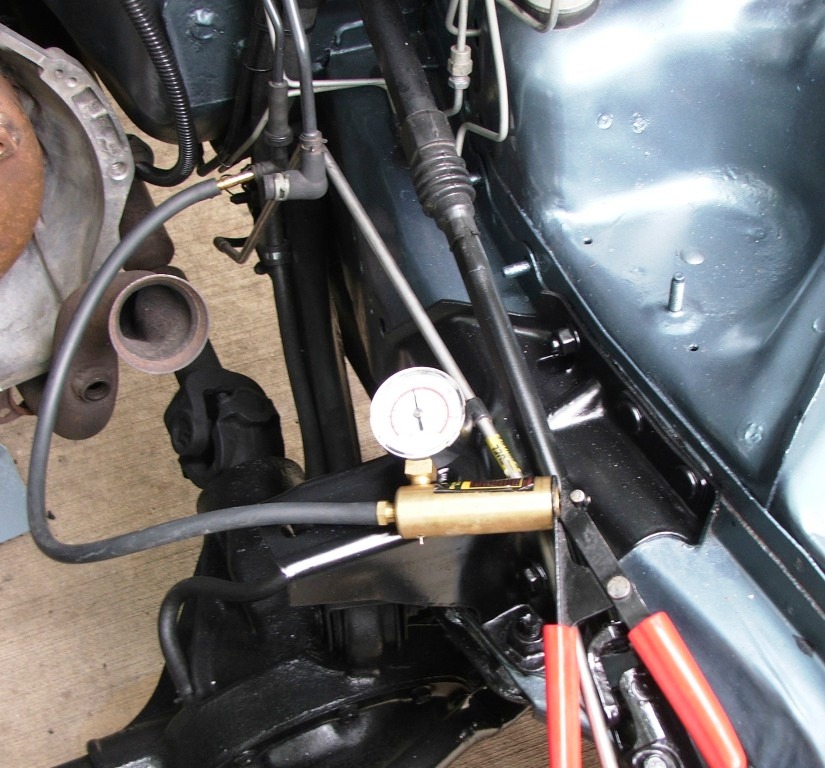

Testing the HVAC/Cruise Control vacuum system with a Harbor Freight hand vacuum pump.
Testing the HVAC/Cruise Control vacuum system with a Harbor Freight hand vacuum pump.
11-22-2013, 05:33 AM
#11
::CF Moderator::
Join Date: Aug 2011
Location: Prescott, Az
Posts: 43,875
Received 1,526 Likes
on
1,238 Posts
Year: 1990
Model: Cherokee (XJ)
Engine: 4.0
About $30 IIRC. You don't HAVE to have one to diagnose your system. Simply put your finger over a disconnected hose in your system and see if vacuum is present by sticking you finger over the end. Start at teh fitting closest to the firewall.
11-22-2013, 07:24 AM
#12
CF Veteran
Join Date: Aug 2010
Location: Canton, MI
Posts: 8,357
Likes: 0
Received 82 Likes
on
67 Posts
Year: 1999
Model: Cherokee
Engine: 4.0
04-07-2015, 03:51 PM
#14
::CF Moderator::
Join Date: Aug 2011
Location: Prescott, Az
Posts: 43,875
Received 1,526 Likes
on
1,238 Posts
Year: 1990
Model: Cherokee (XJ)
Engine: 4.0
04-07-2015, 06:33 PM
#15
CF Veteran
Join Date: Aug 2010
Location: Canton, MI
Posts: 8,357
Likes: 0
Received 82 Likes
on
67 Posts
Year: 1999
Model: Cherokee
Engine: 4.0
Here's a whole bunch of vacuum pics.
Open the link, click the image to make it larger, then click it again for larger yet.
https://www.cherokeeforum.com/g/album/3212409
Cruiser and I steal pics from one another. LOL
Open the link, click the image to make it larger, then click it again for larger yet.
https://www.cherokeeforum.com/g/album/3212409
Cruiser and I steal pics from one another. LOL
