The drivers door window on my '95 XJ would not roll up. The crank handle turned but just skipped in the regulator. I'll skip the door disassembly part and get right to the rehabbing the regulator.

With the regulator on the bench first thing I did was drill off the flanges of the circular staking that holds the two halves of gear box together. I only took off the top of the flanges and did not drill all the way through.I stopped flush with the surface of the gear box. That left metal that was need for aligning the case halves come time for reassembly. Next was clean up and grease the gear box innards and set the halves aside for now.

Next I used a screw driver and needle nosed pliers to gently splay the ends of the regulator split tube / cable guide and then pulled the cable out. As suspected the tail end of the cable was rusty and worn where the window crank gear teeth meshed with the coil cable when the window was all the way down. The head end of the cable is pristine so all that was needed to get it going again was to swap ends.

The head assembly is two parts, a plate which is punch staked to the butterfly and the butterfly which is screwed onto and firmly clamped to the cable. The butterfly will NOT un screw from the cable. Period.

Next order of business was to set it up in the vise and grind the heads off of the two mushroom punch stakes that hold the head plate to the butterfly. I used a 2 inch 80 grit sanding disc to take off most of the mushroom head off and switched to a 120 grit to not take off too much at the the finish line. With the head plate removed from the butterfly I set it the butterfly up in the vise and carefully center punched the two spot welds in the butterfly's waist located next to where it wraps around the cable. Accuracy was important as the room for error is small. I pilot drilled all the way through with a #40 drill bit and then punched the two holes up a size with a #30 and used a stiff putty knife to spread the butterfly open just enough to loosen it its grip on the cable so it could be unscrewed from the pristine end and reinstalled on the rusty end.

I screwed the butterfly onto the rusty end and clamped it back tight with a pair of needle nosed vise grips. Small steel screws and nuts through the holes would have been a great replacement for the two spot welds that were drilled out but I didn't have any so I used two solid rivets. Holding the pieces and riveting requires three hands. I only have two so the results while effective are not pretty.

Fit checking the cable in the split tube revealed that the rivet heads and tails where hitting the split tube and needed a little relieving with a Dremel.

Next up was put the head plate back on the butterfly. Before I did that I used a larger drill bit to cut a chamfer in the the holes in the butterfly wings where the hollow stumps of the two mushroom stakes of the head plate fit into the holes of the butterfly and then I used tapered punch to stake / spread those hollow stumps out into the chamfer. Sanding the galvanizing off the mating faces of the butterfly and head head plate and then slapping a layer of J-B weld between them would have been an effective and pretty back up to the staking but I didn't have any J-B Weld so I put in solid rivets instead. Then I sanded the heads and tails down for clearance.

Next was put the gear box halves back on the split tube. The tube has a pair of indexing bumps that engage small cut outs in the box and it can only go together one way. I like it when they make things stupid proof. I put the gear box halves on the split tube and clamped them together with a pair of vise grips and used four short 1/4 inch bolts and nuts to replace the flanges of the circular staking that was drilled off.

Bench test complete I threw some epoxy paint on the raw metal surfaces and squeezed the ends of the split tube back to what they were in the beginning.

The regulator is in and the window works like it should just in time to keep the rain out of my left ear..


Pics.

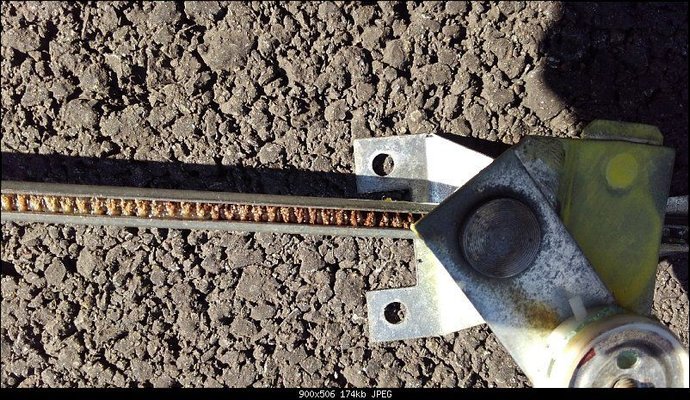

First pic showing the back side of the reassembled regulator gear box with nuts and bolts through the hollow stumps of the mushroom staking that replace the mushroom heads that were ground off.

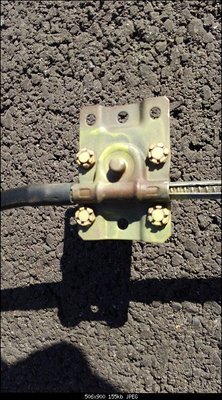

Second pic is to show the rusty end is now attached to the head plate.

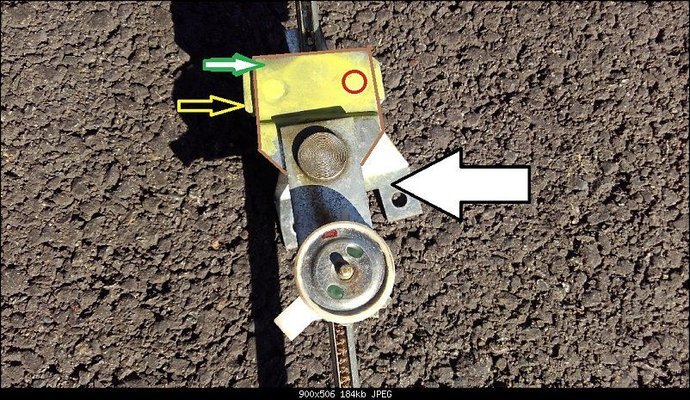

Third pic:



White arrow indicates one of two mounts attached to the split tube that bolts to the entire regulator assembly to the door.
Yellow arrow indicates the butterfly described in the post.
Green arrow indicated head plate described in the post.
Red circle indicates one of the two butterfly to head plate rivets installed through the hollow mushroom stakes as described in the post.

The round white plastic wheel with tab sticking out and a metal center is the remains of the old shattered window. ( don't ask )
