exhaust/intake manifold lower bolt removal
#1
Senior Member
Thread Starter
exhaust/intake manifold lower bolt removal
2000 4.0--I am having a hard time getting the lower bolts out of the manifolds--the ones toward the rear. Is there a trick or particular wrench/tool that will make it easier? Thanks.
#3
CF Veteran
Join Date: Aug 2011
Location: Nor-Cal Coast
Posts: 10,489
Likes: 0
Received 17 Likes
on
17 Posts
Year: 90,84
Model: Cherokee
Engine: 4.0,2.5
I've gotten them with normal stuff. Memory is vague, but that back one, I think I needed to fish just the extension and socket in there on the bolt first, then plug the ratchet head onto the extension. Silly question, you did remove the air cleaner I hope.
#6
Senior Member
Thread Starter
thanks for all the input...yes air cleaner is removed....and I am going to the store to get a ratcheting 14mm tomorrow. I will also take a look from underneath to see if that helps with the last one.
#7
CF Veteran
Join Date: Oct 2009
Location: Fauquier County, Virginia
Posts: 2,867
Likes: 0
Received 15 Likes
on
13 Posts
Year: 1991
Model: Cherokee
Engine: I-6 4.0 HO
Best bet is as mentioned: using a swivel with an extension. It's exactly what I did and worked fine. Use similar for the torque wrench. The swivel will throw the torque value off a little, but I just gave it a few extra foot pounds of love (10-15). Been holding up for years. Good luck!
Trending Topics
#8
CF Veteran
As mentioned extension length is key. They are accessible. I usually throw in studs after a manifold removal reusing the stock convex washers.
#9
Senior Member
Thread Starter
Just wanted to post how I removed the 2 lower bolts towards the back of the engine. I removed the idler pulley bracket for more room, put a wrench on the bolts, then used the butt end of a hammer to push the wrench and break them loose. Once they were broken loose I was able to use the wrench with my hand. I just could not get enough torque on the wrench with my bare hands to break them loose because my arm was extended too far. I also tried from underneath using a swivel head with extensions and a ratchet. It just didn't seem like I was getting the correct angle, and getting a good bite on the bolt head. I was afraid I was going to round off the bolt head.
#10
Junior Member
Join Date: Feb 2015
Location: Northern VA
Posts: 87
Likes: 0
Received 0 Likes
on
0 Posts
Year: 2001
Model: Cherokee
Engine: 4.0
Those bolts were a pain in the butt to get out and back in. I accomplished this by using difference extensions, bought a 3 pack of different lengths to ensure I wouldnt have to make frequent trips to Home Depot if I had the wrong size.
#11
Member
Join Date: Jun 2016
Location: Florida
Posts: 206
Likes: 0
Received 0 Likes
on
0 Posts
Year: 2000
Model: Cherokee
Engine: 4.0

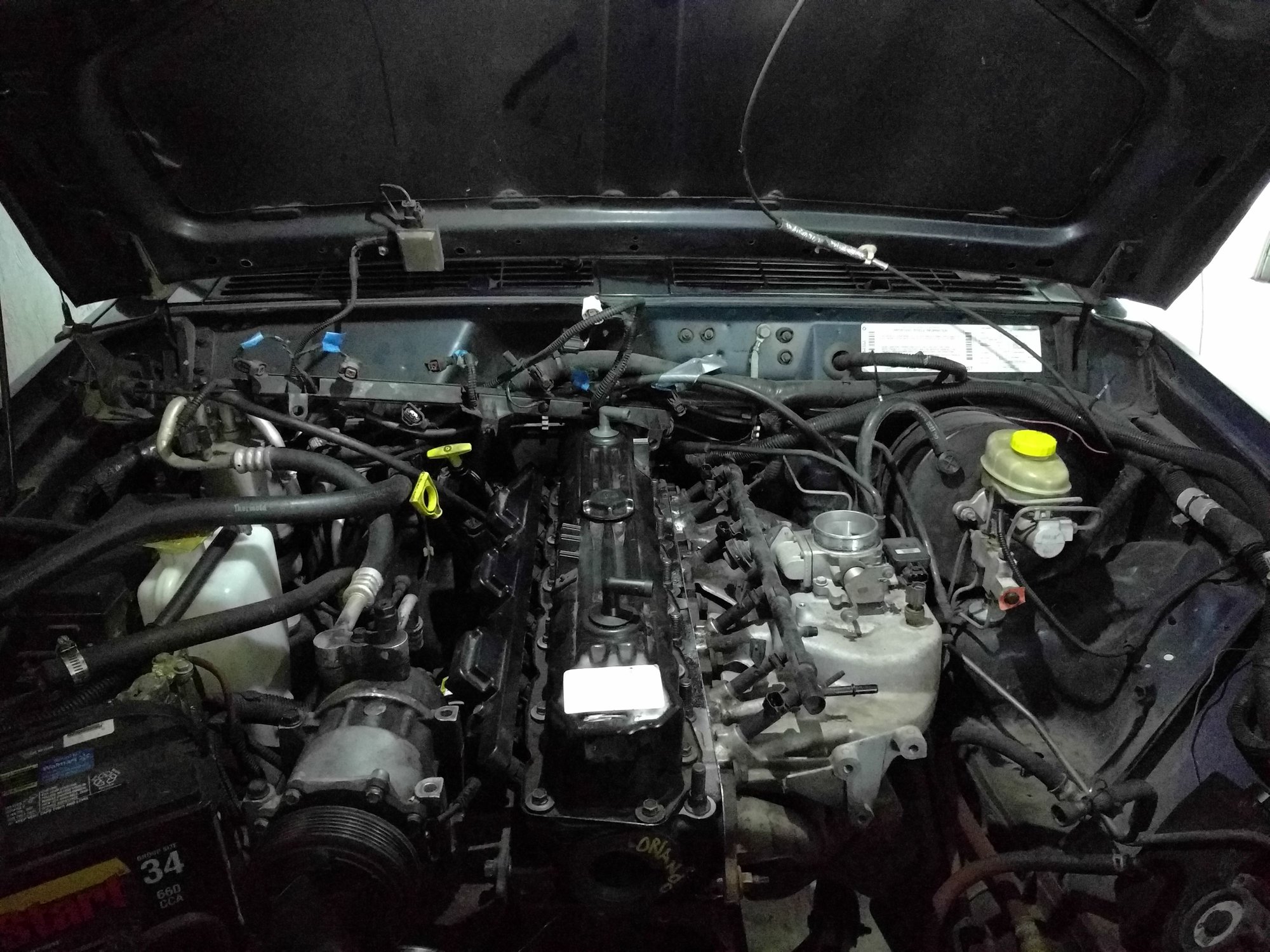

I got lucky with mine. All of them were not on so tight that I couldn't get it off with a 14mm wrench. I had a hard time with the ratchet so I just didn't use it. Good luck fellow previous head crack owner. Mine's starting to look like a complete engine again after getting the intake back on.
