Engine cuts off!
#1
Newbie
Thread Starter
Join Date: Apr 2016
Location: North Carolina
Posts: 12
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1990
Model: Cherokee
Engine: 4.0 Inline
Engine cuts off!
My 90 Cherokee has suddenly decided to quit running! I have fuel to the pressure test port on the injector rail but the darn thing won't run after it cranks over and fires. Have tried to bypass the fuel filter ( broke down on the road) but am not sure how to begin to diagnose the issue. I wonder if it could be the Crankshaft Position Sensor??? Any ideas or help would be appreciated because I am LOST with this one!
#2
::CF Moderator::
Join Date: Aug 2011
Location: Prescott, Az
Posts: 43,867
Received 1,525 Likes
on
1,237 Posts
Year: 1990
Model: Cherokee (XJ)
Engine: 4.0

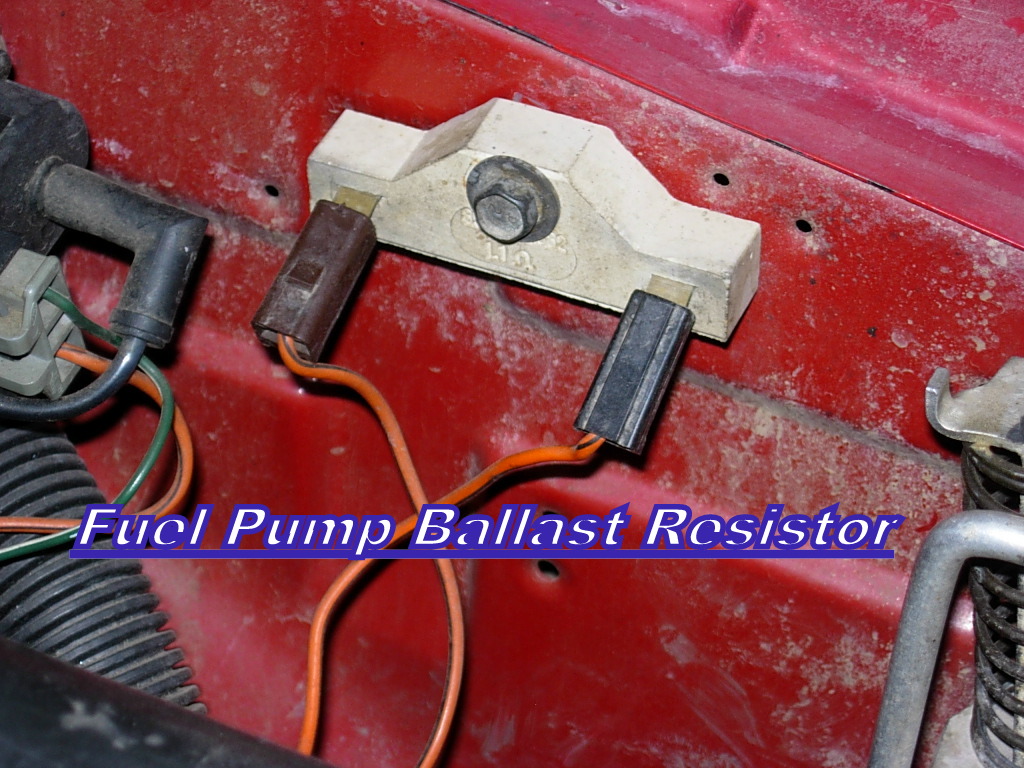

Bill, check the connections on the fuel pump ballast resistor.
#3
Newbie
Thread Starter
Join Date: Apr 2016
Location: North Carolina
Posts: 12
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1990
Model: Cherokee
Engine: 4.0 Inline
Feul Pump Ballast Resistor
WOW! Don't know what the back side of the resistor is supposed to look like but mine has what looks like mud dauber or hornet mud built up around the connector and the resistor spring! I'm going to try to loosen it up and see if cleaning it up will help. If that doesn't help, I'll try replacing it! Let you know what happens and thanks for the help!
#4
Newbie
Thread Starter
Join Date: Apr 2016
Location: North Carolina
Posts: 12
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1990
Model: Cherokee
Engine: 4.0 Inline
Can't find the part at Rock Auto or O'Reilly Auto parts. Any ideas where I can locate one? My Haynes manual doesn't even say a word about it!
#5
Seasoned Member
#6
::CF Moderator::
Join Date: Aug 2011
Location: Prescott, Az
Posts: 43,867
Received 1,525 Likes
on
1,237 Posts
Year: 1990
Model: Cherokee (XJ)
Engine: 4.0
#7
Senior Member
Join Date: Feb 2011
Location: Bel Air, Maryland 21015
Posts: 719
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1995
Model: Cherokee
Engine: 4.0
I had a similar issue on a 95 XJ.
Turn the key .... cranks, fires, but let the key go and it dies.
Turn the key ..... cranks, fires ..... SLOWLY bring the key back to run position until starter disengages and it keeps running ..... take hand off key and it dies.
BAD Ignition Switch.
To test theory I jumped " hot wired " the ignition switch.
Turned key ..... cranks .... fires .... release key ..... keeps running !!!!!
Ordered a replacement Igniton switch and they sent me the wrong part.
Ordered a second replacement ignition switch and again they sent the wrong part.
Dealer told me to give them the VIN number and they would order a switch and it would be the right one for $$$$$$$$$$$$
Installed a toggle switch for ignition jump and now the key is used solely for locking steering and cranking starter.
Turn the key .... cranks, fires, but let the key go and it dies.
Turn the key ..... cranks, fires ..... SLOWLY bring the key back to run position until starter disengages and it keeps running ..... take hand off key and it dies.
BAD Ignition Switch.
To test theory I jumped " hot wired " the ignition switch.
Turned key ..... cranks .... fires .... release key ..... keeps running !!!!!
Ordered a replacement Igniton switch and they sent me the wrong part.
Ordered a second replacement ignition switch and again they sent the wrong part.
Dealer told me to give them the VIN number and they would order a switch and it would be the right one for $$$$$$$$$$$$
Installed a toggle switch for ignition jump and now the key is used solely for locking steering and cranking starter.
Last edited by KD3NE; 04-04-2016 at 07:11 AM.
Trending Topics
#8
Newbie
Thread Starter
Join Date: Apr 2016
Location: North Carolina
Posts: 12
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1990
Model: Cherokee
Engine: 4.0 Inline
Engine Cuts Off! - Update
I checked out the Ballast resistor by bypassing it with a jump wire across the wires....no go. I guess the only thing left to do is replace the CPS. I've heard several say this may be the culprit. I am running out of money and, frankly, patience! Although yesterday was the first time this truck has left me stranded on the road (all the issues so far have happened in the driveway!) it's just a matter of time before I run out of luck AND patience. If i replace the CPS and it still won't run I guess I'll have it towed and let a "professional" take over the worries??
#9
::CF Moderator::
Join Date: Aug 2011
Location: Prescott, Az
Posts: 43,867
Received 1,525 Likes
on
1,237 Posts
Year: 1990
Model: Cherokee (XJ)
Engine: 4.0
I checked out the Ballast resistor by bypassing it with a jump wire across the wires....no go. I guess the only thing left to do is replace the CPS. I've heard several say this may be the culprit. I am running out of money and, frankly, patience! Although yesterday was the first time this truck has left me stranded on the road (all the issues so far have happened in the driveway!) it's just a matter of time before I run out of luck AND patience. If i replace the CPS and it still won't run I guess I'll have it towed and let a "professional" take over the worries??
Go to my website and see how to do these things simply.
#10
CF Veteran
Join Date: Apr 2012
Location: Wisconsin
Posts: 5,302
Likes: 0
Received 19 Likes
on
16 Posts
Model: Cherokee
So it starts and runs, then dies when the key rotates back from "start" to "on"?
Might be the ignition switch, fuel pump fuse or wiring. You could check to see if there's 12V on the ballast resistor Cruiser mentioned with the key ON.
The start relay (below) bypasses that whole shenanigans when the key is in Start, powering the fuel pump directly from the relay terminal.
Once the key rotates back to "on", that relay drops out and power for the fuel pump routes from the fuse, through the ignition switch, to the ballast resistor then to the pump.
Might be the ignition switch, fuel pump fuse or wiring. You could check to see if there's 12V on the ballast resistor Cruiser mentioned with the key ON.
The start relay (below) bypasses that whole shenanigans when the key is in Start, powering the fuel pump directly from the relay terminal.
Once the key rotates back to "on", that relay drops out and power for the fuel pump routes from the fuse, through the ignition switch, to the ballast resistor then to the pump.
Last edited by Radi; 04-06-2016 at 01:18 AM.
#11
Newbie
Thread Starter
Join Date: Apr 2016
Location: North Carolina
Posts: 12
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1990
Model: Cherokee
Engine: 4.0 Inline
Alrighty then.....replaced the CPS and jumper the ballast resistor (while i wait on a new part.....zip, nada...it seems to WANT to start and runs for a nano second but....any other ideas? If not this one will be towed to someone who can figger' it out 'cause I'm out if ideas!
#12
::CF Moderator::
Join Date: Aug 2011
Location: Prescott, Az
Posts: 43,867
Received 1,525 Likes
on
1,237 Posts
Year: 1990
Model: Cherokee (XJ)
Engine: 4.0
Test the fuel pressure yet?
#13
Senior Member
Join Date: Feb 2011
Location: Bel Air, Maryland 21015
Posts: 719
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1995
Model: Cherokee
Engine: 4.0
Before I sent it off to anyone, I sure would be checking that .....
Ignition Switch
Fuel Pressure
I discovered the bad ignition switch by accident, as I was troubleshooting the same symptoms on my sons XJ.
A bad CPS and it won't fire at all ..... or it will fire, run and die.
I've have several bad CPS's over the years and none gave the symptom you described.
Ignition Switch
Fuel Pressure
I discovered the bad ignition switch by accident, as I was troubleshooting the same symptoms on my sons XJ.
A bad CPS and it won't fire at all ..... or it will fire, run and die.
I've have several bad CPS's over the years and none gave the symptom you described.
