Cruise Control not working
#1
Newbie
Thread Starter
Join Date: Dec 2015
Posts: 4
Likes: 0
Received 0 Likes
on
0 Posts
Model: Cherokee
Cruise Control not working
92 Cherokee Cruise Control won't turn on. This is an electrical issue and not mechanical. I think a wire is broken on the switch to turn it on, but have not been able to remove the steering column due to a special tool needed to remove the lock. (No airbag), Is there an easy way to do this or do I need the special tool?
#3
Newbie
Thread Starter
Join Date: Dec 2015
Posts: 4
Likes: 0
Received 0 Likes
on
0 Posts
Model: Cherokee
my CC won't come on when I turn the switch on. I think there is a broken wire in the signal light lever. It worked when I first got the Jeep but it was intermittent, then the cruise lite went off for good. I am wondering how the best way is to get into it to see if it can be repaired. Servo's and vacuum lines are OK.
#4
::CF Moderator::
Join Date: Aug 2011
Location: Prescott, Az
Posts: 43,872
Received 1,526 Likes
on
1,238 Posts
Year: 1990
Model: Cherokee (XJ)
Engine: 4.0
100% sure on the vacuum lines?
What about the one to the switch on the brake pedal?
What about the one to the switch on the brake pedal?
#5
CF Veteran
Join Date: Sep 2009
Location: ☼ Blackhole Sun
Posts: 8,567
Likes: 0
Received 18 Likes
on
16 Posts
Year: My Jeep is a GMC
92 Cherokee Cruise Control won't turn on. This is an electrical issue and not mechanical. I think a wire is broken on the switch to turn it on, but have not been able to remove the steering column due to a special tool needed to remove the lock. (No airbag), Is there an easy way to do this or do I need the special tool?
#6
Senior Member
Join Date: Sep 2008
Location: Sioux Falls, SD
Posts: 897
Likes: 0
Received 12 Likes
on
9 Posts
Year: 1999
Model: Cherokee(XJ)
Engine: 4.0L
99.9% sure it's the wires at the base of the turn signal stalk. I fixed mine with an old USB cable years ago. GM used solid-core wires in an area that flexes. fail. Simply remove the turn signal stalk and solder a new 6 foot USB cable wires to the contacts. Splice into the original at the base of the steering column and you will be good to go. No pulling the wheel needed.
Use a coathanger to pull the new harness down the column.
Fixed my 84, 96 and 92s cruise.
Use a coathanger to pull the new harness down the column.
Fixed my 84, 96 and 92s cruise.
#7
::CF Moderator::
Join Date: Aug 2011
Location: Prescott, Az
Posts: 43,872
Received 1,526 Likes
on
1,238 Posts
Year: 1990
Model: Cherokee (XJ)
Engine: 4.0

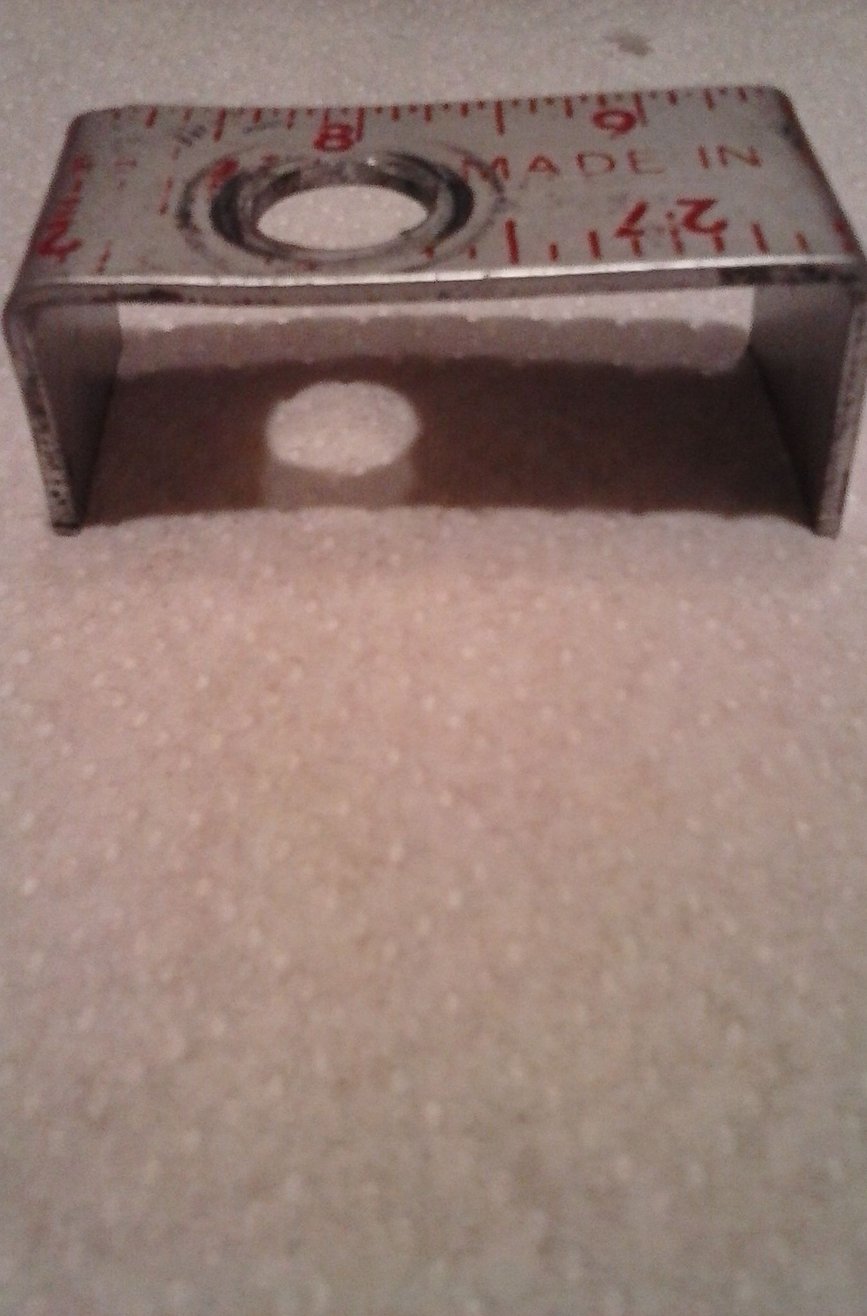

Grab a piece of scrap aluminum about 2" wide 1/8" thick and 6" long. Bend it in to a "C" & drill a hole so it will fit over the column shaft. Install and tighten the steering wheel nut, once you compress the spring a little remove the retaining clip. Installation is simply the reverse.
Trending Topics
#9
Senior Member
99.9% sure it's the wires at the base of the turn signal stalk. I fixed mine with an old USB cable years ago. GM used solid-core wires in an area that flexes. fail. Simply remove the turn signal stalk and solder a new 6 foot USB cable wires to the contacts. Splice into the original at the base of the steering column and you will be good to go. No pulling the wheel needed.
Use a coathanger to pull the new harness down the column.
Fixed my 84, 96 and 92s cruise.
Use a coathanger to pull the new harness down the column.
Fixed my 84, 96 and 92s cruise.
Thanks.
#10
Senior Member
[QUOTE=Turbo X_J;3189339]If I remember at the time the Kent Moore tool was almost $200, I found the material (a ruler) at the shop I was employed at.
Seems the OTC tool is ~$60 now.
QUOTE]
And your tool was proudly made in the USA too!
Seems the OTC tool is ~$60 now.
QUOTE]
And your tool was proudly made in the USA too!
