broken bolt
#1
Junior Member
Thread Starter
Join Date: Mar 2009
Posts: 50
Likes: 0
Received 0 Likes
on
0 Posts
Model: Cherokee
broken bolt
i over tightened a bolt for the valve cover its in the back side of the valve cover i put the bolt head back on because i had just change the gasket(back last summer this happened) now im noticing wetness around the spark splug holes and i think its the valve cover gasket
how would i go about getting the valve cover off again with that broken bolt in the back?
i heard of drill and extract method but i am unsure on how to do it
any help would be greatly appreciated
i almost forgot
i have a similar problem with the thermostat housing bottom bolt (the one closest to passenger side of engine)
i originally put a different type of bolt and it wasnt leaking but since this all happened last summer i had to put my thermostat back in during the winter and its been leaking ever since
to describe exactly what happened i over tightened the bolt and the back of the hole where the bolt goes broke off its a little piece but it seems to leak coolant down onto the water pump being that its above it
the spot is very hard to get to but i am tired of the nasty smell of burning coolant i also think its starting to cause failing in the system cause my top hose looks a little burnt where it attaches onto the thermostat housing

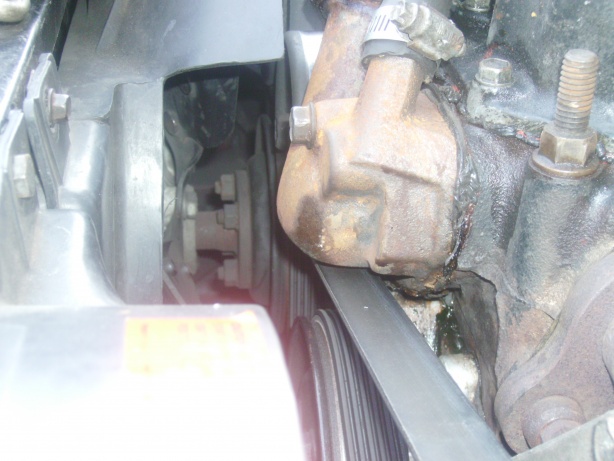

note: the nasty darkesh stuff ontop of the t-housing thats mainly where it leaks but when engine is on it can splash!
please help!!!
how would i go about getting the valve cover off again with that broken bolt in the back?
i heard of drill and extract method but i am unsure on how to do it
any help would be greatly appreciated
i almost forgot
i have a similar problem with the thermostat housing bottom bolt (the one closest to passenger side of engine)
i originally put a different type of bolt and it wasnt leaking but since this all happened last summer i had to put my thermostat back in during the winter and its been leaking ever since
to describe exactly what happened i over tightened the bolt and the back of the hole where the bolt goes broke off its a little piece but it seems to leak coolant down onto the water pump being that its above it
the spot is very hard to get to but i am tired of the nasty smell of burning coolant i also think its starting to cause failing in the system cause my top hose looks a little burnt where it attaches onto the thermostat housing
note: the nasty darkesh stuff ontop of the t-housing thats mainly where it leaks but when engine is on it can splash!
please help!!!
Last edited by SINCITY192; 03-28-2009 at 06:17 PM.
#4
Junior Member
Thread Starter
Join Date: Mar 2009
Posts: 50
Likes: 0
Received 0 Likes
on
0 Posts
Model: Cherokee
i just dont know the routine to fix the hole how do u tap out the hole?
thanks!!!
#5
Senior Member
Join Date: Aug 2008
Location: tan house white shutters key's under the flower pot
Posts: 971
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1996
Model: Cherokee
Engine: 4.0
you have to extract the broken bolt first. drill a hole in the center, and use an extractor.
you might wanna invest in a torque wrench
you might wanna invest in a torque wrench
#6
Junior Member
Thread Starter
Join Date: Mar 2009
Posts: 50
Likes: 0
Received 0 Likes
on
0 Posts
Model: Cherokee
#7
Senior Member
Join Date: Aug 2008
Location: tan house white shutters key's under the flower pot
Posts: 971
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1996
Model: Cherokee
Engine: 4.0
there's many different types and measurements. i have 3. you just need a simple click style, you don't want one with a gauge on it. i'd buy a 3/8 drive ft/lb that starts at 20, and i'd buy an in/lb for the smaller stuff.
as those valve cover bolts are rated at 55 in/lbs. and the t stat is around 20 ft/lbs, don't remember the exact torque on that one off hand. sounds like you're over tightening bolts and breaking them.
Trending Topics
#8
Junior Member
Thread Starter
Join Date: Mar 2009
Posts: 50
Likes: 0
Received 0 Likes
on
0 Posts
Model: Cherokee
i jsut wanna have everything i need
thanks
#10
Junior Member
Thread Starter
Join Date: Mar 2009
Posts: 50
Likes: 0
Received 0 Likes
on
0 Posts
Model: Cherokee
#12
CF Veteran
Join Date: Nov 2008
Location: Paso Robles Ca
Posts: 2,473
Likes: 0
Received 9 Likes
on
9 Posts
Year: 1991
Model: Cherokee
Engine: 4.0
something like this should do the job if you have a drill motor
this one is to much but it will give you an idea of what to look for
http://www.toolbarn.com/product/milwaukee/49-22-8510/
this one is to much but it will give you an idea of what to look for
http://www.toolbarn.com/product/milwaukee/49-22-8510/
#13
Senior Member
Join Date: Aug 2008
Location: tan house white shutters key's under the flower pot
Posts: 971
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1996
Model: Cherokee
Engine: 4.0
i've used every extractor and easy out there is. and this is hands down the best style. these work great.
http://www.mactools.com/popup.aspx?s...large/10SE.jpg
http://www.mactools.com/popup.aspx?s...large/10SE.jpg
#14
Junior Member
Thread Starter
Join Date: Mar 2009
Posts: 50
Likes: 0
Received 0 Likes
on
0 Posts
Model: Cherokee
thanks guy that does pretty much sum it up if i cant get the job done after that i need to stop trying to fix my jeep lol
but thanks again i just seen the drill rangle extention for like 22 at harbor frieght, now that i kno that i need it i might as well get it with the impact drill im ordering electric though
and those extractors look like the best the pic soeaks for itself to tell u the truth. i guess that can go on a wrench or even the drill it self
great advice seriously thanks
but thanks again i just seen the drill rangle extention for like 22 at harbor frieght, now that i kno that i need it i might as well get it with the impact drill im ordering electric though
and those extractors look like the best the pic soeaks for itself to tell u the truth. i guess that can go on a wrench or even the drill it self
great advice seriously thanks
