Broke tranny line HELP!
01-07-2014, 08:01 PM
#1
Member
Thread Starter
Join Date: Sep 2012
Location: JoeltonTn
Posts: 114
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1997
Model: Cherokee
Engine: 4.8
Broke tranny line HELP!

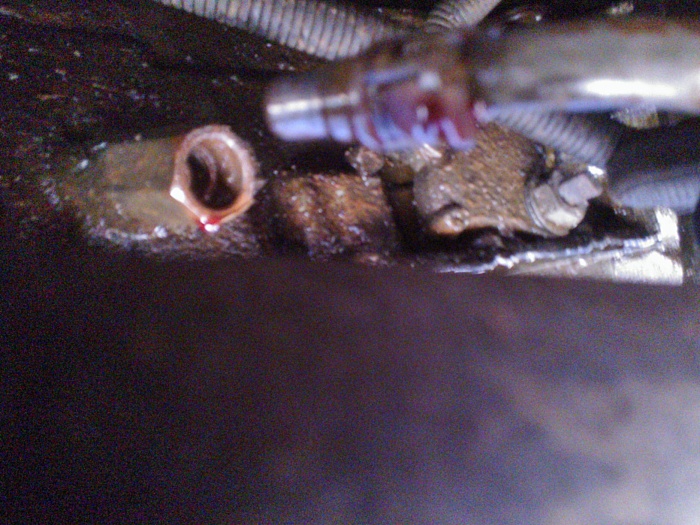

So today im on my way to school and i see this old military truck so i pull off the little turn around place to take a picture of it and i start to drive again and i notice a lot of tranny fluid on this patch of ice. Well i drive into a parking lot and look under neath and my Jeep is Vomitting tranny fluid everywhere. I probably lost all my fluid. Well i got it towed home and I found out that the passenger side towards the rear, one of lines completely came out. Ill post a picture in a few mins but does anyone know if i just need a new line or what? Does the extremly cold temperatures have anything to do with it?
01-07-2014, 08:40 PM
#6
CF Veteran
Join Date: Jan 2013
Location: west chester, pa
Posts: 19,216
Likes: 0
Received 39 Likes
on
35 Posts
Year: 1999
Engine: 4.0
It appear u are missing the plastic retainer. U need this. Dorman 800-714
http://www.dormanproducts.com/gsearc...er%20Connector
http://www.dormanproducts.com/gsearc...er%20Connector
Trending Topics
01-07-2014, 09:34 PM
#8
Banned
Join Date: Oct 2012
Location: USA
Posts: 1,744
Likes: 0
Received 1 Like
on
1 Post
Year: 1998
Model: Cherokee
Engine: 4.0L i6
It appear u are missing the plastic retainer. U need this. Dorman 800-714
http://www.dormanproducts.com/gsearc...er%20Connector
http://www.dormanproducts.com/gsearc...er%20Connector
I hope he pulled over once he saw the leak, and didn't fry the tranny.
01-07-2014, 10:08 PM
#10
Member
Join Date: Dec 2013
Location: PA
Posts: 123
Likes: 0
Received 0 Likes
on
0 Posts
Year: 99
Model: Cherokee
Engine: 4.0
So would installing a fitting into the tranny and cutting off the connector on the line and splicing with a hose and clamp be better then the plastic fitting?
Just thinking out loud here..
Just thinking out loud here..
01-08-2014, 12:06 PM
#12
CF Veteran
Join Date: Aug 2010
Location: Canton, MI
Posts: 8,357
Likes: 0
Received 82 Likes
on
67 Posts
Year: 1999
Model: Cherokee
Engine: 4.0
I recommend changing both cooler line connector fittings. Dorman product, available at O'Reilly, Advance auto parts, etc. They come wih new retainer clips and o-rings.
They're a bit hard to get at but using an open end wrench they are easy to change.
Use Scotchbrite pads to polish up the tube ends and apply a little ATF to them before inserting in the connectors.
They're a bit hard to get at but using an open end wrench they are easy to change.
Use Scotchbrite pads to polish up the tube ends and apply a little ATF to them before inserting in the connectors.
01-08-2014, 12:10 PM
#13
CF Veteran
Join Date: Jan 2013
Location: west chester, pa
Posts: 19,216
Likes: 0
Received 39 Likes
on
35 Posts
Year: 1999
Engine: 4.0
I recommend changing both cooler line connector fittings. Dorman product, available at O'Reilly, Advance auto parts, etc. They come wih new retainer clips and o-rings. They're a bit hard to get at but using an open end wrench they are easy to change. Use Scotchbrite pads to polish up the tube ends and apply a little ATF to them before inserting in the connectors.
