brake phantoms
Alright, gear heads, this is a new one for me.
87 wagoneer limited, Dana 30/35
When I press the brakes, I near enough need to stand on them to get anything done. Since I can't hear/see any vacuum leak at the booster, I'm going to go ahead and say that I should bleed the brakes and give it another go. Easy enough.

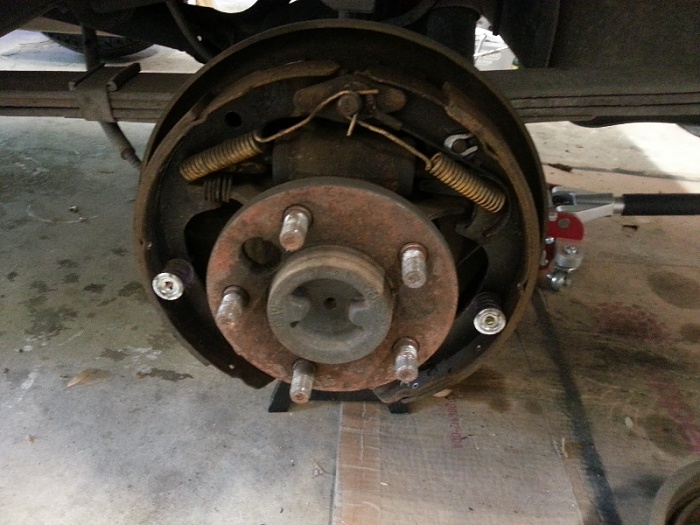

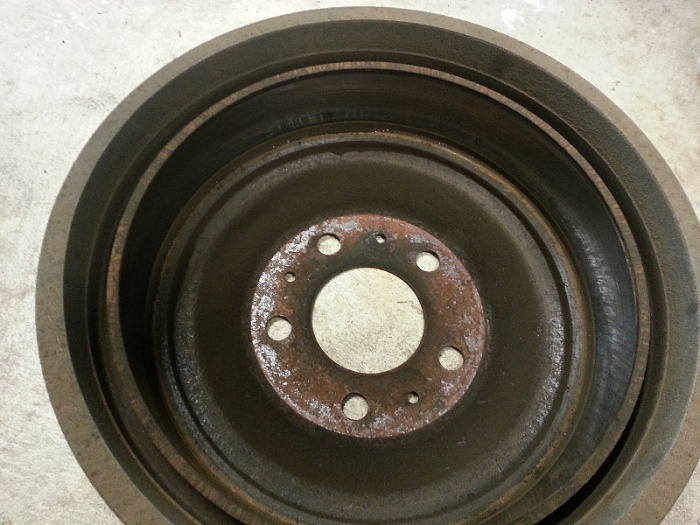

My major issue is the grinding and jerking when I jump on the brakes. The jerking is not consistent. It's a craps shoot as to which side it will jerk to or whether it'll happen at all. I've checked all 4 brakes and they all have smooth drum/rotor surfaces and at least 1/2 the brake material left. Didn't take pics of the fronts, but here are the rears. It sound and feels like it's coming from the rear, but who knows.
Any idea where I should start looking? I'm kind of baffled...
87 wagoneer limited, Dana 30/35
When I press the brakes, I near enough need to stand on them to get anything done. Since I can't hear/see any vacuum leak at the booster, I'm going to go ahead and say that I should bleed the brakes and give it another go. Easy enough.
My major issue is the grinding and jerking when I jump on the brakes. The jerking is not consistent. It's a craps shoot as to which side it will jerk to or whether it'll happen at all. I've checked all 4 brakes and they all have smooth drum/rotor surfaces and at least 1/2 the brake material left. Didn't take pics of the fronts, but here are the rears. It sound and feels like it's coming from the rear, but who knows.
Any idea where I should start looking? I'm kind of baffled...
#2
::CF Moderator::
Join Date: Aug 2011
Location: Prescott, Az
Posts: 43,862
Received 1,524 Likes
on
1,236 Posts
Year: 1990
Model: Cherokee (XJ)
Engine: 4.0
Adjust your rear shoes.
#3
Seasoned Member
Thread Starter
Join Date: Jan 2011
Location: Austin
Posts: 302
Likes: 0
Received 4 Likes
on
3 Posts
Year: 1987
Model: Wagoneer
Engine: 4.0
Of course it was something so simple... When I did the rears, I did adjust them, but when I looked at them last night, the driver's side shoes weren't even close. Now that they're adjusted, much better.
Shouldn't they self-adjust as they wear? Or do I need to check them regularly?
Shouldn't they self-adjust as they wear? Or do I need to check them regularly?
#5
::CF Moderator::
Join Date: Aug 2011
Location: Prescott, Az
Posts: 43,862
Received 1,524 Likes
on
1,236 Posts
Year: 1990
Model: Cherokee (XJ)
Engine: 4.0
#7
CF Veteran
Join Date: Apr 2009
Posts: 4,734
Likes: 0
Received 9 Likes
on
9 Posts
Year: 2015, 2012
Model: Grand Cherokee (WK2)
Engine: 3.6L
Your self-adjuster pin and star wheel should be clean and dry on the threads. They should turn very easily when they are off the brake shoes.
Safely backing up at a good clip and applying the brakes medium hard a couple of times every once in a while should keep them adjusted.
Safely backing up at a good clip and applying the brakes medium hard a couple of times every once in a while should keep them adjusted.
Trending Topics
#8
::CF Moderator::
Join Date: Aug 2011
Location: Prescott, Az
Posts: 43,862
Received 1,524 Likes
on
1,236 Posts
Year: 1990
Model: Cherokee (XJ)
Engine: 4.0
#9
CF Veteran
Join Date: Aug 2011
Location: Nor-Cal Coast
Posts: 10,489
Likes: 0
Received 17 Likes
on
17 Posts
Year: 90,84
Model: Cherokee
Engine: 4.0,2.5
letinsh, please try this. With the engine running, feel the petal. Close your eyes, go to a happy Zen place, (with RT), and gauge how the pedal feels. NOW, hold your foot down firm, and shift from drive to reverse four or five times. (so the brake shoes pull back and forth on their mount's, working the auto-adjust lever on the star wheel). Now feel it again. Any change?
Last edited by DFlintstone; 05-21-2014 at 01:32 AM.
#10
CF Veteran
Have you checked the condition of your brake fluid recently? Pull the cover off your master cylinder, if it looks like pudding in there...
#11
CF Veteran
Join Date: Mar 2010
Location: Broward County Fl.
Posts: 47,923
Likes: 0
Received 22 Likes
on
22 Posts
Year: 1989 xj sport 2dr
Model: Cherokee
Engine: 12 hole bosch Injectors
Alright, gear heads, this is a new one for me.
87 wagoneer limited, Dana 30/35
When I press the brakes, I near enough need to stand on them to get anything done. Since I can't hear/see any vacuum leak at the booster, I'm going to go ahead and say that I should bleed the brakes and give it another go. Easy enough.
My major issue is the grinding and jerking when I jump on the brakes. The jerking is not consistent. It's a craps shoot as to which side it will jerk to or whether it'll happen at all. I've checked all 4 brakes and they all have smooth drum/rotor surfaces and at least 1/2 the brake material left. Didn't take pics of the fronts, but here are the rears. It sound and feels like it's coming from the rear, but who knows.
Any idea where I should start looking? I'm kind of baffled...
Attachment 243011
Attachment 243012
Attachment 243013
Attachment 243014
87 wagoneer limited, Dana 30/35
When I press the brakes, I near enough need to stand on them to get anything done. Since I can't hear/see any vacuum leak at the booster, I'm going to go ahead and say that I should bleed the brakes and give it another go. Easy enough.
My major issue is the grinding and jerking when I jump on the brakes. The jerking is not consistent. It's a craps shoot as to which side it will jerk to or whether it'll happen at all. I've checked all 4 brakes and they all have smooth drum/rotor surfaces and at least 1/2 the brake material left. Didn't take pics of the fronts, but here are the rears. It sound and feels like it's coming from the rear, but who knows.
Any idea where I should start looking? I'm kind of baffled...
Attachment 243011
Attachment 243012
Attachment 243013
Attachment 243014
#13
CF Veteran
Join Date: Oct 2011
Location: Bakersfield CA
Posts: 1,268
Likes: 0
Received 1 Like
on
1 Post
Year: 1990
Model: Cherokee (XJ)
Engine: 4.0
"If" this problem persist, My question is do you have ABS on that thing?
Pulling ,jerking, hard pedal are some of the symptoms of ABS failure on the old RENIX model.
Pulling ,jerking, hard pedal are some of the symptoms of ABS failure on the old RENIX model.
#14
Seasoned Member
Thread Starter
Join Date: Jan 2011
Location: Austin
Posts: 302
Likes: 0
Received 4 Likes
on
3 Posts
Year: 1987
Model: Wagoneer
Engine: 4.0
Thanks for all the awesome replies. As I mentioned to cruiser54 in my build thread, my wife is leaving the country for 3 weeks in July so the heep's going up on blocks and getting some attention. Before all this popped off, I already had plans to upgrade to a zj booster and master cylinder, replace those aforementioned front rubber brake lines, flush the system and bleed the brakes. My other want is to swap out a Durango steering box with mine, because mine leaks and is sloppy.
So to answer some questions, yes, I'm swapping my brake lines; yes, the fluid in my master cylinder has a distinct mud color to it (rust in the lines?) The slop in my steering is in the box (if you check my build thread, the rest of the steering is new).
I guess what I've learned is that I should perform these upgrades and maintenance and then chase my phantoms!
Thanks, again, for all the suggestions!
Oh, yeah. No, I don't have ABS.
So to answer some questions, yes, I'm swapping my brake lines; yes, the fluid in my master cylinder has a distinct mud color to it (rust in the lines?) The slop in my steering is in the box (if you check my build thread, the rest of the steering is new).
I guess what I've learned is that I should perform these upgrades and maintenance and then chase my phantoms!
Thanks, again, for all the suggestions!
Oh, yeah. No, I don't have ABS.
