AW4 issues...
Hi everyone. New to the site, and glad I found it!
I could use some help from some more, experienced, Cherokee owners.
I just bought an 88 from a friend, the issue is that it starts out in 3rd gear when I put it in drive... I think the tranny is ok though. If I put it down into 1st, then 3rd, then D it works fine and I can drive around ok. But when I stop, I have to repeat the process all over again. I am a little at a loss as to what the issue is here... And I would really appreciate some info!
I could use some help from some more, experienced, Cherokee owners.
I just bought an 88 from a friend, the issue is that it starts out in 3rd gear when I put it in drive... I think the tranny is ok though. If I put it down into 1st, then 3rd, then D it works fine and I can drive around ok. But when I stop, I have to repeat the process all over again. I am a little at a loss as to what the issue is here... And I would really appreciate some info!
You sure it isn't starting in 4th? That's what it does if the solenoids aren't operating.
First thing to check is TCU power and fuses. I think yours has a fuse holder taped to the TCU harness, sorta below the glovebox area. See if you have power there.
First thing to check is TCU power and fuses. I think yours has a fuse holder taped to the TCU harness, sorta below the glovebox area. See if you have power there.
::CF Moderator::
Joined: Aug 2011
Posts: 43,971
Likes: 1,579
From: Prescott, Az
Year: 1990
Model: Cherokee (XJ)
Engine: 4.0

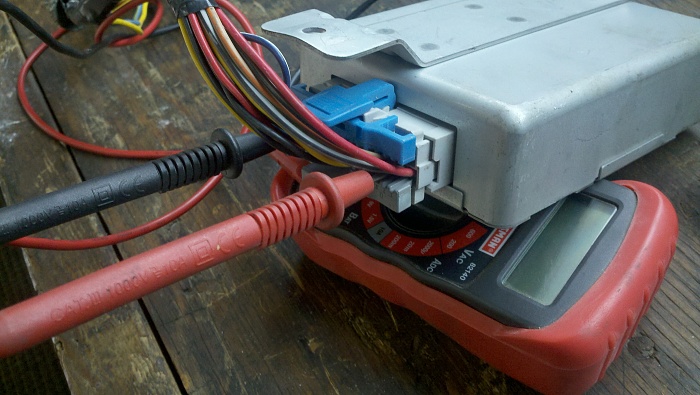

Here's what a TCU looks like on the workbench.
After you get this fixed, click on the "pink link" in my signature and get some preventative electrical work done. Cheap and easy.
Last edited by cruiser54; May 1, 2013 at 06:34 AM.
I had this happen in my wifes 97. It would start off fine would just feel like it was a noticeable lack of power. It wouldnt shutter or anything because theres nothing to let the power to slip. I changed all of my selonoids, It ended up being fine after that I changed them all while i was in the trans did not want to be doing it again for a different selonoid in a few months
::CF Moderator::
Joined: Aug 2011
Posts: 43,971
Likes: 1,579
From: Prescott, Az
Year: 1990
Model: Cherokee (XJ)
Engine: 4.0
Trending Topics
Well. Great news everyone! Found the TCM... And as I went to find the screws to take it out, I saw that it wasn't even bloody plugged in! So there you have it... Easy fix. Guess I got lucky with that one. lol
::CF Moderator::
Joined: Aug 2011
Posts: 43,971
Likes: 1,579
From: Prescott, Az
Year: 1990
Model: Cherokee (XJ)
Engine: 4.0
CF Veteran
Joined: Feb 2012
Posts: 1,249
Likes: 12
From: Hamburg AR
Year: 1995
Model: Cherokee
Engine: 4.0 HO
Send gratuities to www.freebeerforcruiser54.com.
