89 xj electrical question

Old 04-22-2019, 11:12 AM
  #1
Newbie
Thread Starter

Join Date: Apr 2019
Location: Kingsburg ca
Posts: 3
Likes: 0
Received 0 Likes on 0 Posts
Year: 1989
Model: Cherokee (XJ)
Engine: 4.0
Default 89 xj electrical question

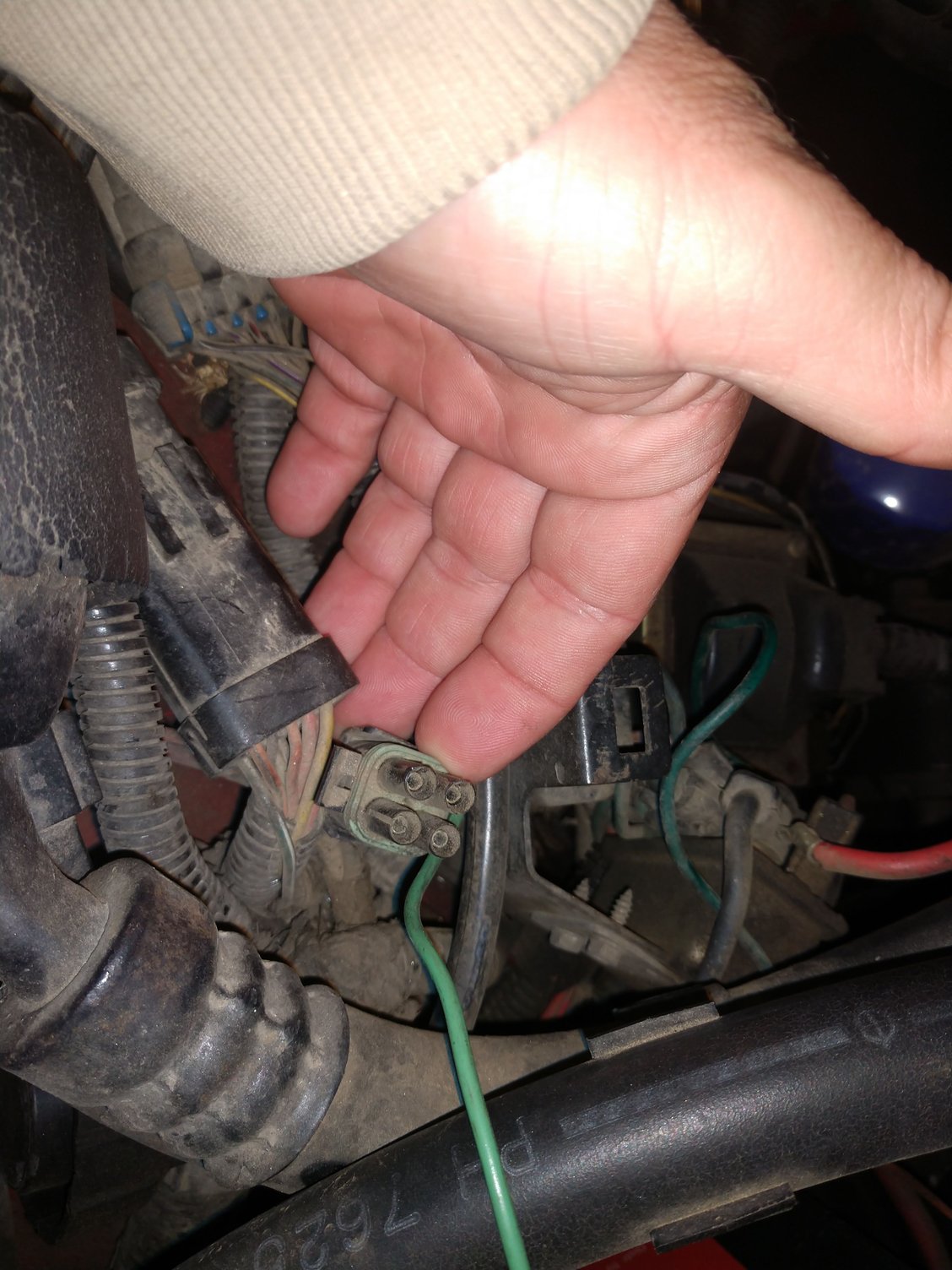

I bought my son a 89 for his first vehicle. I am currently working to get it to pass smog and chasing down all the little Gremlins. I am trying to figure out what this 4 prong plug on the passenger fender is for? I do not see anywhere that it would go. Does anyone know what this goes to?
John Gilles is offline
Old 04-22-2019, 11:49 AM
  #2
gat
Senior Member

Join Date: Mar 2016
Location: Oklahoma
Posts: 583
Likes: 0
Received 1 Like on 1 Post
Year: 1992
Model: Cherokee
Engine: 4.0L L6 PowerTech (stock)
Default

It might have been there for fog lights that you don't have.
gat is offline
Old 04-22-2019, 12:08 PM
  #3
Newbie
Thread Starter

Join Date: Apr 2019
Location: Kingsburg ca
Posts: 3
Likes: 0
Received 0 Likes on 0 Posts
Year: 1989
Model: Cherokee (XJ)
Engine: 4.0
Default

That would be nice. Just want to make sure it is non-essential. There is a lot of strange wiring patches in this rig.
John Gilles is offline
Old 04-22-2019, 04:08 PM
  #4
gat
Senior Member

Join Date: Mar 2016
Location: Oklahoma
Posts: 583
Likes: 0
Received 1 Like on 1 Post
Year: 1992
Model: Cherokee
Engine: 4.0L L6 PowerTech (stock)
Default

Back then the wiring was placed for everything even when the packages for Laredo or Limited weren't included. I'll check my 1988 for you on tonight.
gat is offline
Old 04-22-2019, 04:17 PM
  #5
Newbie
Thread Starter

Join Date: Apr 2019
Location: Kingsburg ca
Posts: 3
Likes: 0
Received 0 Likes on 0 Posts
Year: 1989
Model: Cherokee (XJ)
Engine: 4.0
Default

I would appreciate it don't want to waste time chasing down things that don't matter.
John Gilles is offline
Old 04-22-2019, 09:38 PM
  #6
gat
Senior Member

Join Date: Mar 2016
Location: Oklahoma
Posts: 583
Likes: 0
Received 1 Like on 1 Post
Year: 1992
Model: Cherokee
Engine: 4.0L L6 PowerTech (stock)
Default

I didn't see it on my 1988 Jeep Laredo. Sorry.
gat is offline
Old 04-23-2019, 07:32 AM
  #7
::CF Moderator::

cruiser54's Avatar

Join Date: Aug 2011
Location: Prescott, Az
Posts: 37,986
Received 17 Likes on 15 Posts
Year: 1990
Model: Comanche
Engine: 4.0
Default

Is it manual or auto trans?

Also, you should go to www.cruiser54.com and complete tips 1,3,4 and 5.
cruiser54 is offline
Old 04-23-2019, 08:32 AM
  #8
Seasoned Member

Jeepwalker's Avatar

Join Date: Nov 2010
Location: Good 'ol WI
Posts: 308
Likes: 0
Received 4 Likes on 4 Posts
Year: 1987
Model: Cherokee
Engine: 4.0
Default

What was the first year they installed door impact beams in Cherokees? I'm not sure by 89 they had them, but it might have been the first yr. I know my 87 just has hollow tin-can doors.

Don't get me wrong, they're fun vehicles (I love mine), but one should be aware of the lack of modern safety features for young drivers (who tend to get into a higher percentage of accidents), and use extreme caution. I have a driving-age teen too (but not in the XJ)

Last edited by Jeepwalker; 04-23-2019 at 08:45 AM.
Jeepwalker is offline
Old 04-24-2019, 08:45 AM
  #9
::CF Moderator::

cruiser54's Avatar

Join Date: Aug 2011
Location: Prescott, Az
Posts: 37,986
Received 17 Likes on 15 Posts
Year: 1990
Model: Comanche
Engine: 4.0
Default

IIRC, door impact standards came into play in 1973.....
cruiser54 is offline
Old 04-24-2019, 07:32 PM
  #10
Seasoned Member

Jeepwalker's Avatar

Join Date: Nov 2010
Location: Good 'ol WI
Posts: 308
Likes: 0
Received 4 Likes on 4 Posts
Year: 1987
Model: Cherokee
Engine: 4.0
Default

Originally Posted by cruiser54 View Post
IIRC, door impact standards came into play in 1973.....
...for cars.
I think the first year for the Cherokee was '93-'94. Somewhere around that time. As long as ya don't get T-boned.
Of course some guys just take the doors off completely!

Last edited by Jeepwalker; 04-24-2019 at 07:35 PM.
Jeepwalker is offline
Old 05-05-2019, 02:13 AM
  #11
Junior Member

Stickers_XJ's Avatar

Join Date: Aug 2017
Location: Long Island
Posts: 56
Likes: 0
Received 0 Likes on 0 Posts
Year: 1990
Model: Cherokee (XJ)
Engine: 4.0L I6
Default

I have a '90 Laredo with a disconnected plug like that in the same area, but instead of being 2x2 I believe mine is 1x3. A few XJ guys I know suggested that it had to be for extra lighting that was no longer on the Jeep
Stickers_XJ is offline
Old 05-05-2019, 06:56 AM
  #12
Senior Member

67 GMC's Avatar

Join Date: May 2012
Location: Fort Erie, CANADA
Posts: 932
Likes: 0
Received 0 Likes on 0 Posts
Year: 1987
Model: Cherokee
Engine: 4.0
Default

I would just put a voltmeter on each pin with the negative probe on a good ground and see if there's any voltage going through it. Check with Jeep off first then with Jeep running and all lights turned on. If no 12V when running, you can be pretty safe it was just an add-on harness.
To be safe, I would also check the fuse panel to make sure no fuses are blown too.
67 GMC is offline
