89 knuckle on 95 d30 axle
#1
Newbie
Thread Starter
Join Date: Jul 2017
Location: Iceland
Posts: 7
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1989
Model: Cherokee(XJ)
Engine: i6
89 knuckle on 95 d30 axle
i got a 95 i4 manual with a busted engine. i would like to use the axles with 4.10 gears on my 89 i6 with on 31" tires.
as i just replaced all brakeparts on the 89 and the stuff on the 95 is pretty rusted im wondering if i could save some money by swapping over the whole knuckle? except getting some new balljoints...is there anything to worry about?
as i just replaced all brakeparts on the 89 and the stuff on the 95 is pretty rusted im wondering if i could save some money by swapping over the whole knuckle? except getting some new balljoints...is there anything to worry about?
Last edited by litze; 12-25-2017 at 11:09 AM.
#2
CF Veteran
nothing to worry about. the knuckles will swap over so you have the 89 brake caliper mounting brackets for your 89 calipers.
#4
Newbie
Thread Starter
Join Date: Jul 2017
Location: Iceland
Posts: 7
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1989
Model: Cherokee(XJ)
Engine: i6
im wondering what balljoints to use: the upper ones seem to be the same for the 89 and the 95. but i get different numbers for the lower ones.
( checked on rockauto)
89
moog
k3134t upper
k3137t lower
for 95
moog
k3134t upper
k3161 lower
i guees i need to use the balljoints for the 89 knuckles?
( checked on rockauto)
89
moog
k3134t upper
k3137t lower
for 95
moog
k3134t upper
k3161 lower
i guees i need to use the balljoints for the 89 knuckles?
#5
CF Veteran
Join Date: Mar 2010
Location: Broward County Fl.
Posts: 47,923
Likes: 0
Received 22 Likes
on
22 Posts
Year: 1989 xj sport 2dr
Model: Cherokee
Engine: 12 hole bosch Injectors
Only difference should be theres a adjusting sleeve in bottom of the 89 as far as I know. Id see if all components from 89 knuckle will swap on to 95 knuckle.Im debating my self on a newer knuckle on to my 89 to get rid of that preload sleve.
Last edited by freegdr; 12-26-2017 at 06:10 AM.
#6
CF Veteran
i went from my 90 axle to an 89 to get rid of my vacuum cad and just swapped out the knuckles and brake calipers. i think i just used ball joints for a 90. didn't need adjuster sleeve, although it did come with the ball joints.
#7
Newbie
Thread Starter
Join Date: Jul 2017
Location: Iceland
Posts: 7
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1989
Model: Cherokee(XJ)
Engine: i6
ok. i should get the lower ball joint for the 95 axle and look for one that comes with the sleeve?

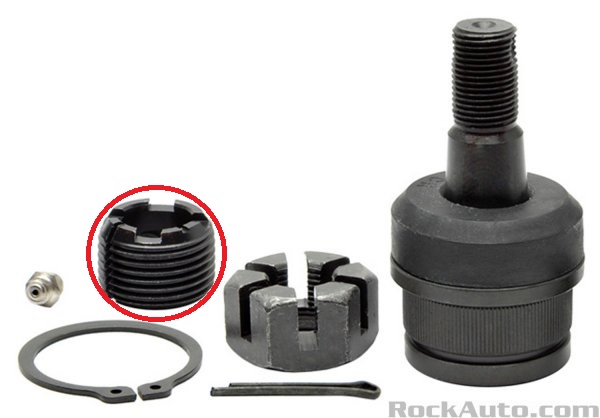

like this dana spicer upper and lower kit for a 95 d30 706944X :
http://www.rockauto.com/en/moreinfo....0268&jsn=10633
perhaps its not even necessary to replace those sleeves
just replace the sleeves if needed ...
like this dana spicer upper and lower kit for a 95 d30 706944X :
http://www.rockauto.com/en/moreinfo....0268&jsn=10633
perhaps its not even necessary to replace those sleeves
just replace the sleeves if needed ...
