Stock XJ Cherokee Tech. All XJ Non-modified/stock questions go here XJ (84-01)
All OEM related XJ specific tech. Examples, no start, general maintenance or anything that's stock.

33's with no lift!

Thread Tools

Search this Thread

Old 09-30-2009, 04:37 PM
  #1
Member
Thread Starter

TapouT's Avatar

Join Date: Nov 2008
Location: NC
Posts: 130
Likes: 0
Received 0 Likes on 0 Posts
Year: 1989
Model: Cherokee
Engine: 4.0
Default 33's with no lift!

I'm going to be picking up a Dremel this weekend with a bunch of cutting wheels. I'm going to be trimming my front and rear fenders so I can clear 33's when I acquire two more. I already have 2 33/12.50/15 M/T Baja Claw's. I'm running 31/10.50/15's on the Jeep now and I have quite a bit of clearance with them so I figure with the fenders trimmed I'll have more than enough room for 33's. This is my DD so it's not going to be wheeled. Strictly mall crawler I got the idea from this thread...

http://www.naxja.org/forum/showthread.php?t=999069

Here's a picture of my Jeep...

Old 09-30-2009, 06:08 PM
  #2
Member

black96xj's Avatar

Join Date: Dec 2008
Posts: 115
Likes: 0
Received 0 Likes on 0 Posts
Year: 96
Model: Cherokee
Engine: 4.0
Default

thats exactly what i did i started with 31s and no lift then went to 33s with no lift and now i'm at 33s with 1.75 lift it worked great but if your gunna run those 12.50s i would run after market wheels on stock wheels they are about 1/2" from the springs and you'll have to lose the rear swaybar
Old 09-30-2009, 06:59 PM
  #3
Senior Member

jeepride's Avatar

Join Date: Jul 2008
Location: West Virginia
Posts: 709
Likes: 0
Received 0 Likes on 0 Posts
Year: 98
Model: Cherokee
Engine: 4.0L
Default

Been thinking along these same lines with 31's did you remove the plastic inner fender liners?
Old 09-30-2009, 07:05 PM
  #4
Member

MaddXJ85's Avatar

Join Date: Sep 2009
Location: Northern Cali
Posts: 138
Likes: 0
Received 0 Likes on 0 Posts
Year: 1985
Model: Cherokee
Engine: 2.8 V6 (terrible)
Default

You shouldnt have any problems. get rid of the rear sway bar anyway that thing is just useless lol. The only problem you're gonna have is using that Dremel. I tried to cut mine with one and went through a new about every four inches. Just use a jig saw and be careful
Old 09-30-2009, 07:28 PM
  #5
Senior Member

jeepride's Avatar

Join Date: Jul 2008
Location: West Virginia
Posts: 709
Likes: 0
Received 0 Likes on 0 Posts
Year: 98
Model: Cherokee
Engine: 4.0L
Default

Would a grinder be adviseable or no ? My rear sway bar is removed how high up on fenders can you cut with no major problems?
Old 09-30-2009, 07:39 PM
  #6
Member

MaddXJ85's Avatar

Join Date: Sep 2009
Location: Northern Cali
Posts: 138
Likes: 0
Received 0 Likes on 0 Posts
Year: 1985
Model: Cherokee
Engine: 2.8 V6 (terrible)
Default

you're gonna have a hard time using a grinder and its not exactly safe. you can cut the front as far as you want however there is another flange inside the front wheel well that you will have to bend over but dont worry it looks fine. as far as the back goes you'll end up cutting into where its doubled but try not to cut too far. then just use some paintable caulking to seal the gap. you'll have to do this to insure no water gets in there. it sounds like alot but its not that bad. if you have any other questions let me know and I can send you pics of mine.
Old 09-30-2009, 07:49 PM
  #7
Seasoned Member

aircrewallan's Avatar

Join Date: Sep 2008
Posts: 313
Likes: 0
Received 0 Likes on 0 Posts
Model: Wagoneer
Default

where do you put the caulk? cuz im about to cut my fenders and i heard you gotta fill the wheel wells but not sure where...thanks
Old 09-30-2009, 08:04 PM
  #8
Member

MaddXJ85's Avatar

Join Date: Sep 2009
Location: Northern Cali
Posts: 138
Likes: 0
Received 0 Likes on 0 Posts
Year: 1985
Model: Cherokee
Engine: 2.8 V6 (terrible)
Default

give me a few mins and ill upload some pics that might help
Old 09-30-2009, 08:23 PM
  #9
Member

cj11's Avatar

Join Date: Aug 2009
Posts: 154
Likes: 0
Received 1 Like on 1 Post
Year: 1997
Model: Cherokee
Engine: 4.0L
Default

I have 4" lift and 32's wanted to go 33's. Sure i can fit it but the tires would be rubbing all over making more headaches to fix. what type of rig do you want. I know you said it is a DD but still if you want to do any offroading your going to kill your tires and fenders. Now what some one is going to say JUST ADD BUMPSTOPS but you can only bumpstop so much before there is not enough up travel. I would stick with the 31's get a 8" wide rims and trim it up. Still will be plenty good for a little of everything. I have been there before wish I got some advice from some one before I wasted money on tires that where just to damn big.
Old 09-30-2009, 08:48 PM
  #10
Member

MaddXJ85's Avatar

Join Date: Sep 2009
Location: Northern Cali
Posts: 138
Likes: 0
Received 0 Likes on 0 Posts
Year: 1985
Model: Cherokee
Engine: 2.8 V6 (terrible)
Default

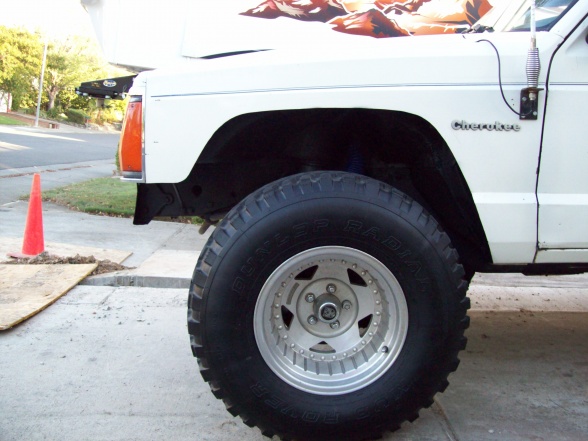

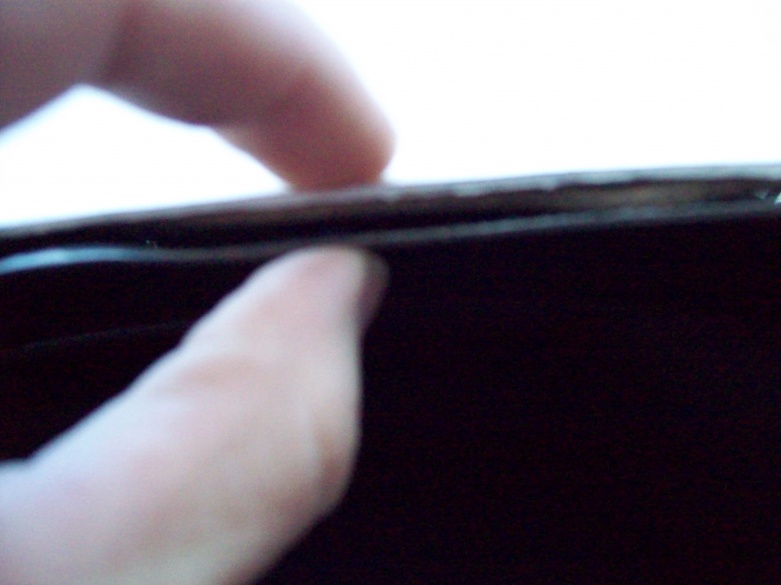

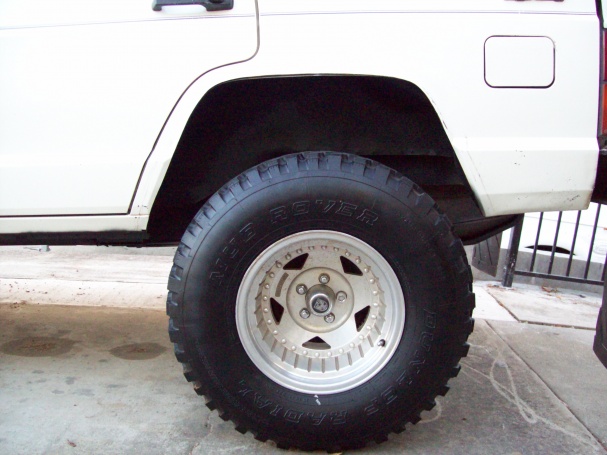

well i hope this helps... the gap is only about 1/4" at the widest spot keep in mind this is only a three inch lift in rear and inch and a half in front.
Attached Thumbnails 33's with no lift!-101_0255.jpg
Attached Images
Old 09-30-2009, 09:09 PM
  #11
Senior Member

jeepride's Avatar

Join Date: Jul 2008
Location: West Virginia
Posts: 709
Likes: 0
Received 0 Likes on 0 Posts
Year: 98
Model: Cherokee
Engine: 4.0L
Default

Did you remove the plastic fender liners? thanks
Old 09-30-2009, 09:11 PM
  #12
Member

MaddXJ85's Avatar

Join Date: Sep 2009
Location: Northern Cali
Posts: 138
Likes: 0
Received 0 Likes on 0 Posts
Year: 1985
Model: Cherokee
Engine: 2.8 V6 (terrible)
Default

OH YEAH! you have to.... they dont do anything anyway
Old 09-30-2009, 09:19 PM
  #13
CF Veteran

djlarroc's Avatar

Join Date: Jun 2009
Location: Denver, CO
Posts: 3,071
Likes: 0
Received 0 Likes on 0 Posts
Year: 1997
Model: Cherokee
Engine: 4.0
Default

I think 33s on little to no lift is good, but not on 33x12.50s. Best way to do it is on stock rims, or better 15x7 w/4" back space and 33x10.50s.
Old 09-30-2009, 09:24 PM
  #14
Member

MaddXJ85's Avatar

Join Date: Sep 2009
Location: Northern Cali
Posts: 138
Likes: 0
Received 0 Likes on 0 Posts
Year: 1985
Model: Cherokee
Engine: 2.8 V6 (terrible)
Default

yeah you might want to cosider going with a skinnier tire.. without any lift your not gonna be able to stuff those 12.50s in there.. it just wont work...
Old 09-30-2009, 09:52 PM
  #15
Member

cj11's Avatar

Join Date: Aug 2009
Posts: 154
Likes: 0
Received 1 Like on 1 Post
Year: 1997
Model: Cherokee
Engine: 4.0L
Default

Even at 4" a 33x12.50 wont stuff I have 8" wide rim with 4" back space and the rear will catch the out side of the well

When i cut the rear I used the cut and fold make relief cuts inbetween the pinch welds then i used silicone on the inside of the well where i made the cuts then hammer it over rubber mallet works the best not so hard on the paint it will still crack from the stress.

If you cut the welds off it will open up the body and weaken the unibody. and I am sure that would not be an easyfix.

Last edited by cj11; 10-01-2009 at 09:40 AM.
