1990 RENIX misfire backfire on acceleration
#1
Junior Member
Thread Starter
Join Date: Apr 2014
Posts: 40
Likes: 0
Received 0 Likes
on
0 Posts
Model: Cherokee
1990 RENIX misfire backfire on acceleration
Hello, I was on here last summer try in to figure out what's wrong with my jeep. Winter is over here I go again.
1990 jeep cherokee (Pioneer)
W/1987 4.0L engine
Automatic aw4
Lifted 3 inches
33 inch tires
No muffler duals from the cat back 2.25
Replaced stock air filter box with cone filter(spectre)
4 off road lights on roof 2 in grille
Cb radio
Replaced:
Plugs
Wires
Coil
Cap
Rotor
Tps
Fuel filter
Fuel regulator
Refreshed all grounds
Upgraded ground cables
O2 sensor
Exhaust manifold is cracked at the #6 cylinder about an inch above the o2 sensor on the weld
Electric fan is basically bypassed with a wire at the sensor, so its on as soon as I start it and it stays on
If I turn my heat on or any of my aftermarket lights my voltage drops, probably need a bigger alternator
Now what it's doing:
Start ignition:
Takes about 2-3 seconds to fire
Engine starting:
Starts off just a tad rough for like a second, before regulator was put on it would run rough for like 5-10 seconds, clears up very quickly now
Idling:
Has a slight fluctuation in idle better now that I replaced the o2, but still there
Put it in drive:
Now if I try to take of normally it'll start missing and backfiring out of the exhaust, like some firecrackers or something,
Now if I just slightly depress the gas pedal I can get it to move quite nicely, until I get to about the top of the gear and it will do it again, I have to floor it to get through the crappyness until I'm up to my desired speed, it will cruise just fine until I let my foot of it will act all crazy again doing the same exact thing, sometimes it will go down a gear and then back up. It seems to be at the top of each gear it does this.
I can also get it to do the backfire misfire thing in park but it seems to only be a small portion of the throttle it does this.
I did get a new CPS I tried to slide the sensor part up the bar farther to the passenger side of the vehicle, I'm going to be replacing it with a regular one soon, could this be causing all my havoc? Possibly because of my cracked exhaust manifold?
Anyone that can steer me in the right direction that'd be great, I love this thing I need to get it running good
And could air in the cooling system of my RENIX cause this?
1990 jeep cherokee (Pioneer)
W/1987 4.0L engine
Automatic aw4
Lifted 3 inches
33 inch tires
No muffler duals from the cat back 2.25
Replaced stock air filter box with cone filter(spectre)
4 off road lights on roof 2 in grille
Cb radio
Replaced:
Plugs
Wires
Coil
Cap
Rotor
Tps
Fuel filter
Fuel regulator
Refreshed all grounds
Upgraded ground cables
O2 sensor
Exhaust manifold is cracked at the #6 cylinder about an inch above the o2 sensor on the weld
Electric fan is basically bypassed with a wire at the sensor, so its on as soon as I start it and it stays on
If I turn my heat on or any of my aftermarket lights my voltage drops, probably need a bigger alternator
Now what it's doing:
Start ignition:
Takes about 2-3 seconds to fire
Engine starting:
Starts off just a tad rough for like a second, before regulator was put on it would run rough for like 5-10 seconds, clears up very quickly now
Idling:
Has a slight fluctuation in idle better now that I replaced the o2, but still there
Put it in drive:
Now if I try to take of normally it'll start missing and backfiring out of the exhaust, like some firecrackers or something,
Now if I just slightly depress the gas pedal I can get it to move quite nicely, until I get to about the top of the gear and it will do it again, I have to floor it to get through the crappyness until I'm up to my desired speed, it will cruise just fine until I let my foot of it will act all crazy again doing the same exact thing, sometimes it will go down a gear and then back up. It seems to be at the top of each gear it does this.
I can also get it to do the backfire misfire thing in park but it seems to only be a small portion of the throttle it does this.
I did get a new CPS I tried to slide the sensor part up the bar farther to the passenger side of the vehicle, I'm going to be replacing it with a regular one soon, could this be causing all my havoc? Possibly because of my cracked exhaust manifold?
Anyone that can steer me in the right direction that'd be great, I love this thing I need to get it running good
And could air in the cooling system of my RENIX cause this?
#2
Senior Member
Join Date: Sep 2014
Location: Phoenix, A-to-Z
Posts: 896
Likes: 0
Received 2 Likes
on
2 Posts
Year: 1988
Model: Cherokee
Engine: 4.0
If the crack in the manifold is big enough it can result in more oxygen being detected at the o2 sensors, which would enrich the fuel ratio and could cause the issue you are describing.
#3
Junior Member
Thread Starter
Join Date: Apr 2014
Posts: 40
Likes: 0
Received 0 Likes
on
0 Posts
Model: Cherokee
That's what I thought, it seems to be running rich TAILPIPES ARE SOOTY REALLY BAD already have the new manifold and gasket, putting it on this weekend hopefully.
#4
Junior Member
Thread Starter
Join Date: Apr 2014
Posts: 40
Likes: 0
Received 0 Likes
on
0 Posts
Model: Cherokee
Its like 30 degrees in Michigan today so I was only out there for a minute, I tested the flat 3 wire connector at the tps, I put my DVM red lead on the middle wire B, and and put the black lead on the negative battery post, I got 1.6, I tested it in ohms lowest setting, DID I DO THAT RIGHT, if I did that's to high right?
#5
Senior Member
Join Date: Sep 2014
Location: Phoenix, A-to-Z
Posts: 896
Likes: 0
Received 2 Likes
on
2 Posts
Year: 1988
Model: Cherokee
Engine: 4.0
You may be well-benefited from reading through Cruiser54's awesome RENIX tips. You will find a good methodology towards getting the TPS adjusted, and a whole lot more.
https://www.cherokeeforum.com/f51/cr...x-tips-153657/
https://www.cherokeeforum.com/f51/cr...x-tips-153657/
#6
::CF Moderator::
Join Date: Aug 2011
Location: Prescott, Az
Posts: 43,875
Received 1,526 Likes
on
1,238 Posts
Year: 1990
Model: Cherokee (XJ)
Engine: 4.0
Did you do my Tips 3,4,and 5?
Do those and then adjust your TPS per Tip 8.
Intake manifold bolts snug?

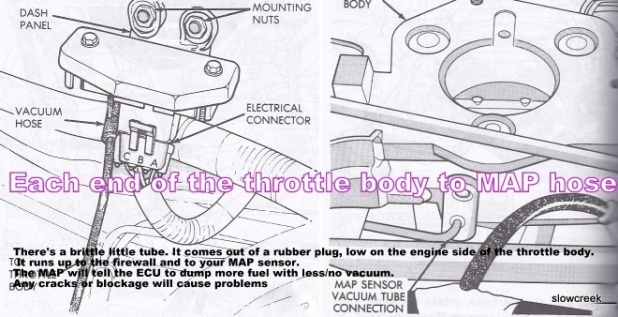

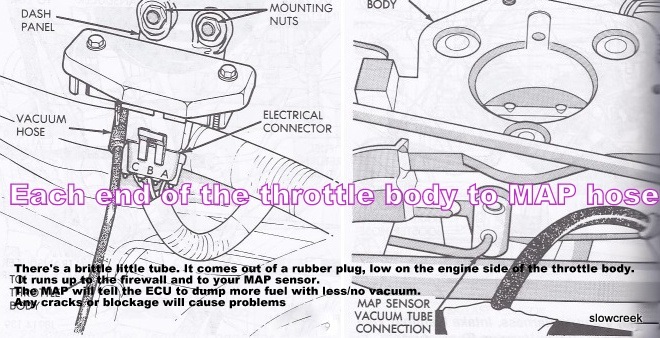

Look at this line also:
Do those and then adjust your TPS per Tip 8.
Intake manifold bolts snug?
Look at this line also:
#7
Junior Member
Thread Starter
Join Date: Apr 2014
Posts: 40
Likes: 0
Received 0 Likes
on
0 Posts
Model: Cherokee
Yeah I've done 3,4,5. Today I did test the TPS I'm getting 4.78 for my reference voltage so I set the input to .81 I couldn't adjust it any further there was no more room left, it's tilted at an angle to me it doesn't seem right but I guess it could be.
Any input on this people?
Any input on this people?
Trending Topics
#9
::CF Moderator::
Join Date: Aug 2011
Location: Prescott, Az
Posts: 43,875
Received 1,526 Likes
on
1,238 Posts
Year: 1990
Model: Cherokee (XJ)
Engine: 4.0
Well, if 5 was okay, what was the ohms reading?
#10
Junior Member
Thread Starter
Join Date: Apr 2014
Posts: 40
Likes: 0
Received 0 Likes
on
0 Posts
Model: Cherokee
I don't remember the exact reading, I know it was really close to 0 ohms and I wiggled every wire harness I could especially by the valve cover, all the wires near the firewall, TPS wires pretty much everything I could reach, didn't fluctuate at all.
I'm starting to move towards the fuel pump I'm pulling it tomorrow to check the rubber line in there
I'm starting to move towards the fuel pump I'm pulling it tomorrow to check the rubber line in there
#11
::CF Moderator::
Join Date: Aug 2011
Location: Prescott, Az
Posts: 43,875
Received 1,526 Likes
on
1,238 Posts
Year: 1990
Model: Cherokee (XJ)
Engine: 4.0
I don't remember the exact reading, I know it was really close to 0 ohms and I wiggled every wire harness I could especially by the valve cover, all the wires near the firewall, TPS wires pretty much everything I could reach, didn't fluctuate at all.
I'm starting to move towards the fuel pump I'm pulling it tomorrow to check the rubber line in there
I'm starting to move towards the fuel pump I'm pulling it tomorrow to check the rubber line in there
#12
Junior Member
Thread Starter
Join Date: Apr 2014
Posts: 40
Likes: 0
Received 0 Likes
on
0 Posts
Model: Cherokee
So I pulled the fuel pump out today, the rubber line is in ok shape kinda mushy still together tho, I'll replace the rubber line anyways tomorrow and there was no sock screen on the pump.
Is there a way to test the fuel pump to make sure it's good?
Not really sure what I'm gonna check next
Is there a way to test the fuel pump to make sure it's good?
Not really sure what I'm gonna check next
#13
::CF Moderator::
Join Date: Aug 2011
Location: Prescott, Az
Posts: 43,875
Received 1,526 Likes
on
1,238 Posts
Year: 1990
Model: Cherokee (XJ)
Engine: 4.0
So I pulled the fuel pump out today, the rubber line is in ok shape kinda mushy still together tho, I'll replace the rubber line anyways tomorrow and there was no sock screen on the pump.
Is there a way to test the fuel pump to make sure it's good?
Not really sure what I'm gonna check next
Is there a way to test the fuel pump to make sure it's good?
Not really sure what I'm gonna check next
#14
CF Veteran
Join Date: Aug 2011
Location: Nor-Cal Coast
Posts: 10,489
Likes: 0
Received 17 Likes
on
17 Posts
Year: 90,84
Model: Cherokee
Engine: 4.0,2.5
Some pump install FYI>>
Below is the inside of the tank. The black ring you see is the end of the cone that belongs on the end of the fuel return line on the pump assembly. That cone on the metal line holds the bottom of the whole deal in place. That there should be fished out, and installed on the metal fuel return line on the assembly. Then you seat the cone into the receptacle in the tank when installing it. The fuel return and pickup are located in a tray inside the tank, so return fuel is available to be picked up at the pump inlet, even when the tank is low or at an angle.
Below is the inside of the tank. The black ring you see is the end of the cone that belongs on the end of the fuel return line on the pump assembly. That cone on the metal line holds the bottom of the whole deal in place. That there should be fished out, and installed on the metal fuel return line on the assembly. Then you seat the cone into the receptacle in the tank when installing it. The fuel return and pickup are located in a tray inside the tank, so return fuel is available to be picked up at the pump inlet, even when the tank is low or at an angle.
