EASY! pushbutton start on 2000 XJ
12-24-2011, 11:44 PM
#17
Junior Member
Join Date: Mar 2010
Location: Oregon
Posts: 41
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1992
Model: Cherokee
Engine: 4.0
Hey,
I like this. Looks quick and easy.
My ignition is totally FUBAR right now. How would I do this where I don't need a key at all? Thanks.
I like this. Looks quick and easy.
My ignition is totally FUBAR right now. How would I do this where I don't need a key at all? Thanks.
12-25-2011, 10:27 AM
#18
CF Veteran
Thread Starter
Join Date: Oct 2011
Location: Warrenton MO
Posts: 1,467
Likes: 0
Received 1 Like
on
1 Post
Year: 2000
Model: Cherokee
Engine: 4.7L I6
connect the wires that need power to the swtch also. just turn your tumbler torward and keep turning, your key will snap off. if you ever wanna use it as a kill switch then you can use a flathead to turn tumbler off and no one will be the wiser lol
the the non redneck way is to connect the other wires that get power from the red wire in that plug. gotta just figure out what goes to what with a multimeter then splice into the power wire
the the non redneck way is to connect the other wires that get power from the red wire in that plug. gotta just figure out what goes to what with a multimeter then splice into the power wire
12-29-2011, 09:33 PM
#19
Senior Member
Join Date: Dec 2010
Location: Michigan (Home state) Stationed in Montana
Posts: 882
Likes: 0
Received 2 Likes
on
2 Posts
Year: 1993
Model: Grand Cherokee
Engine: 5.2L MPI V8 (318)
I'm confused. Say I do this your way. Can I get in my jeep, flip that toggle switch, then start my jeep? I want it to need my keys to be in the accessory switch position to allow it to start for security.
12-29-2011, 09:50 PM
#20
CF Veteran
Thread Starter
Join Date: Oct 2011
Location: Warrenton MO
Posts: 1,467
Likes: 0
Received 1 Like
on
1 Post
Year: 2000
Model: Cherokee
Engine: 4.7L I6
yup key has to be on... my key broke so its always on lol
i can use a screwdriver to turn it off as a security bonus.
i can use a screwdriver to turn it off as a security bonus.
12-29-2011, 10:09 PM
#21
CF Veteran
Join Date: Jan 2009
Location: Utardiland
Posts: 1,703
Likes: 0
Received 0 Likes
on
0 Posts
Year: whats left of a 91
Model: Cherokee
Engine: one that makes noise
i did mine with toggle switches, and eliminated the key and just put a switch on the fuel pump wire to cut power to it.
http://youtu.be/xEb5TsFn_6w
http://youtu.be/xEb5TsFn_6w
07-22-2012, 11:52 PM
#22
Newbie
Join Date: Jun 2012
Posts: 11
Likes: 0
Received 0 Likes
on
0 Posts
Model: Cherokee
Just bought everything I needed to do this in my 2000. Not a complete rookie to wiring but most of it has been car audio and don't want to goof this up on the first try since I just bought my xj! I know this post is old but if you still had a pic of the mod as a whole and where all the wires were connected to laying around I'd appreciate it. Think I got it but I'm just trying to make sure it's dead on. Thanks Dixie great write up.
11-27-2014, 10:36 PM
#23
Seasoned Member
Join Date: May 2013
Location: North Atlantic - Delaware
Posts: 410
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1999
Model: Cherokee
Engine: Inline 6 4.0
Just bought everything I needed to do this in my 2000. Not a complete rookie to wiring but most of it has been car audio and don't want to goof this up on the first try since I just bought my xj! I know this post is old but if you still had a pic of the mod as a whole and where all the wires were connected to laying around I'd appreciate it. Think I got it but I'm just trying to make sure it's dead on. Thanks Dixie great write up.
I just did this yesterday in my xj. Saturday I'm finishing the starter instal and firing it up. I'll post back what I found. The instructions I found elsewhere were for older xj and this one seemed almost too easy. Thanks ol'dixie
11-28-2014, 10:14 AM
#24
CF Veteran
how does this work with the sentry key? do you not need to tape or velcro the grey part of the key to the steering column? or hide it somewhere inside the plastics?
11-28-2014, 10:26 AM
#25
Seasoned Member
Join Date: May 2013
Location: North Atlantic - Delaware
Posts: 410
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1999
Model: Cherokee
Engine: Inline 6 4.0
My understanding of the wiring process is that you are basically hot wiring the main power to the starter. I assume there is a device that detects the chip keys and thus says "this isn't a legit key" and shuts off the power. I would just say by pass that altogether. Not sure if that's how it works though.
09-01-2015, 08:24 AM
#26
Newbie
Join Date: Aug 2015
Posts: 1
Likes: 0
Received 0 Likes
on
0 Posts
Model: Cherokee
I just finished wiring everything up. I put the push button in my cigarette lighter. Only problem I have is my wipers don't work now and my AC stays on after I shut it down with the toghle switch. Any ideas or tips?
09-01-2015, 01:20 PM
#27
Seasoned Member
Join Date: May 2013
Location: North Atlantic - Delaware
Posts: 410
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1999
Model: Cherokee
Engine: Inline 6 4.0
EASY! pushbutton start on 2000 XJ
Originally Posted by wiggins1515
I just finished wiring everything up. I put the push button in my cigarette lighter. Only problem I have is my wipers don't work now and my AC stays on after I shut it down with the toghle switch. Any ideas or tips?
02-08-2024, 06:45 PM
#28
Newbie
Join Date: Feb 2024
Posts: 2
Likes: 0
Received 0 Likes
on
0 Posts
Wiring
My key broke off a long time ago and since my engine is out at the moment i figured id do this now.
Things you'll need:
16g wire
wire connectors.
switch connectors
crimps
one on off toggle switch
one pushbutton on/off monentary switch
2 coors lights
Get started!
open beer one.
take lower dash panels off. one plastic one metal.
3 screws in bottom of plastic and two at top of metal one
take lower steering plastic. 3 screws underneath.
theres a large connection to the left of the column. its white.
disconnect it and locate the YELLOW wire. this is the starter wire.
Attachment 73214
Attachment 73213
connect a wire from one side of the momentary pushbutton switch to the yellow wire.use proper connectors.
take the other side and wire it to the on/off toggle.
open beer two
Locate the RED wire. this is your 12v constant that brings power to your accessories. connect the end that comes from the harness to the center pole on the on/off toggle and the end that goes to the connector to the same pole the pushbutton connects to.
Attachment 73215
Drill your mounting holes. i picked the front dash section next to my guage cluster.
Attachment 73216
connect all wires.
Leave some extra in the Red wire that connects to center post on on/off toggle if you want to run a killswitch under the dash.
that should be it. you can leave your key in the run position.
__________________
Objects in mirror are stuck...
If you dont like my tractor stack, keep it to yourself...
2000 XJ 4.7L 6-7in lift on 33's
Things you'll need:
16g wire
wire connectors.
switch connectors
crimps
one on off toggle switch
one pushbutton on/off monentary switch
2 coors lights
Get started!
open beer one.
take lower dash panels off. one plastic one metal.
3 screws in bottom of plastic and two at top of metal one
take lower steering plastic. 3 screws underneath.
theres a large connection to the left of the column. its white.
disconnect it and locate the YELLOW wire. this is the starter wire.
Attachment 73214
Attachment 73213
connect a wire from one side of the momentary pushbutton switch to the yellow wire.use proper connectors.
take the other side and wire it to the on/off toggle.
open beer two
Locate the RED wire. this is your 12v constant that brings power to your accessories. connect the end that comes from the harness to the center pole on the on/off toggle and the end that goes to the connector to the same pole the pushbutton connects to.
Attachment 73215
Drill your mounting holes. i picked the front dash section next to my guage cluster.
Attachment 73216
connect all wires.
Leave some extra in the Red wire that connects to center post on on/off toggle if you want to run a killswitch under the dash.
that should be it. you can leave your key in the run position.
__________________
Objects in mirror are stuck...
If you dont like my tractor stack, keep it to yourself...
2000 XJ 4.7L 6-7in lift on 33's
02-08-2024, 06:56 PM
#29
Newbie
Join Date: Feb 2024
Posts: 2
Likes: 0
Received 0 Likes
on
0 Posts
Pictures
My key broke off a long time ago and since my engine is out at the moment i figured id do this now.
Things you'll need:
16g wire
wire connectors.
switch connectors
crimps
one on off toggle switch
one pushbutton on/off monentary switch
2 coors lights
Get started!
open beer one.
take lower dash panels off. one plastic one metal.
3 screws in bottom of plastic and two at top of metal one
take lower steering plastic. 3 screws underneath.
theres a large connection to the left of the column. its white.
disconnect it and locate the YELLOW wire. this is the starter wire.
Attachment 73214
Attachment 73213
connect a wire from one side of the momentary pushbutton switch to the yellow wire.use proper connectors.
take the other side and wire it to the on/off toggle.
open beer two

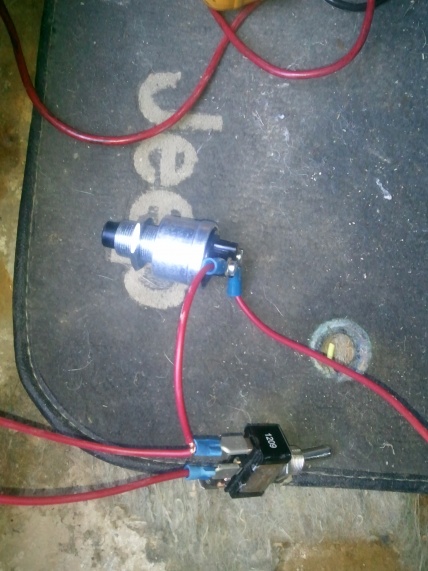

Locate the RED wire. this is your 12v constant that brings power to your accessories. connect the end that comes from the harness to the center pole on the on/off toggle and the end that goes to the connector to the same pole the pushbutton connects to.
Attachment 73215

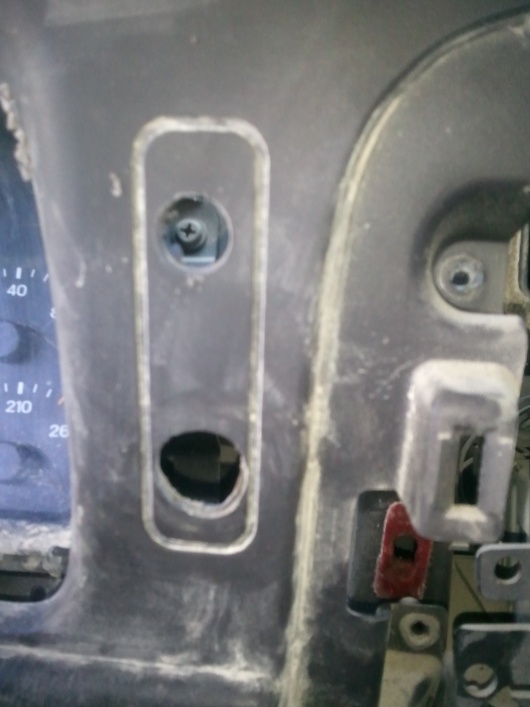

Drill your mounting holes. i picked the front dash section next to my guage cluster.
Attachment 73216
connect all wires.
Leave some extra in the Red wire that connects to center post on on/off toggle if you want to run a killswitch under the dash.
that should be it. you can leave your key in the run position.
__________________
Objects in mirror are stuck...
If you dont like my tractor stack, keep it to yourself...
2000 XJ 4.7L 6-7in lift on 33's
Things you'll need:
16g wire
wire connectors.
switch connectors
crimps
one on off toggle switch
one pushbutton on/off monentary switch
2 coors lights
Get started!
open beer one.
take lower dash panels off. one plastic one metal.
3 screws in bottom of plastic and two at top of metal one
take lower steering plastic. 3 screws underneath.
theres a large connection to the left of the column. its white.
disconnect it and locate the YELLOW wire. this is the starter wire.
Attachment 73214
Attachment 73213
connect a wire from one side of the momentary pushbutton switch to the yellow wire.use proper connectors.
take the other side and wire it to the on/off toggle.
open beer two
Locate the RED wire. this is your 12v constant that brings power to your accessories. connect the end that comes from the harness to the center pole on the on/off toggle and the end that goes to the connector to the same pole the pushbutton connects to.
Attachment 73215
Drill your mounting holes. i picked the front dash section next to my guage cluster.
Attachment 73216
connect all wires.
Leave some extra in the Red wire that connects to center post on on/off toggle if you want to run a killswitch under the dash.
that should be it. you can leave your key in the run position.
__________________
Objects in mirror are stuck...
If you dont like my tractor stack, keep it to yourself...
2000 XJ 4.7L 6-7in lift on 33's
