The tale of SuperMJ

Old 12-14-2018, 11:28 AM
  #601
HUH? WHAT?
Thread Starter

XJwonders's Avatar

Join Date: Jan 2013
Location: west chester, pa
Posts: 18,969
Year: 1999
Model: Cherokee(XJ)
Engine: 4.0
Default

Not sure on how to finish the chop at the end of the frame. Maybe a 1/4 plate from end to end or something.
XJwonders is online now
Old 12-14-2018, 11:34 AM
  #602
CF Veteran

Bugout4x4's Avatar

Join Date: May 2015
Location: Arizona
Posts: 4,457
Year: 97
Model: Cherokee
Engine: 4.0
Default

That's pretty slick Neal...
Bugout4x4 is offline
Old 12-14-2018, 11:57 AM
  #603
Member

Join Date: Nov 2016
Location: KTUL
Posts: 110
Year: 1996
Model: Cherokee
Engine: 4.0
Default

I did basically the same thing. Capped it with a 2x4 .250" rear bumper. I think you need to tie both sides together however you end up doing it.

Mine,

Last edited by mikebravo; 12-14-2018 at 12:00 PM.
mikebravo is offline
Old 12-14-2018, 12:14 PM
  #604
HUH? WHAT?
Thread Starter

XJwonders's Avatar

Join Date: Jan 2013
Location: west chester, pa
Posts: 18,969
Year: 1999
Model: Cherokee(XJ)
Engine: 4.0
Default

Since there's plenty of space on the rear. It could make for a good spot to mount a hidden rear winch but idk if I ll ever use it. Lol
XJwonders is online now
Old 12-14-2018, 12:15 PM
  #605
HUH? WHAT?
Thread Starter

XJwonders's Avatar

Join Date: Jan 2013
Location: west chester, pa
Posts: 18,969
Year: 1999
Model: Cherokee(XJ)
Engine: 4.0
Default

Yours is a good idea. However I'm going to make a detachable rear bumper so maybe the 1/4 plate would have mounting points. Etc.
XJwonders is online now
Old 12-14-2018, 04:08 PM
  #606
CF Veteran

Join Date: Apr 2016
Location: Pasquotank, NC
Posts: 1,593
Year: 1990
Model: Cherokee
Engine: 4.0
Default

Plate doesn't offer much in the way of rigidity. I would use channel across the cut ends. Notch the frame for the channel to fit up tight (inside of 'C' facing forward). You can then through bolt the bumper to the channel.
bad_idea is offline
Old 12-14-2018, 04:20 PM
  #607
HUH? WHAT?
Thread Starter

XJwonders's Avatar

Join Date: Jan 2013
Location: west chester, pa
Posts: 18,969
Year: 1999
Model: Cherokee(XJ)
Engine: 4.0
Default

I wasn't gonna mount the bumper on the across member. I was going to drill new holes along the frame and use same brackets in place. I would just add secondary mounting support along the cross member. However I think I could use the channel idea instead. Only if I can find one around here.
XJwonders is online now
Old 12-14-2018, 04:23 PM
  #608
CF Veteran

Join Date: Apr 2016
Location: Pasquotank, NC
Posts: 1,593
Year: 1990
Model: Cherokee
Engine: 4.0
Default

Know anyone with a brake? You could get some 1/8" sheet metal and make your own channel of appropriate size to match the height of the frame rails. I assume the frame rails are the same 16 gauge the XJ rails are, so 12 gauge (1/8") will be stronger than the frame rails.
bad_idea is offline
Old 12-14-2018, 05:29 PM
  #609
CF Veteran

CurrySoSpicy's Avatar

Join Date: Jun 2016
Location: York PA
Posts: 2,927
Year: 2001
Model: Cherokee
Engine: 4.0 Litre I6
Default

I was takening a **** at a bar and there was graffiti on the toilet stall that said to come to this thread for a good time.
CurrySoSpicy is offline
Old 12-14-2018, 05:33 PM
  #610
CF Veteran

Join Date: Apr 2016
Location: Pasquotank, NC
Posts: 1,593
Year: 1990
Model: Cherokee
Engine: 4.0
Default

WTF? You went to the bathroom I wrote that in? Hell of a coincidence.

Quick story. I work in the ship yard. Some of the graffiti in the bathrooms are interesting. There is plenty of it and a lot of the guys in the yards aren't too bright. Anyways, one time while working a long job on a carrier (they had bathroom trailers on the aircraft elevators) I wrote 'For a good time call Mike (and his number)'. It took a couple weeks, but he finally used that stall. He came out cussing me. He said that explained some of the calls he had been receiving.
bad_idea is offline
Old 12-14-2018, 05:45 PM
  #611
CF Veteran

CurrySoSpicy's Avatar

Join Date: Jun 2016
Location: York PA
Posts: 2,927
Year: 2001
Model: Cherokee
Engine: 4.0 Litre I6
Default

Originally Posted by bad_idea View Post
WTF? You went to the bathroom I wrote that in? Hell of a coincidence.

Quick story. I work in the ship yard. Some of the graffiti in the bathrooms are interesting. There is plenty of it and a lot of the guys in the yards aren't too bright. Anyways, one time while working a long job on a carrier (they had bathroom trailers on the aircraft elevators) I wrote 'For a good time call Mike (and his number)'. It took a couple weeks, but he finally used that stall. He came out cussing me. He said that explained some of the calls he had been receiving.
haha! Thats hilarious!
CurrySoSpicy is offline
Old 12-14-2018, 06:44 PM
  #612
HUH? WHAT?
Thread Starter

XJwonders's Avatar

Join Date: Jan 2013
Location: west chester, pa
Posts: 18,969
Year: 1999
Model: Cherokee(XJ)
Engine: 4.0
Default

So I went ahead with the chop. It came out nicely if I do say so myself

First I yanked the fuel tank out... I forgot that it was nearly full so I used the crane to pull it out.
I mean I can't have the sparks fly if it's still there.

Attachment 403868

The tale of SuperMJ-photo327.jpg

Then chopped it

Attachment 403864

The tale of SuperMJ-photo890.jpg

Attachment 403866

The tale of SuperMJ-photo558.jpg


I will decide on how it gonna be finished regarding the ends later as I go along with the bed build. One thing I'm considering is a hidden winch set up because it look like there's still gonna be some room available between the X.

I also finally cut some tubing and welded up the steering links

Attachment 403867

The tale of SuperMJ-photo444.jpg

Attachment 403863

The tale of SuperMJ-photo287.jpg


Now I gotta paint it and ream the pitman arm.


Also while looking at the sliders I can see there's gonna be some room just below the bed and above the sliders. I'm thinking maybe one side will have a storage box for tie downs, etc and put a 2 gallon air tank at the other side. The space is approximately 8"x9"x20"

Attachment 403865

The tale of SuperMJ-photo672.jpg

I also found some TREs that I don't need anymore. It's UTK drag link end and offset tie rod. Anybody wanna buy them?

Attachment 1

Attachment 1

Attachment 403869

Yep

Last edited by XJwonders; 12-14-2018 at 07:10 PM.
XJwonders is online now
Old 12-14-2018, 07:07 PM
  #613
HUH? WHAT?
Thread Starter

XJwonders's Avatar

Join Date: Jan 2013
Location: west chester, pa
Posts: 18,969
Year: 1999
Model: Cherokee(XJ)
Engine: 4.0
Default

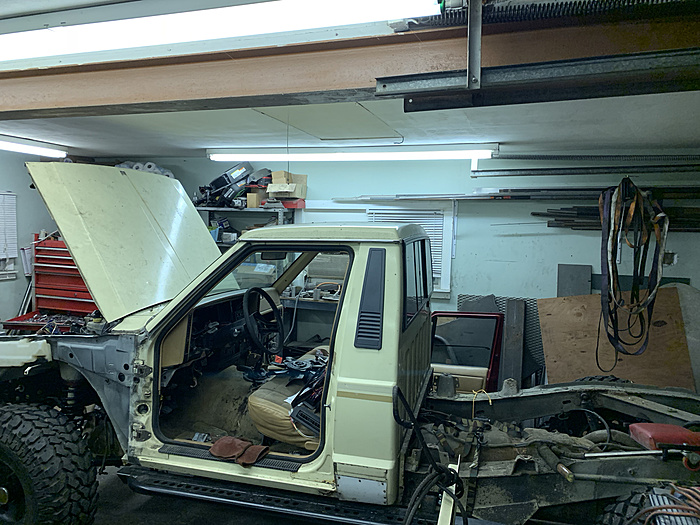

Didn't think I posted pictures with the doors off

The tale of SuperMJ-photo474.jpg

The tale of SuperMJ-photo357.jpg
XJwonders is online now
Old 12-14-2018, 07:32 PM
  #614
CF Veteran

SatiricalHen's Avatar

Join Date: Oct 2013
Location: Greenville, SC
Posts: 5,217
Year: 1999
Model: Cherokee(XJ)
Engine: 4.0
Default

I need to do the washer tank in the fender on mine. I'm just running out of steam to work on my Comanche
SatiricalHen is offline
Old 12-14-2018, 07:34 PM
  #615
HUH? WHAT?
Thread Starter

XJwonders's Avatar

Join Date: Jan 2013
Location: west chester, pa
Posts: 18,969
Year: 1999
Model: Cherokee(XJ)
Engine: 4.0
Default

Originally Posted by SatiricalHen
I need to do the washer tank in the fender on mine. I'm just running out of steam to work on my Comanche
Refill with water
XJwonders is online now
