XJ Steering Stabilizer Mounting
Ok, a few questions
I don't want to argue the virtue of a steering stabilizer but just asking for a little advice. I have the parts and they are going to be put on, so please let's save the debate. 2000 Cherokee XJ Sport.
I have a Rubicon Express steering shock to put on, mounted to the stock location on the body side and to the drag link with a Ruff Stuff bracket similar to the picture. This is being done to eliminate bump steer as I replaced the front stock suspension with a Rustys 1 Ton conversion kit.

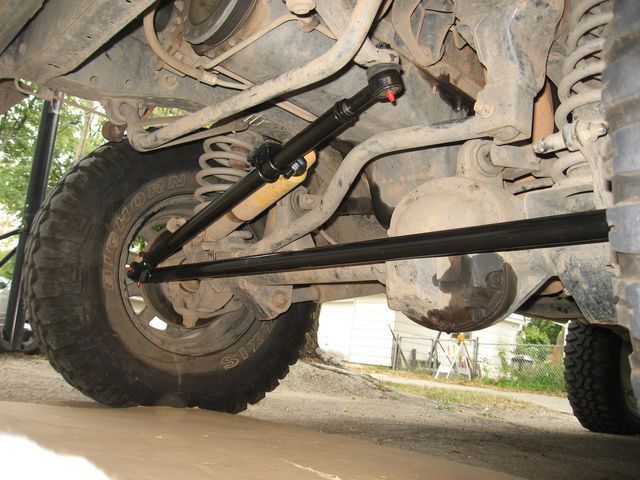

Mounting like this (internet Picture)

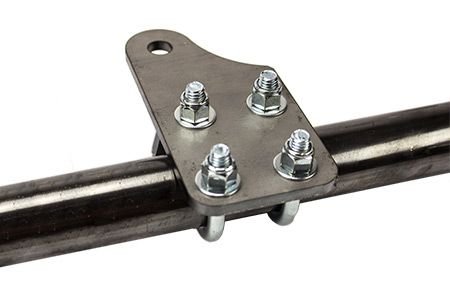

Ruff Stuff Aftermarket Bracket
Question;
Can I use the stock frame mount location for the frame end? Has anyone done this without the use of an aftermarket frame side bracket? (The picture says yes)
How far should I pull the shock rod out to ensure nonbinding travel in both left and right direction? Is there a "standard" lenght?
With the Ruff Stuff bracket the shock body lines up correctly on both ends so just trying to get some confirmation on shock shaft lenght.
Thanks for the help.
I don't want to argue the virtue of a steering stabilizer but just asking for a little advice. I have the parts and they are going to be put on, so please let's save the debate. 2000 Cherokee XJ Sport.
I have a Rubicon Express steering shock to put on, mounted to the stock location on the body side and to the drag link with a Ruff Stuff bracket similar to the picture. This is being done to eliminate bump steer as I replaced the front stock suspension with a Rustys 1 Ton conversion kit.
Mounting like this (internet Picture)
Ruff Stuff Aftermarket Bracket
Question;
Can I use the stock frame mount location for the frame end? Has anyone done this without the use of an aftermarket frame side bracket? (The picture says yes)
How far should I pull the shock rod out to ensure nonbinding travel in both left and right direction? Is there a "standard" lenght?
With the Ruff Stuff bracket the shock body lines up correctly on both ends so just trying to get some confirmation on shock shaft lenght.
Thanks for the help.
Last edited by MotoBoss; 08-15-2018 at 09:42 AM.
#2
Newbie
Join Date: Mar 2016
Location: NEPA
Posts: 23
Likes: 0
Received 0 Likes
on
0 Posts
Year: 2000
Model: Cherokee
Yep, Used to have Rusty's steering and a stabilizer with a similar bracket. For setup, Turn the wheels all the way passenger and mount the stabilizer 1/2"-1" from being fully collapsed. That way it never bottoms out and you should have full travel with consistent damping. Turn all the way driver to be sure the damper extends fully without binding and you are good to go.
on a side note: ditched the rustys steering because there was no way to mitigate bump steer and wandering. this was with all new components, no play anywhere and a good alignment. Replaced Rusty junk with basic v8 ZJ steering and i could not be happier. Wished i scrapped the rustys stuff sooner/
on a side note: ditched the rustys steering because there was no way to mitigate bump steer and wandering. this was with all new components, no play anywhere and a good alignment. Replaced Rusty junk with basic v8 ZJ steering and i could not be happier. Wished i scrapped the rustys stuff sooner/
#3
Junior Member
Thread Starter
Join Date: Jan 2017
Location: Indiana
Posts: 85
Likes: 0
Received 0 Likes
on
0 Posts
Year: 2000
Model: Cherokee
Engine: 4.0
Yep, Used to have Rusty's steering and a stabilizer with a similar bracket. For setup, Turn the wheels all the way passenger and mount the stabilizer 1/2"-1" from being fully collapsed. That way it never bottoms out and you should have full travel with consistent damping. Turn all the way driver to be sure the damper extends fully without binding and you are good to go.
on a side note: ditched the rustys steering because there was no way to mitigate bump steer and wandering. this was with all new components, no play anywhere and a good alignment. Replaced Rusty junk with basic v8 ZJ steering and i could not be happier. Wished i scrapped the rustys stuff sooner/
on a side note: ditched the rustys steering because there was no way to mitigate bump steer and wandering. this was with all new components, no play anywhere and a good alignment. Replaced Rusty junk with basic v8 ZJ steering and i could not be happier. Wished i scrapped the rustys stuff sooner/
The knuckles had to be reamed in the conversion so did you have to replace the knuckles too?
Thanks again for your reply, at least I'm on the right path.
Last edited by MotoBoss; 08-15-2018 at 03:24 PM.
#4
Newbie
Join Date: Mar 2016
Location: NEPA
Posts: 23
Likes: 0
Received 0 Likes
on
0 Posts
Year: 2000
Model: Cherokee
I got my XJ with Rusty's Tie Rod Conversion seen here:
http://www.rustysoffroad.com/rustys-...onversion.html
does not require reaming.
Rebuilt it twice with new tie rod ends, multiple alignments, replaced the steering damper, tried to retrofit The Cure from Ruff Stuff, and nothing helped on center wandering, tramilining, tie rod roll, and gnarly bump steer. Just a heads-up, not saying you will have those problems with the 1-ton kit, but it sounds like it.
http://www.rustysoffroad.com/rustys-...onversion.html
does not require reaming.
Rebuilt it twice with new tie rod ends, multiple alignments, replaced the steering damper, tried to retrofit The Cure from Ruff Stuff, and nothing helped on center wandering, tramilining, tie rod roll, and gnarly bump steer. Just a heads-up, not saying you will have those problems with the 1-ton kit, but it sounds like it.
#5
Junior Member
Thread Starter
Join Date: Jan 2017
Location: Indiana
Posts: 85
Likes: 0
Received 0 Likes
on
0 Posts
Year: 2000
Model: Cherokee
Engine: 4.0
I got my XJ with Rusty's Tie Rod Conversion seen here:
http://www.rustysoffroad.com/rustys-...onversion.html
does not require reaming.
Rebuilt it twice with new tie rod ends, multiple alignments, replaced the steering damper, tried to retrofit The Cure from Ruff Stuff, and nothing helped on center wandering, tramilining, tie rod roll, and gnarly bump steer. Just a heads-up, not saying you will have those problems with the 1-ton kit, but it sounds like it.
http://www.rustysoffroad.com/rustys-...onversion.html
does not require reaming.
Rebuilt it twice with new tie rod ends, multiple alignments, replaced the steering damper, tried to retrofit The Cure from Ruff Stuff, and nothing helped on center wandering, tramilining, tie rod roll, and gnarly bump steer. Just a heads-up, not saying you will have those problems with the 1-ton kit, but it sounds like it.
#6
Junior Member
Thread Starter
Join Date: Jan 2017
Location: Indiana
Posts: 85
Likes: 0
Received 0 Likes
on
0 Posts
Year: 2000
Model: Cherokee
Engine: 4.0
Got the steering shock mounted today and it has certainly made a difference. I like it. Not 100% stock feel and alignment but much better. I can live with it,,,,for now.
Thanks hour the help.
