Rubicon Express leaf spring bushings?
There's not much out there that I could find on bushings that will work with RE Leaf Springs (1.5" Eye) so I figured I'd make a thread and get some opinions on what I found.
So I emailed Rubicon Express and they informed that no bushings other than the rubber ones they sell would work. Well I wasn't going to let that stop me considering they were shot after not even 15,000 miles and they wanted $80.
I found out that Moog PN: SB317 is an alternative rubber bushing which is normally for a CJ7 I believe. They're pretty damn close to the RE ones
Being that the majority of my other bushings are Polyurethane I really wanted to go poly but I had a really hard time finding any, I ended up coming across a set from Rubicon Express which ended up being for a YJ I think. These were the ones that rubicon express claimed wouldnt work even though the dimensions were the same as their rubber bushings.
Rubicon Express PN: RE1493

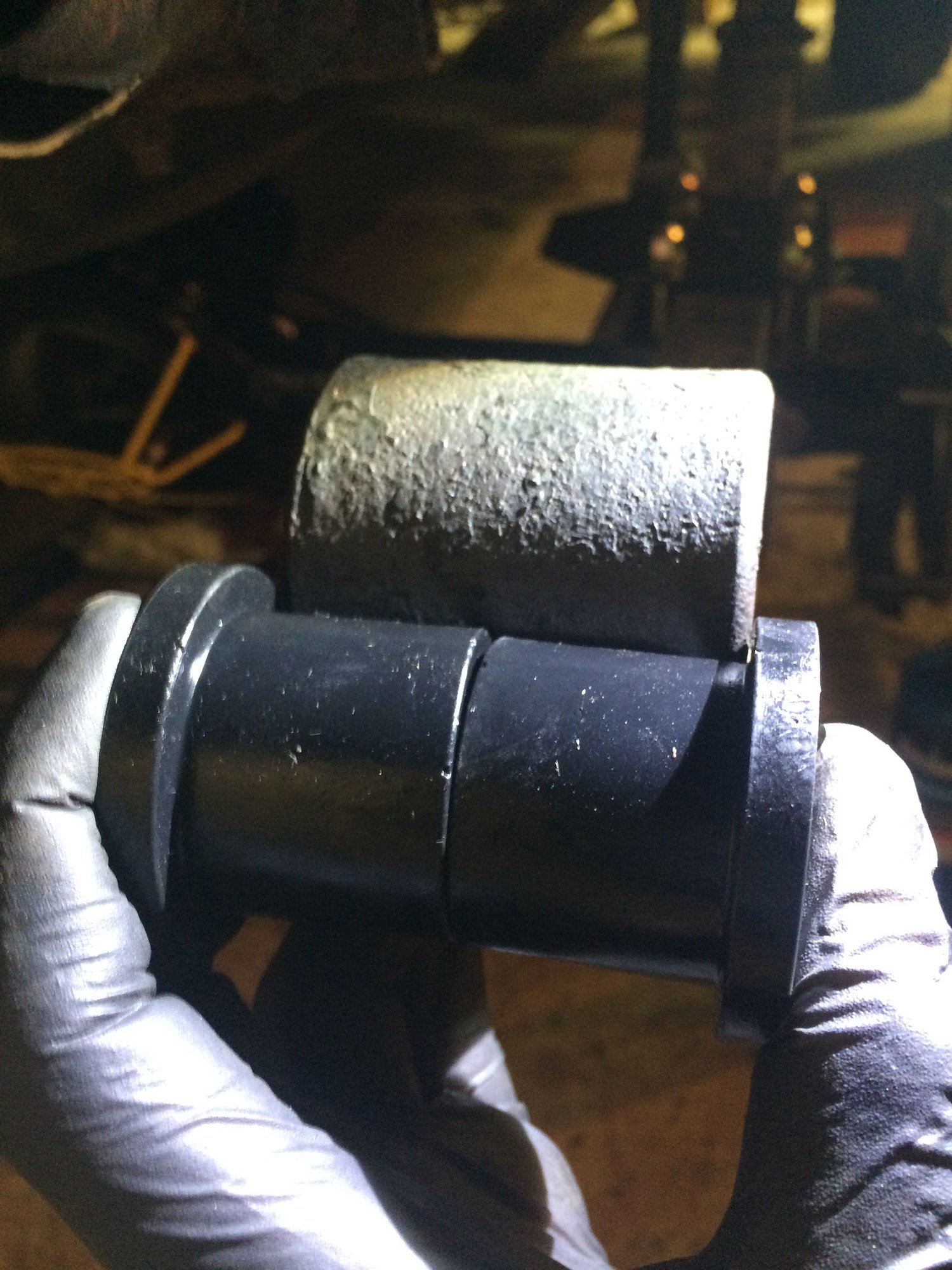

This is the MOOG and Rubicon Express Bushing side by side
Now I dont see why the Polyurathane bushings wont work but before I went and installed them I figured I'd run it by you guys since I know there are people with al ot more experience on here than me
So I emailed Rubicon Express and they informed that no bushings other than the rubber ones they sell would work. Well I wasn't going to let that stop me considering they were shot after not even 15,000 miles and they wanted $80.
I found out that Moog PN: SB317 is an alternative rubber bushing which is normally for a CJ7 I believe. They're pretty damn close to the RE ones
Being that the majority of my other bushings are Polyurethane I really wanted to go poly but I had a really hard time finding any, I ended up coming across a set from Rubicon Express which ended up being for a YJ I think. These were the ones that rubicon express claimed wouldnt work even though the dimensions were the same as their rubber bushings.
Rubicon Express PN: RE1493
This is the MOOG and Rubicon Express Bushing side by side
Now I dont see why the Polyurathane bushings wont work but before I went and installed them I figured I'd run it by you guys since I know there are people with al ot more experience on here than me
#2
Member
Thread Starter
Join Date: Jul 2011
Location: Greensburg, Pennsylvania
Posts: 151
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1998
Model: Cherokee
Engine: 4.0
Note: tried the poly bushings, they fit perfect till I tried to put the leaf into the shackle and it was just over a 1/4 too wide overall to fit.
Now correct me if I'm wrong but I don't think you can shave down the outside part of a poly bushing.
Someone let me know, the projects at a standstill until I find more out
Now correct me if I'm wrong but I don't think you can shave down the outside part of a poly bushing.
Someone let me know, the projects at a standstill until I find more out
#4
CF Veteran
Join Date: Jul 2009
Location: West Deptford, NJ
Posts: 1,839
Likes: 0
Received 7 Likes
on
7 Posts
Year: 97
Model: Cherokee
Engine: 4.0
These are what I have used. http://stengelbros.3dcartstores.com/...th_p_6804.html
http://stengelbros.3dcartstores.com/...th_p_6867.html
http://stengelbros.3dcartstores.com/...th_p_6867.html
#5
Member
Thread Starter
Join Date: Jul 2011
Location: Greensburg, Pennsylvania
Posts: 151
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1998
Model: Cherokee
Engine: 4.0
#6
Member
Thread Starter
Join Date: Jul 2011
Location: Greensburg, Pennsylvania
Posts: 151
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1998
Model: Cherokee
Engine: 4.0
These are what I have used. http://stengelbros.3dcartstores.com/...th_p_6804.html http://stengelbros.3dcartstores.com/...th_p_6867.html
