Default rocker help

Hello so im looking for ideas on how to build some rockers i have 2 steel square tubes that are 6f long.. (3 5/8 X 3 5/8) and an 1/8 thick...
Has anybody used these before or have any ideas on how to use them cutting and welding wont be a problem?
Reply
Old Nov 11, 2011 | 01:58 AM
  #2
dev_daddy's Avatar
CF Veteran

Joined: Dec 2010
Posts: 2,366
Likes: 0
From: Spanish Fork, Utah
Year: 1989
Model: Cherokee
Engine: Renix 4.0L
Default

Originally Posted by maddmike
Hello so im looking for ideas on how to build some rockers i have 2 steel square tubes that are 6f long.. (3 5/8 X 3 5/8) and an 1/8 thick...
Has anybody used these before or have any ideas on how to use them cutting and welding wont be a problem?
The section to fit the rockers is just barely under 5 feet exactly. tubing that big might be a challenge, but if you took and cut out the existing rocker right up under the door,, so the inside bottom of the door would rest on it, it probably would fit well.
Reply
Old Nov 11, 2011 | 05:36 AM
  #3
Thekid320's Avatar
Seasoned Member

Joined: Mar 2010
Posts: 416
Likes: 2
Model: Cherokee
Default

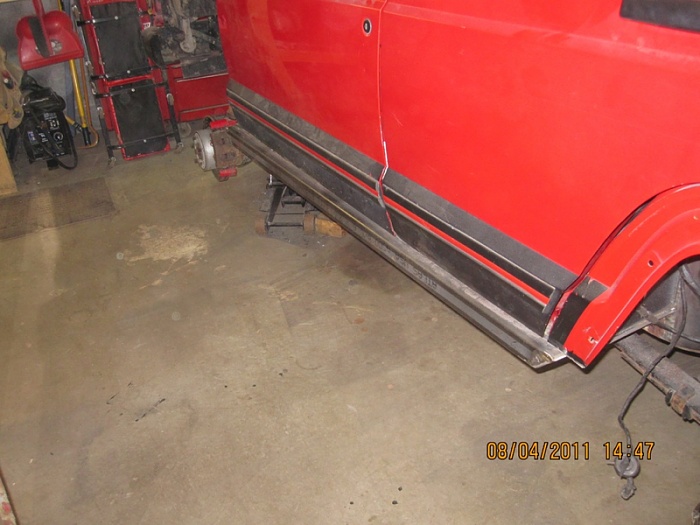

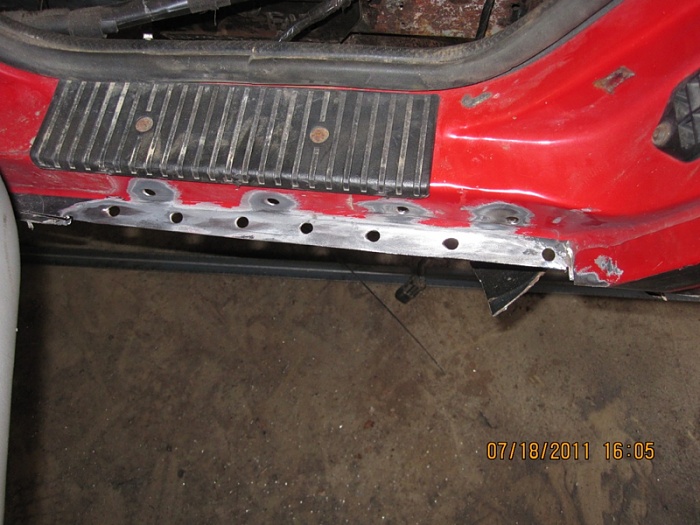

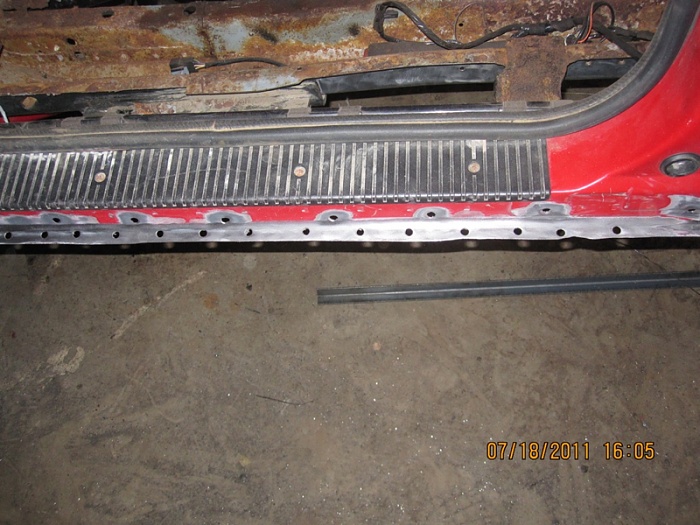

I used 2x6x3/16 box tubbing and about 10' of 1x1x1/8 angle iron cut right below the door and spot welded the angle in and then seAl welded the box tube to the angle and the floor pans
Attached Thumbnails rocker help-image-856539381.jpg   rocker help-image-160977301.jpg   rocker help-image-395377262.jpg
Reply
Old Nov 11, 2011 | 05:37 AM
  #4
Thekid320's Avatar
Seasoned Member

Joined: Mar 2010
Posts: 416
Likes: 2
Model: Cherokee
Default

Angle spot welded on
Attached Thumbnails rocker help-image-1251413585.jpg
Reply
Old Nov 11, 2011 | 08:00 AM
  #5
ChileRedBateman's Avatar
Member

Joined: May 2010
Posts: 182
Likes: 0
From: Concord, NH
Year: 1998
Model: Cherokee
Engine: 4.0L
Default

Originally Posted by Thekid320
Angle spot welded on
/\/\/\/\ really good idea, not have to weld tube to the tin foil body /\/\/\/\
Reply
Old Nov 11, 2011 | 11:52 AM
  #6
Jeepfreak1020's Avatar
CF Veteran

Joined: Jun 2009
Posts: 1,059
Likes: 0
Model: Cherokee
Default

Very nice, you have any pics of your rockers man?
Reply
Old Nov 11, 2011 | 12:02 PM
  #7
That Jeep Guy XJMJ's Avatar
CF Veteran
15 Year Member
Liked
Loved
Community Favorite

Joined: Jun 2009
Posts: 2,611
Likes: 447
From: Michigan
Year: 1987 MJ, 1973 J2000, 1986 XJ, 08 JK
Model: Comanche (MJ)
Engine: 4.0L H.O
Default

Thekid 320 you should do a fab thread and write-up on how you did your rocker's Effing nice job!
Reply
Old Nov 11, 2011 | 01:26 PM
  #8
dev_daddy's Avatar
CF Veteran

Joined: Dec 2010
Posts: 2,366
Likes: 0
From: Spanish Fork, Utah
Year: 1989
Model: Cherokee
Engine: Renix 4.0L
Default

Originally Posted by Thekid320
I used 2x6x3/16 box tubbing and about 10' of 1x1x1/8 angle iron cut right below the door and spot welded the angle in and then seAl welded the box tube to the angle and the floor pans
What kind of welder were you using? And what amperage were you running at?
Reply
Old Nov 11, 2011 | 03:15 PM
  #9
Gee oh Dee's Avatar
CF Veteran

Joined: Sep 2010
Posts: 21,168
Likes: 5
From: Milwaukee, WI
Year: 1987
Engine: Check
Default

Moved to advanced Tech.
Reply
Old Nov 11, 2011 | 05:40 PM
  #10
Thekid320's Avatar
Seasoned Member

Joined: Mar 2010
Posts: 416
Likes: 2
Model: Cherokee
Default

Miller 211 mig can't remember the settings I will try to get a build thread on them
Reply
Old Nov 11, 2011 | 05:40 PM
  #11
Thekid320's Avatar
Seasoned Member

Joined: Mar 2010
Posts: 416
Likes: 2
Model: Cherokee
Default

I will try to do it tonight
Reply
