relocation bracket explained
can anyone tell me about relocation brackets? why they are used, what do they do and when to know if you need them?
#3
CF Veteran
Join Date: Jan 2013
Location: west chester, pa
Posts: 19,216
Likes: 0
Received 39 Likes
on
35 Posts
Year: 1999
Engine: 4.0
It relocates the shackles lower to place it at a better angle. (Most lift leaf packs is still the same length from eye to eye) and it moves the shackles to a different angle (most of the time 90 degree). It create a rougher ride. Ideally it should be at 45 degrees.
#5
Moderator CF K9-unit
Join Date: Apr 2012
Location: Alaska
Posts: 5,842
Likes: 0
Received 9 Likes
on
8 Posts
Year: 2000 sport
Model: Cherokee (XJ)
Engine: New 4.0l from s&j engines
A 45 degree shackle angle is what you want to achieve good flex in the back.
Plus they smooth out the ride in a lifted Cherokee..
some shackle relocation will give you a small amount of lift.
and some that don't give lift.
this guy has them both, little lift or no lift.
http://hdoffroadengineering.myshopif...ation-brackets
100.00 bucks shipped
If you look at most guys jeeps they have a bad shackle angle of 90 degrees(gives bumpy stiff ride and flex could be better)
like this jeep.
Another example of bad shackle angle

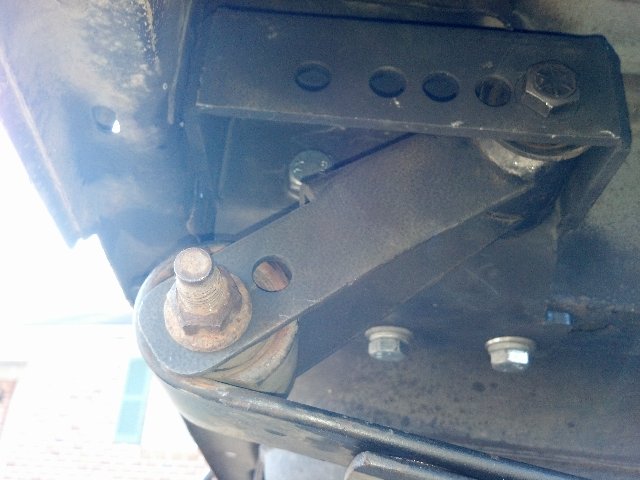

A good shackle angle looks like this..
one more
These guys show you how to make some if you want to try that way.
Last edited by Dumajones; 03-12-2015 at 08:31 PM.
