push button on 98 xj
#1
Junior Member
Thread Starter
Join Date: Jan 2010
Location: Valley City, Ohio
Posts: 81
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1998
Model: Cherokee
Engine: 4.0L
push button on 98 xj
ok. give me a jeep and i can lift it, fab it whatever. electronics... meh. no. want to put push button ignition in jeep. tumbler is busted. i want to flip the switch and then push the button for start. is this possible. like switch to on. push to start. no key no tumbler action. is this possible? what wires do what? i cant seem to find a diagram for a 98-2001. only older. any help great thanked.
#2
Senior Member
Join Date: Oct 2011
Location: Longview, TX
Posts: 689
Likes: 0
Received 2 Likes
on
2 Posts
Year: 1998
Model: Cherokee
Engine: 4.0L
https://www.cherokeeforum.com/f51/pu...w-o-key-98963/
This should work for yours as well. I believe the wiring is the same as my 98.
Just check the wires with a test light and look at your wiring diagram. You will also need to remove the lock plate if you don't want to use the key.
This should work for yours as well. I believe the wiring is the same as my 98.
Just check the wires with a test light and look at your wiring diagram. You will also need to remove the lock plate if you don't want to use the key.
Last edited by 98XJ40K; 04-12-2013 at 11:03 PM.
#3
Junior Member
Thread Starter
Join Date: Jan 2010
Location: Valley City, Ohio
Posts: 81
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1998
Model: Cherokee
Engine: 4.0L
all is working except there is no green and black wire. i dont know which wire is the acc power and its driving me crazy
#5
Seasoned Member
Join Date: Aug 2011
Location: Michigan--> SOCAL--> Eastern Carolina--> Middle Tennessee
Posts: 264
Likes: 0
Received 0 Likes
on
0 Posts
Year: 01,01,99,98,97,97,96,94,90MJ,90MJ,86MJ
Model: Cherokee
Engine: 4.0
i dont have a test light handy as im temporarily living in california for the marine corps. but im having the same broken tumbler problem you are and everything has worked and it starts with the push button but i cannot kill my motor, is this due to the fact i dont have the ACC wire hooked to the on off switch? cus im not sure which wire it is either. if you figure it out could you please let me know. thanks!

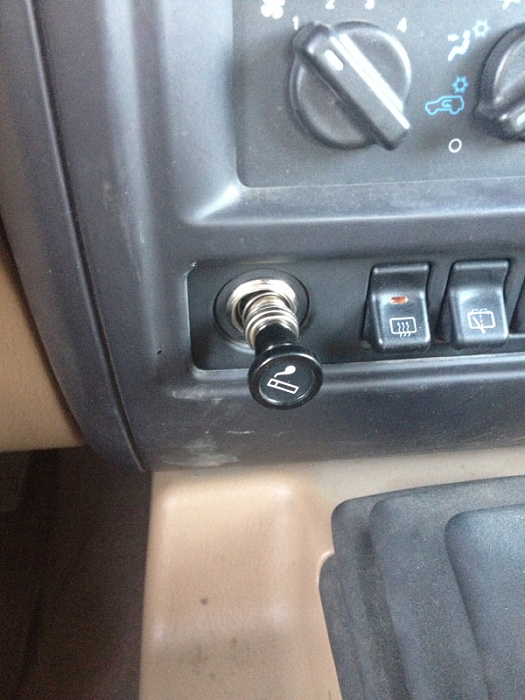

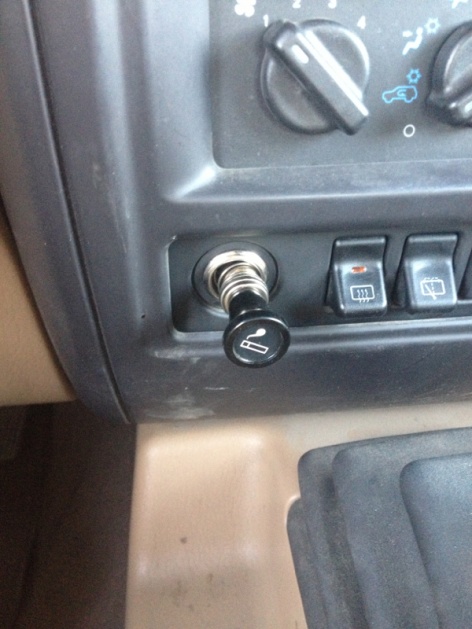

also not sure which push button you bought but if you get the sliver dorman brand one and you take your cig lighter heater out and then drill out the bottom of the metal sleeve that is mounted into your dash the push button will fit in there perfectly and noone will notice it. my wife thought i was magic when i started my rig haha
also not sure which push button you bought but if you get the sliver dorman brand one and you take your cig lighter heater out and then drill out the bottom of the metal sleeve that is mounted into your dash the push button will fit in there perfectly and noone will notice it. my wife thought i was magic when i started my rig haha
#6
Junior Member
Thread Starter
Join Date: Jan 2010
Location: Valley City, Ohio
Posts: 81
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1998
Model: Cherokee
Engine: 4.0L
Blue wire is kill wire. And I finally figured out that the black wire, white stripe is what finally got all of mine working. Thanks for the starting point 98XJ40K
#7
Seasoned Member
Join Date: Aug 2011
Location: Michigan--> SOCAL--> Eastern Carolina--> Middle Tennessee
Posts: 264
Likes: 0
Received 0 Likes
on
0 Posts
Year: 01,01,99,98,97,97,96,94,90MJ,90MJ,86MJ
Model: Cherokee
Engine: 4.0
Trending Topics
#8
Newbie
Join Date: Jan 2011
Location: Cedartown, Ga
Posts: 6
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1999
Model: Cherokee
I installed a pushbutton on my wifes xj. It has a dead wire somewhere, and after 3 days of chasing wiring I said F it and installed a pushbutton. I ran a 4ga wire from the battery into the jeep, thru the pushbutton, and then into the underhood fuse block. I pulled the "starter relay", and figured out which terminal actually sent power to the solenoid. I put a male spade terminal on the wire and plugged it in. The starter will function without the key in the switch, but the jeep wont crank and run unless the key is in the "on" position.
#9
Junior Member
Thread Starter
Join Date: Jan 2010
Location: Valley City, Ohio
Posts: 81
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1998
Model: Cherokee
Engine: 4.0L
Ok, I lied black wire with white stripe is not acc power. Like an idiot I tested it and it gets power with acc on, and loses it when shut off. And it turned the radio on, so I thought it was it. Like an idiot. Which is fine for my application, that's really all I wanted. But it does not send power to rear wiper or blower fan. Please excuse my stupidity and I hope I didn't screw anyone up...
