Please help me identify what lift kit/suspension I have... LOTS OF PICS
I picked up my first Jeep/4x4, it's a beater 1996 XJ Sport on 33's that the PO said had a 4.5" lift with Rancho shocks in the back, but wasn't sure what front shocks it had (installed by the PO to him).

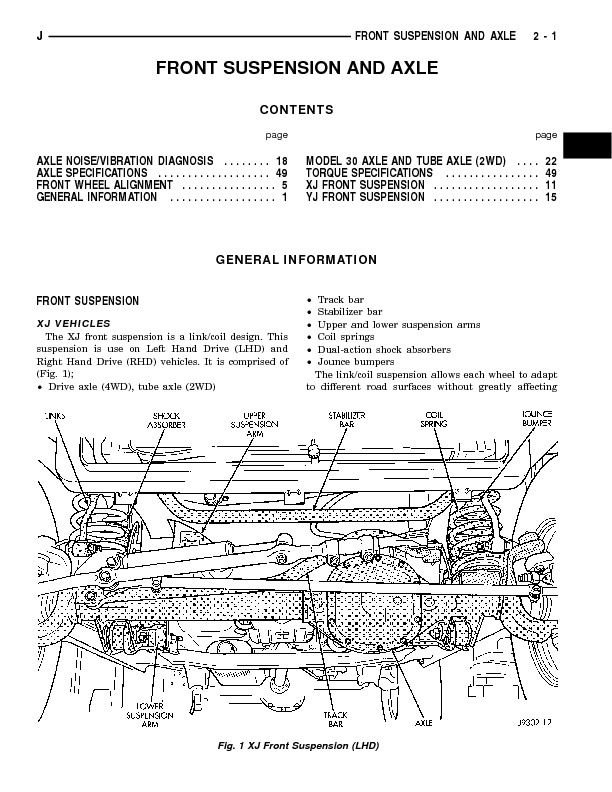

I thought almost everything in the front suspension was aftermarket until I saw this image and now I am thinking most of it is stock.
Front left
Front center
Front right
Front left from behind the wheel

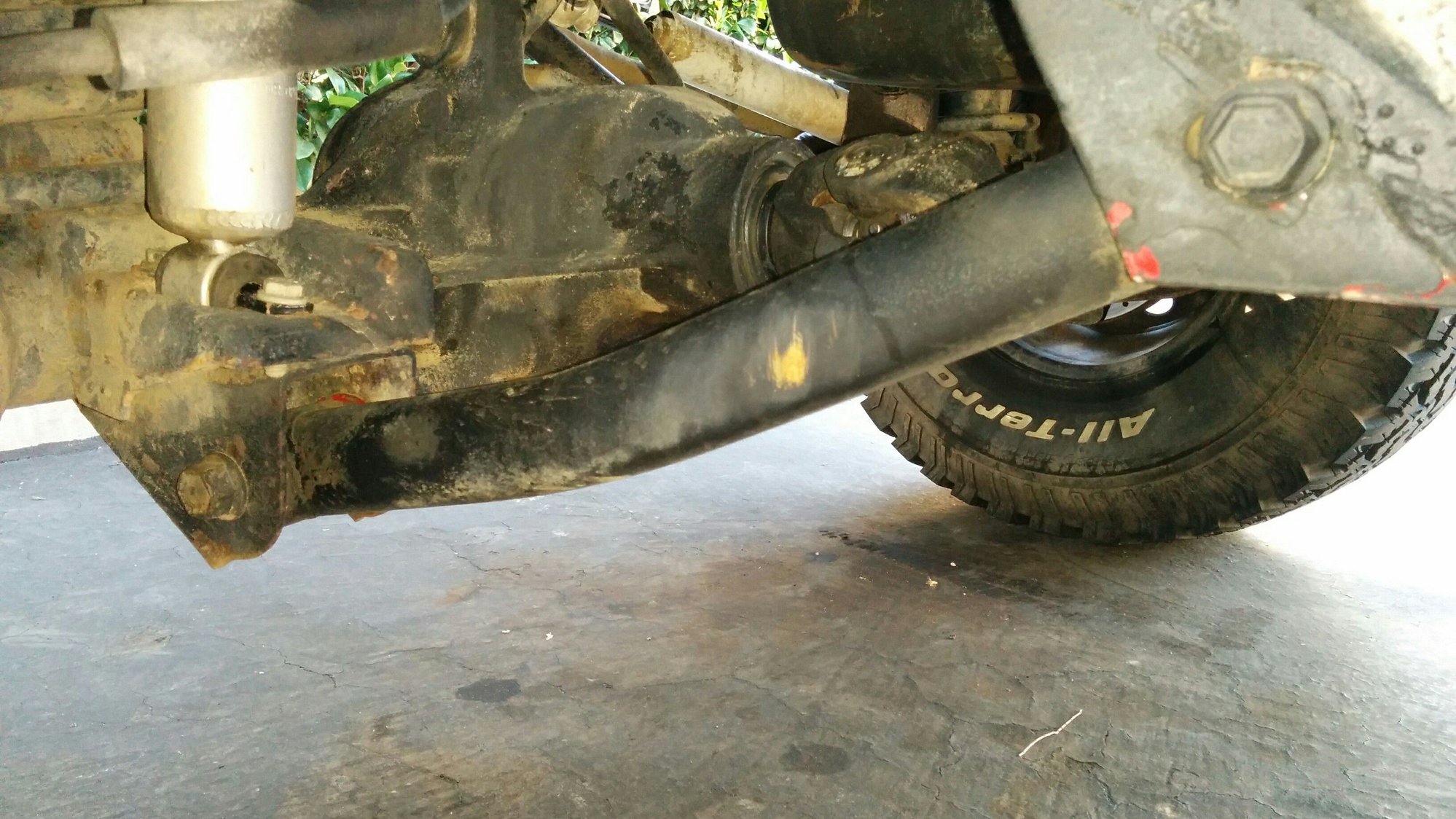

Front left under
Left rear
Left rear back
Right rear front of wheel
Right front behind wheel
Right spring
Right front
Drag link?
Next question...
How big of a lift do I have?
Headlight to ground
Top of home made fender
Lastly, I noticed this seal/boot was ripped during the photoshoot.
As always, thanks for looking and for any insight into what I have gotten myself into.
I thought almost everything in the front suspension was aftermarket until I saw this image and now I am thinking most of it is stock.
Front left
Front center
Front right
Front left from behind the wheel
Front left under
Left rear
Left rear back
Right rear front of wheel
Right front behind wheel
Right spring
Right front
Drag link?
Next question...
How big of a lift do I have?
Headlight to ground
Top of home made fender
Lastly, I noticed this seal/boot was ripped during the photoshoot.
As always, thanks for looking and for any insight into what I have gotten myself into.
#2
Senior Member
Join Date: May 2013
Location: Maryland
Posts: 681
Likes: 0
Received 28 Likes
on
23 Posts
Year: 1997
Model: Cherokee
Engine: 4.0
Its not stock. Lower control arms, springs, sway bar disconnects, its bump stopped, looks like it might have a SYE based on the rear axle position but need to see the driveshaft. Needs a nee double shear adjustable track bar and a steering upgrade. Beyond that its pretty complete looking. How does it drive and ride?
#3
Member
Thread Starter
Join Date: Feb 2015
Location: Southern Kalifornistan
Posts: 103
Received 0 Likes
on
0 Posts
Year: 1996
Model: Cherokee
Engine: 4.0
Front shaft
Driveshaft
It drives good I guess. It is my first lifted vehicle and I don't have much to compare it to. It drives straight, it does not have death wobble or any major vibrations. The few people that have ridden in it say it seems normal (noise/vibration wise). It is pretty stiff in in the dirt, but I realized it is probably my fault. I forgot to air down the tires and I did not release the sway bar disconnects. It has a few knocks/clunks here and there (one noticeable one I can feel in the driver side foot well) and creaks when in the dirt.
What does a steering upgrade run cost wise? Any recommendation on which Adjustable Double Shear Track Bar Kit to get?
Any idea on how high my lift is?
Driveshaft
It drives good I guess. It is my first lifted vehicle and I don't have much to compare it to. It drives straight, it does not have death wobble or any major vibrations. The few people that have ridden in it say it seems normal (noise/vibration wise). It is pretty stiff in in the dirt, but I realized it is probably my fault. I forgot to air down the tires and I did not release the sway bar disconnects. It has a few knocks/clunks here and there (one noticeable one I can feel in the driver side foot well) and creaks when in the dirt.
What does a steering upgrade run cost wise? Any recommendation on which Adjustable Double Shear Track Bar Kit to get?
Any idea on how high my lift is?
Its not stock. Lower control arms, springs, sway bar disconnects, its bump stopped, looks like it might have a SYE based on the rear axle position but need to see the driveshaft. Needs a nee double shear adjustable track bar and a steering upgrade. Beyond that its pretty complete looking. How does it drive and ride?
Last edited by WiKDMoNKY; 03-09-2015 at 10:05 PM.
#4
Senior Member
Join Date: May 2013
Location: Maryland
Posts: 681
Likes: 0
Received 28 Likes
on
23 Posts
Year: 1997
Model: Cherokee
Engine: 4.0
No SYE but thats ok if its driving decent for now. Lookup ZJ tie rod upgrade as for track bar Iron Rock Offroad is popular. I run it. For lift measure from top of the axle tube to frame. 6-6 3/4 is stock. One is front one is rear but it escapes me at the moment. The difference will be your lift.
#5
Member
Join Date: Nov 2014
Location: Manitoba, Canada
Posts: 197
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1992
Model: Cherokee
Engine: 4.0
Judging by most of the components honestly looks like either the 3" BDS kit or 4.5" but its lacking alot of the parts from the 4.5" if it was. My bets are on the 3" kit though.
#6
Member
Thread Starter
Join Date: Feb 2015
Location: Southern Kalifornistan
Posts: 103
Received 0 Likes
on
0 Posts
Year: 1996
Model: Cherokee
Engine: 4.0
#7
Member
Join Date: Nov 2014
Location: Manitoba, Canada
Posts: 197
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1992
Model: Cherokee
Engine: 4.0
Looking at it a second time, it does look alot like the BDS 3". The rear looks like a aal spring. Also I'm pretty sure BDS doesn't use red bushings on their control arms. You also still have the stock tracbar just relocated over more.
Trending Topics
#8
CF Veteran
Join Date: Oct 2011
Location: Hudsonville, MI
Posts: 1,630
Likes: 0
Received 3 Likes
on
2 Posts
Year: 1986
Model: Cherokee
Engine: 5.0
Does it have the transfer case drop? You'll either need that or a SYE. It's spacers between the crossmember and unibody.
The shackles are BDS or Zone along with the springs. Looks like a nice kit. Installed many.
Last edited by jbsjunk; 03-11-2015 at 03:48 PM.
