oil and trans cooler
#1
Senior Member
Thread Starter
Join Date: Jan 2012
Location: High Desert AV
Posts: 576
Likes: 0
Received 0 Likes
on
0 Posts
Year: 88
Model: Cherokee
Engine: inline 6 4.0 liter renix
oil and trans cooler
Iam going to replace my radiator still debating on what one. But I have looked around and haven't fond much on oil and trans cooler anybody got anything.or just get new oem parts
#3
Senior Member
Thread Starter
Join Date: Jan 2012
Location: High Desert AV
Posts: 576
Likes: 0
Received 0 Likes
on
0 Posts
Year: 88
Model: Cherokee
Engine: inline 6 4.0 liter renix
Well I wanted to switch to open system. 2 row maybe 3. All aluminum ..iam running 33's on a 16 steel rim...I seen some one else with that same trans cooler. What about a oil cooler
#4
CF Veteran
Join Date: Nov 2011
Location: City of Trees, CA
Posts: 7,387
Likes: 0
Received 10 Likes
on
9 Posts
Year: 93 2 door
Model: Cherokee
Engine: 4.0
All metal 2 row is the right choice. 3 row might not hurt you, but there's really no reason you should need one
And a B&M cooler is a great idea for an auto trans
And a B&M cooler is a great idea for an auto trans
#5
CF Veteran
Join Date: Aug 2010
Location: The Florida State University
Posts: 8,387
Likes: 0
Received 1 Like
on
1 Post
Year: 2001
Model: Cherokee
Engine: I-6 4.0 L
I never quite understood th whole three row argument. The radiator is no bigger, the coolant tubes in the radiator have a smaller diameter. Sure more coolant disappearing heat but if you aren't running JeepSpeed, a 2 row or OEM is plenty. Cherokees will run for 300,000 miles with an OEM radiator.
#6
CF Veteran
Join Date: Feb 2012
Location: college station
Posts: 1,116
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1988
Model: Comanche
Engine: 4.0
I never quite understood th whole three row argument. The radiator is no bigger, the coolant tubes in the radiator have a smaller diameter. Sure more coolant disappearing heat but if you aren't running JeepSpeed, a 2 row or OEM is plenty. Cherokees will run for 300,000 miles with an OEM radiator.
#7
CF Veteran
Join Date: Feb 2012
Location: college station
Posts: 1,116
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1988
Model: Comanche
Engine: 4.0

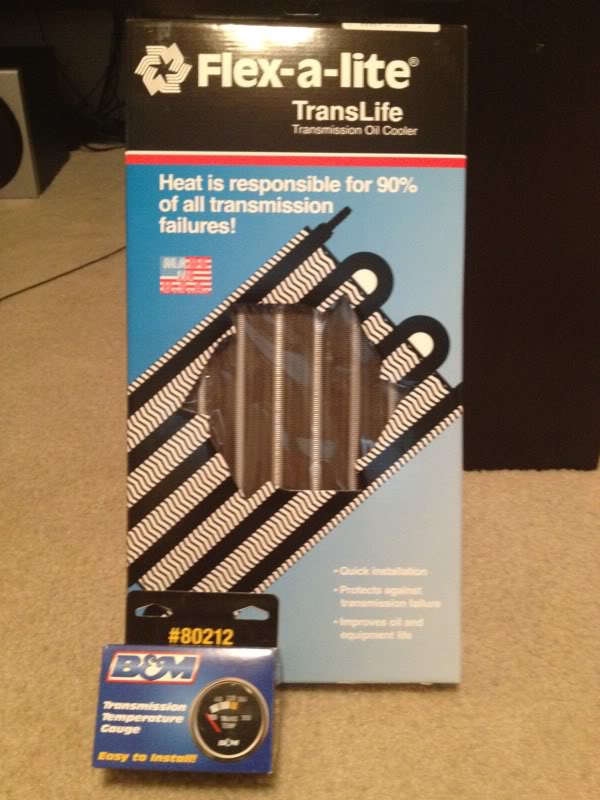

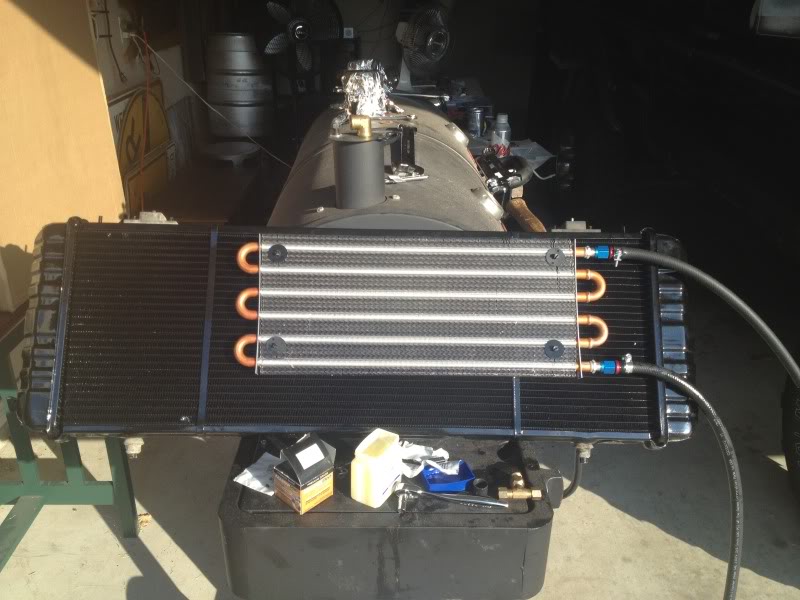

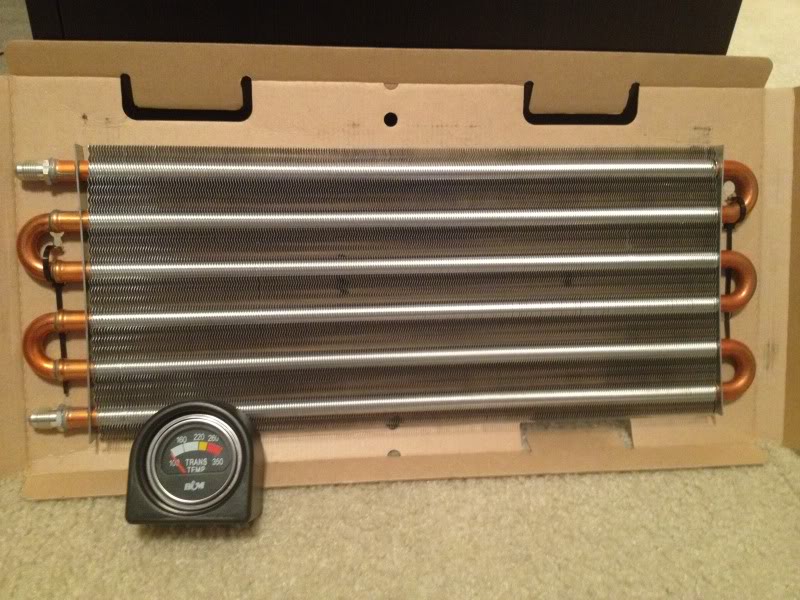

I am in the middle of hooking up a flexalite trans cooler that I got from summit along with a B&m trans temp gauge and hooking it up on a cfs 3 row all metal radiator.
Trending Topics
#8
Senior Member
Thread Starter
Join Date: Jan 2012
Location: High Desert AV
Posts: 576
Likes: 0
Received 0 Likes
on
0 Posts
Year: 88
Model: Cherokee
Engine: inline 6 4.0 liter renix
Originally Posted by zebvance
I am in the middle of hooking up a flexalite trans cooler that I got from summit along with a B&m trans temp gauge and hooking it up on a cfs 3 row all metal radiator.
#10
CF Veteran
Join Date: Feb 2012
Location: college station
Posts: 1,116
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1988
Model: Comanche
Engine: 4.0
#11
CF Veteran
Join Date: Oct 2011
Location: Seal Beach, CA
Posts: 4,440
Likes: 0
Received 2 Likes
on
1 Post
Year: 1996
Model: Cherokee
Engine: 4.0 HO Straight Six
Originally Posted by zebvance
That is not true, 3 rows are much thicker than the oem. Plus most 3 rows are all metal and do not have plastic tanks. With the metal tanks it allows better heat transfer than the plastics.
And the link that Atmos posted is the cooler you want
#12
Senior Member
Thread Starter
Join Date: Jan 2012
Location: High Desert AV
Posts: 576
Likes: 0
Received 0 Likes
on
0 Posts
Year: 88
Model: Cherokee
Engine: inline 6 4.0 liter renix
Originally Posted by zebvance
I got both for about 100 bucks shipped from summitracing.com
#13
CF Veteran
Join Date: Feb 2012
Location: college station
Posts: 1,116
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1988
Model: Comanche
Engine: 4.0
I will try to post pictures of the two radiators side by side.
#14
CF Veteran
Join Date: Feb 2012
Location: college station
Posts: 1,116
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1988
Model: Comanche
Engine: 4.0
Not off the top of my head but I can post it on here when I get home this afternoon. An it's halfway installed, when I went to hook it all up I noticed both of my trans cooling lines looked like they were leaking abut so I ordered more and I'm waiting for them to come in.
#15
CF Veteran
Join Date: Oct 2011
Location: Seal Beach, CA
Posts: 4,440
Likes: 0
Received 2 Likes
on
1 Post
Year: 1996
Model: Cherokee
Engine: 4.0 HO Straight Six
Would have to disagree still I just put my old one and 3 row side by side and the fins are a good 3/4-1 inch thicker, that's saying alot when the stock fin thickness is about 1 inch to begin with. With that said the cfs increases the cooling fin surface area by almost 50%. Even so that's not the main reason why I went with the cfs 3 row, the reason was that it was a all metal with no plastic tanks. The aftermarket radiators with the pastic tanks are not as good quality as the stock plastics from the factory, they use a cheaper plastic and seal between the pastic tanks and metal radiator, which in turn breaks down, becomes brittle and will leak eventually. I have seen it happen to 1 aftermarket oe replacement jeep radiator and have seen it happen to MANY Chevy radiators. In my defense I went the "better safe than sorry" route. Not trying to create a argument, just listing my first had experience for the OP. when I get home
I will try to post pictures of the two radiators side by side.
I will try to post pictures of the two radiators side by side.
