OEM leaf confusion
Building the 2001 XJ,, we have settled on a 3 - 3.5" total lift.
Looking to maintain a good street ride, so going with the much recommended OME springs.
Going with a longer after market shackle to ensure the leafs can stretch out, most likely a rubicon Express shackle that is ~2" longer than stock shackle, this would add ~1" of lift.
We have already cut out the stock shackle bracket, and are about to fab up some "weld-in" adjustable shackle mounts, I will put a row of holes at the some height that the stock shackle was at, or maybe a 1/2 below.
We will be fabbing a rear bumper, but not a massive, heavy bumper, just some meat between the mounting brackets for shackle mounts, but the rest out of lighter gauge material.
95% percent of the driving will be DD,, but the other 5% will be loaded with 400# of kayaks and camping gear.
So all that to ask, What spring would best suit us? guess I would be looking for a 2.5" lift leaf as the rubicon shackle would add another 1" ?
The only thing I see online as far as OME XJ leafs are 3.5 with a note to remove a leaf to drop it down to 2.5",, my fear is that removing a spring would make the spring to weak when we load the XJ for the weekend?
Any thoughts or experience?
Thanks,
Slack
Looking to maintain a good street ride, so going with the much recommended OME springs.
Going with a longer after market shackle to ensure the leafs can stretch out, most likely a rubicon Express shackle that is ~2" longer than stock shackle, this would add ~1" of lift.
We have already cut out the stock shackle bracket, and are about to fab up some "weld-in" adjustable shackle mounts, I will put a row of holes at the some height that the stock shackle was at, or maybe a 1/2 below.
We will be fabbing a rear bumper, but not a massive, heavy bumper, just some meat between the mounting brackets for shackle mounts, but the rest out of lighter gauge material.
95% percent of the driving will be DD,, but the other 5% will be loaded with 400# of kayaks and camping gear.
So all that to ask, What spring would best suit us? guess I would be looking for a 2.5" lift leaf as the rubicon shackle would add another 1" ?
The only thing I see online as far as OME XJ leafs are 3.5 with a note to remove a leaf to drop it down to 2.5",, my fear is that removing a spring would make the spring to weak when we load the XJ for the weekend?
Any thoughts or experience?
Thanks,
Slack
#2
Senior Member
Join Date: Feb 2018
Location: Kentucky
Posts: 534
Likes: 0
Received 1 Like
on
1 Post
Year: 1999
Model: Cherokee(XJ)
Engine: 4.0L I-6
Leaf Spring
Which spring are you going to use ? The RB model is more a DD, while the RA model is HD. If you can fab the shackle box, I'd go ahead an fab one of those small utility trailers for your yaks. I saw one the other day that was homemade and it looked awesome ! Plus you could leave them on there with a tarp. Otherwise if you go with stiffer springs, it may ride like a goat wagon !
#3
CF Veteran
Join Date: Aug 2018
Location: Idaho
Posts: 1,741
Received 292 Likes
on
248 Posts
Year: 89
Model: Cherokee (XJ)
Engine: Peddles

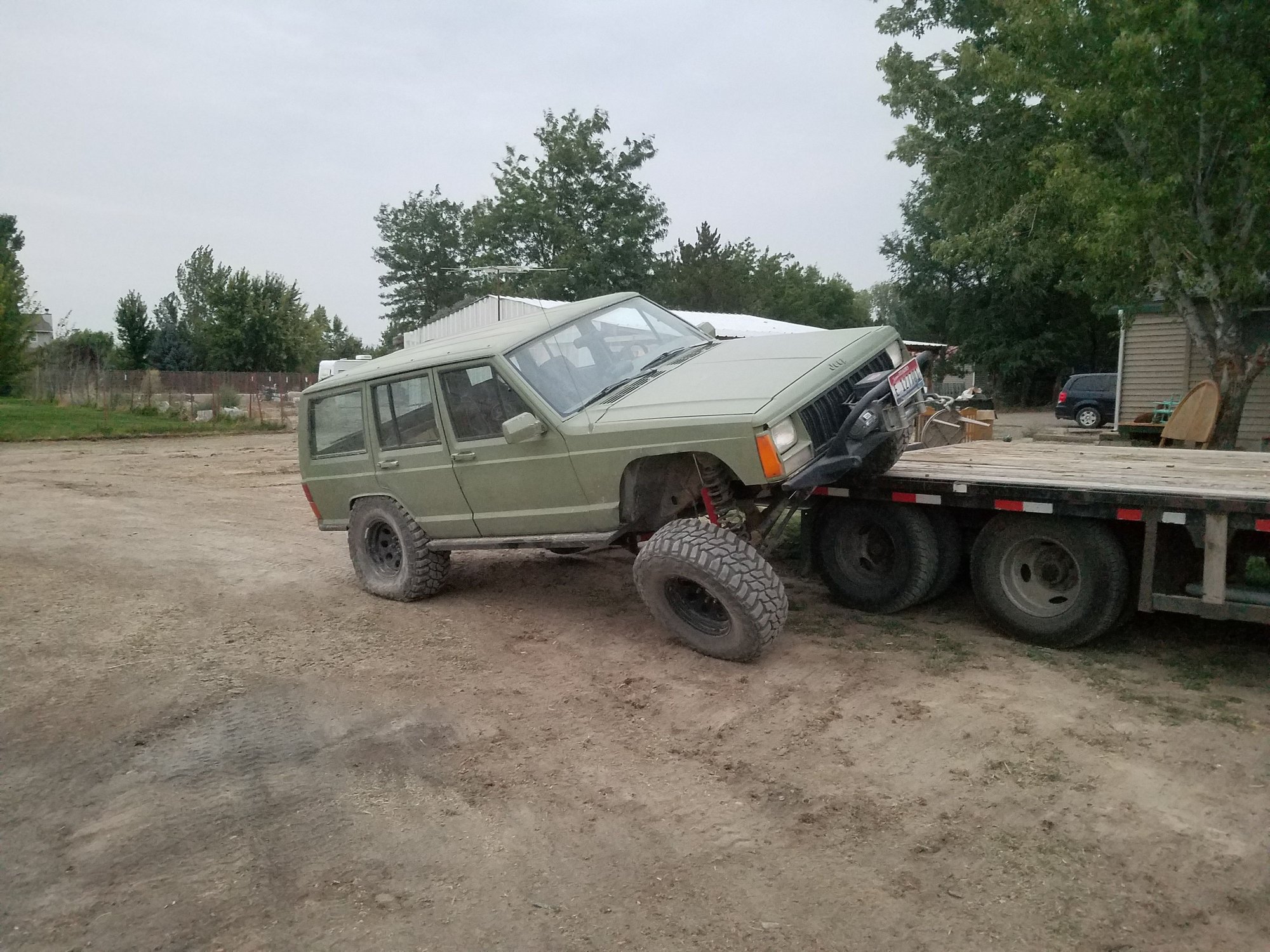

Heres my factory pack factory shackles. Pack is conglomeration of xj springs and chevy truck springs cut to length. I spent a day doing trial and error to get them to support my load of tools. And camping gear. One of these days i plan to cut off the spring pads and fab taller spring pads to do away with the 3\" blocks
Overal all lift is 1.5-2\" with the 3" blocks
#5
Senior Member
The CS033RB is the leaf springs you will want. With the removal of one leaf and the longer shackle should put you around 3.5".
#6
Senior Member
Thread Starter
I did order the CS033RB, I'll pull the one leaf out to give me a reported 2.5 - 3". I don't want to go over 3"
Have not decided on what 3" front coils to use yet.
Once the front and rear is done I'll see if I need to add a 1/4 - 1/2 in the rear via block or shackle.
Slack
Have not decided on what 3" front coils to use yet.
Once the front and rear is done I'll see if I need to add a 1/4 - 1/2 in the rear via block or shackle.
Slack
#7
Senior Member
I did order the CS033RB, I'll pull the one leaf out to give me a reported 2.5 - 3". I don't want to go over 3"
Have not decided on what 3" front coils to use yet.
Once the front and rear is done I'll see if I need to add a 1/4 - 1/2 in the rear via block or shackle.
Slack
Have not decided on what 3" front coils to use yet.
Once the front and rear is done I'll see if I need to add a 1/4 - 1/2 in the rear via block or shackle.
Slack
