How to determine lift??
I am guessing these are the tereflex parts

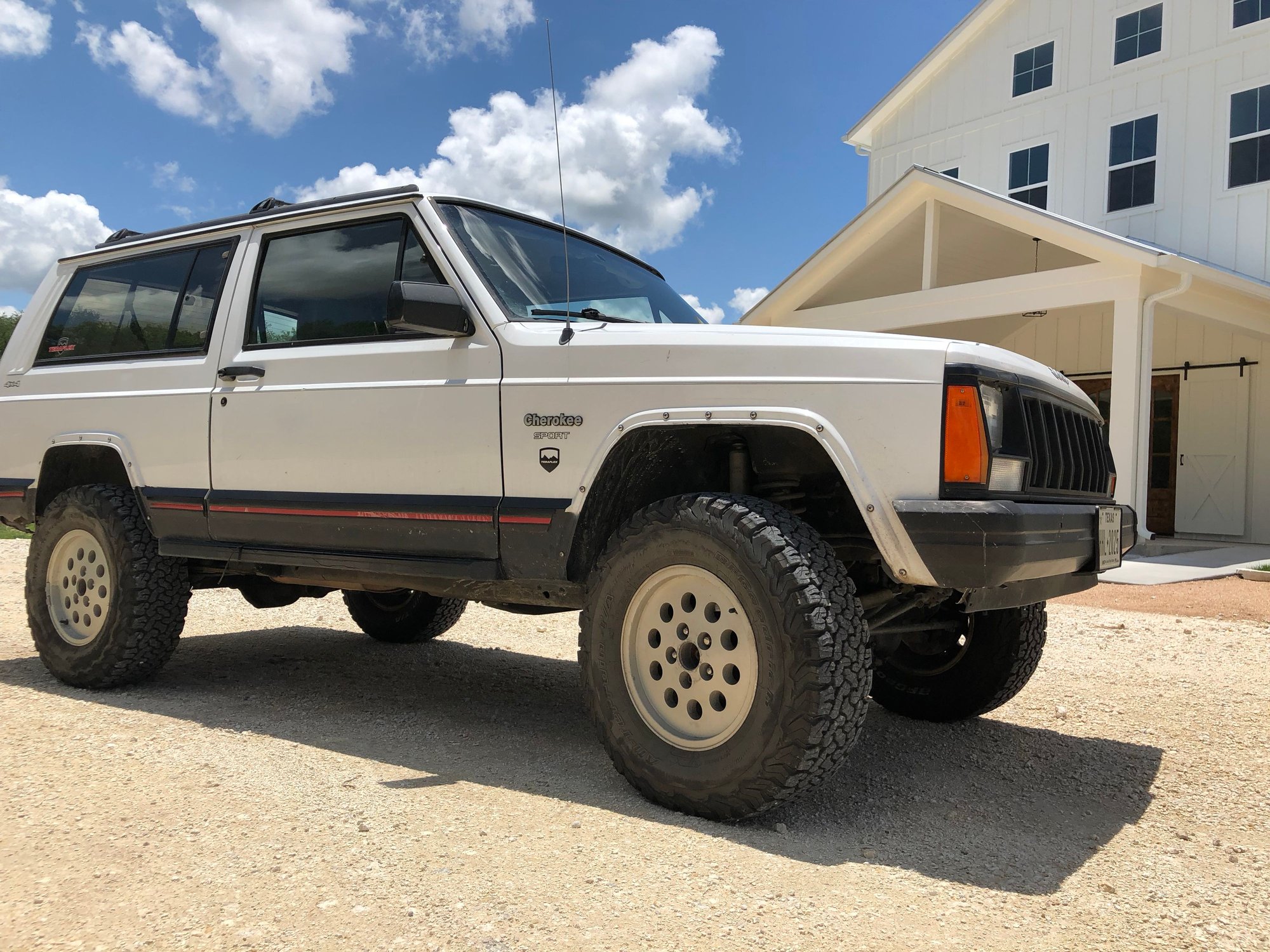

front is lifted, but unsure about rear.
You can tell by looking there are a few inches added but I have no idea.
Recently purchased a 93 xj i6 4.0 5sp. How do i determine lift and suspension specs? It came with Teraflex stickers on the side I can tell there are new shocks and springs on the front end. not sure about the rear. How do I reduce the sag in the rear?
#3
CF Veteran
Join Date: Mar 2016
Posts: 3,214
Received 606 Likes
on
516 Posts
Year: 96
Model: Cherokee (XJ)
Engine: 4.0
How do i determine lift and suspension specs?
measure between hub centre to flare OR top of axles to frame rail, OR (total height of vehicle, make adjust for tyre height)
specs for these are on this forum.
(at least some) Sports models have a 1" lift spring as standard
measure between hub centre to flare OR top of axles to frame rail, OR (total height of vehicle, make adjust for tyre height)
specs for these are on this forum.
(at least some) Sports models have a 1" lift spring as standard
#4
CF Veteran
Top of the axle tube to the Frame rail should be 6.75" in the front and 6" in the rear Only time you can use the hub to flare measurement is if you are running stock flares. tire size has no play in Suspension lift, only ground clearance.
https://www.naxja.org/forum/showthread.php?t=912893
https://www.naxja.org/forum/showthread.php?t=912893
#5
CF Veteran
Join Date: Mar 2016
Posts: 3,214
Received 606 Likes
on
516 Posts
Year: 96
Model: Cherokee (XJ)
Engine: 4.0
Top of the axle tube to the Frame rail should be 6.75" in the front and 6" in the rear Only time you can use the hub to flare measurement is if you are running stock flares. tire size has no play in Suspension lift, only ground clearance.
https://www.naxja.org/forum/showthread.php?t=912893
https://www.naxja.org/forum/showthread.php?t=912893
ie Measure the height of the vehicles vs standard spec. Subtract OEM tyre radius from current radius. Suspension lift can then be calculated.
We agree the axle to frame is best
Around here, legal requirements measure total lift of vehicle, so tyre size is very relevant
Last edited by awg; 08-08-2018 at 04:46 PM.
#6
Member
Join Date: Jul 2010
Location: Freeburg, IL
Posts: 136
Likes: 0
Received 0 Likes
on
0 Posts
Year: 94
Model: Cherokee
Engine: 4.0
Lol waaay to complicated guys. It's a Rough Country 3" lift with AAL in rear. Look at the control arm angle. And tires size does not affect in any way the suspension lift height of the vehicle. It might affect the total lift height. But anyways I'd says he's running a 31" tall tire and a 3" lift. It's figured out. Educated guess.
#7
CF Veteran
Join Date: Feb 2016
Location: Northern New Mexico
Posts: 3,683
Likes: 0
Received 7 Likes
on
6 Posts
Year: 1999
Model: Cherokee
Engine: 4.0
Lol waaay to complicated guys. It's a Rough Country 3" lift with AAL in rear. Look at the control arm angle. And tires size does not affect in any way the suspension lift height of the vehicle. It might affect the total lift height. But anyways I'd says he's running a 31" tall tire and a 3" lift. It's figured out. Educated guess.
Trending Topics
#8
Member
Join Date: Jul 2010
Location: Freeburg, IL
Posts: 136
Likes: 0
Received 0 Likes
on
0 Posts
Year: 94
Model: Cherokee
Engine: 4.0
#9
Member
Join Date: Jul 2010
Location: Freeburg, IL
Posts: 136
Likes: 0
Received 0 Likes
on
0 Posts
Year: 94
Model: Cherokee
Engine: 4.0
O and OP states the rear is sagged. Common with an AAL. Usually a full spring pack will give more than desired lift. Also, judging by the condition of the paint on coils and shocks I'd say the kit is fairly new. RC doesn't use the best quality paint.
#12
Senior Member
I concur on it probably being a Rough Country, but they also do the 3" block in the back on some lift kits.
It also could be a RE set of springs? They use that silver color on the springs?
That's what came on my jeep. Three inch lift springs, and three inch blocks in the back. It also has their LCA's called easyrider's, and a trackbar relocation bracket.
This is the part number of the front springs in the rough country lift. XJ3F-CL01
It also could be a RE set of springs? They use that silver color on the springs?
That's what came on my jeep. Three inch lift springs, and three inch blocks in the back. It also has their LCA's called easyrider's, and a trackbar relocation bracket.
This is the part number of the front springs in the rough country lift. XJ3F-CL01
Last edited by DustyWagoneer; 08-09-2018 at 12:16 AM.
