jburr94xj

Have a 94xj and ordered gears for it. Went to install this morning and I have the wrong gears. How do I know if I have a d30hp or d30lp. And where can I get the right gears?

ohio95xj

If the pinion is toward the top of the diff it is high pinion, if it is toward the bottom, it is low pinion. This question worries me, gears are not something the average Joe should be doing, it isn't as easy as bolting the new gears in, there are a lot of tiny adjustments you have to make, if they are even a little bit off, it can be catastrophic.

jburr94xj

Which axle has the reverse and standard gears. I was having them installed at a local dealership so I'm sure they have the tools and knowledge how to install them. My pinion is closer to the bottom of the case so I'm guessing the d30lp.

ohio95xj

High pinion has reverse cut gears, you need the standard

jburr94xj

Ok thank you makes sense. I guess I ordered hp gears so now I'm gunna order lp standard rotation gears. Thank you

ohio95xj

Hang on, if you have a 96, you should have a high pinion, I believe the low pinion was only used in 2000+. Check the axle again, or even better, take a picture

EagleXJ

He said he had a 94 so yeah, that should be a hp

jburr94xj

Front axles not original it was swaped when I bought I think it says 98 on the case somewhere

jburr94xj

http://www.ringpinion.com/b2c/Produc...rce=DiffWizard
Will theses work or is there a better brand/cheaper price

ohio95xj

Yes, as long as you are sure it's a low pinion.

jburr94xj

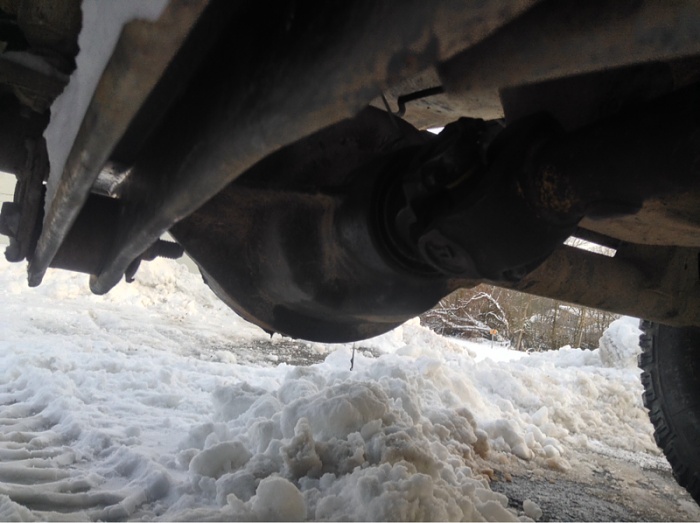

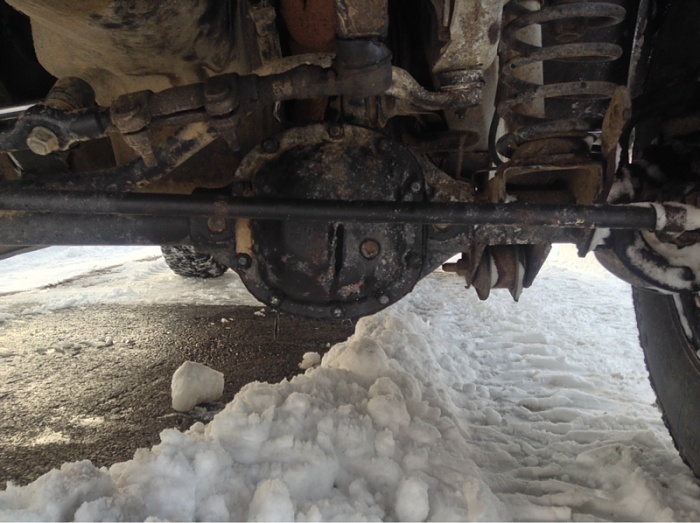

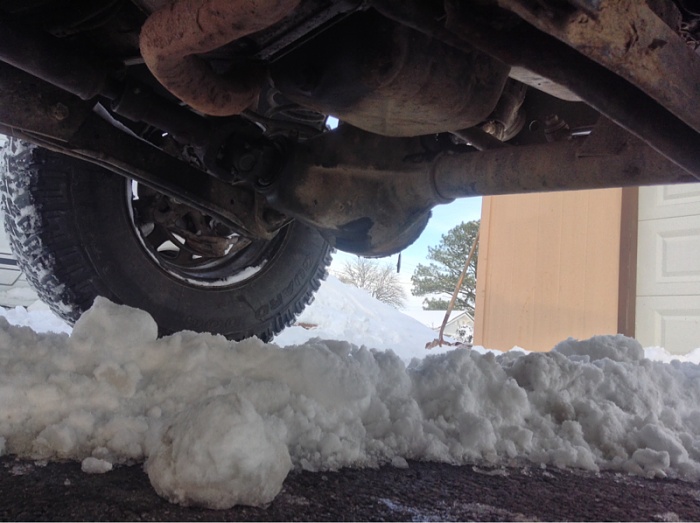

Here's what I got I believe it is a low pinion dana30

ohio95xj

That is indeed a low pinion

XJwonders

Why don't you get a hp30 and install gears in that axle? It's much better than lp30 axles.

jburr94xj

Does anyone know if I have to buy a bigger carrier for 410 on a c8.25 like you do for a Dana

XJwonders

No u don't need a bigger carrier for a 8.25
