Are Dana LP 30's that bad?
#1
Junior Member
Thread Starter
Join Date: Sep 2011
Location: Macomb,MI
Posts: 69
Likes: 0
Received 0 Likes
on
0 Posts
Year: 2001
Model: Cherokee
Are Dana LP 30's that bad?
I'm finishing up my RE long arm install and are considering just beefing up the LP30 on my 01 XJ.
I plan fabbing up LCA skids, reinforce the pass side upper mount, boxing in the front the spring perch, and switching to OTK steering(already have Serious UTK crossover), which means moving swaybar mount and changing to a over axle track bar.
I don't really want to spend the extra money on a HP30, another set of 4.56 gears, a carrier to hold them, and an install kit. I just put in new ball joints too.
I'm not a crawler, more high speed sand and trails here in Michigan. I drive more like jeepspeed style.
I plan fabbing up LCA skids, reinforce the pass side upper mount, boxing in the front the spring perch, and switching to OTK steering(already have Serious UTK crossover), which means moving swaybar mount and changing to a over axle track bar.
I don't really want to spend the extra money on a HP30, another set of 4.56 gears, a carrier to hold them, and an install kit. I just put in new ball joints too.
I'm not a crawler, more high speed sand and trails here in Michigan. I drive more like jeepspeed style.
#2
Senior Member
Join Date: Feb 2014
Location: Southgate, Michigan
Posts: 793
Likes: 0
Received 2 Likes
on
2 Posts
Year: 1997
Model: Cherokee
Engine: 4.6 I6
The biggest downsides of the LP axles is that the driveshaft is at a steeper angle which depending on your lift, can cause additional vibrations. Also, since your driveshaft is closer to the ground, it is a little bit easier for it to get caught on various things. If you can get over these factors, the axle should be just as strong as a HP D30 and you should enjoy those Michigan trails. Maybe I'll see your jeep some day here in Michigan.
#4
Senior Member
Join Date: Nov 2013
Location: Vernon NJ
Posts: 616
Likes: 0
Received 3 Likes
on
3 Posts
Year: 1998
Model: Cherokee
Engine: 4.0
I had a low pinion in my TJ lifted 6 inches and long arms and never had a problem. Just make sure that you dial in your pinion angle with the long arms and you should not get any vibrations.
#5
Herp Derp Jerp
Join Date: Nov 2011
Location: Parham, ON
Posts: 18,251
Likes: 0
Received 12 Likes
on
11 Posts
Year: 1999
Model: Cherokee
Engine: 4.0L OBD-II
Aside from the points already mentioned, one disadvantage of the LP axle is that the driveshaft is more vulnerable. A guy I bought some Jeep parts off of showed me the DS on his wife's TJ... It grabbed a rock and had a fantastic spiral score all along it. No more problems after going HP.
If you already threw money at it, can deal with the vibes, and aren't going to be playing rocks, I'd just run it.
If you already threw money at it, can deal with the vibes, and aren't going to be playing rocks, I'd just run it.
#6
Senior Member
Join Date: Feb 2014
Location: Southgate, Michigan
Posts: 793
Likes: 0
Received 2 Likes
on
2 Posts
Year: 1997
Model: Cherokee
Engine: 4.6 I6
"The biggest downsides of the LP axles is that the driveshaft is at a steeper angle which depending on your lift, can cause additional vibrations. Also, since your driveshaft is closer to the ground, it is a little bit easier for it to get caught on various things. If you can get over these factors, the axle should be just as strong as a HP D30 and you should enjoy those Michigan trails. Maybe I'll see your jeep some day here in Michigan."
#7
Senior Member
Join Date: Jul 2015
Location: Southern Maryland
Posts: 563
Likes: 0
Received 2 Likes
on
1 Post
Year: 1993
Engine: 4.0
Since you like to go fast I'm assuming you have a small lift so pinion angle shouldn't be too much of an issue, the real downside is that it is a standard rotation diff meaning the pinion gears will have even less contact on an already small ring gear, but since it's already geared I say keep it.
Trending Topics
#8
Newbie
Join Date: Oct 2015
Location: Michigan
Posts: 14
Likes: 0
Received 0 Likes
on
0 Posts
Year: 2001
Model: Cherokee
Engine: 4.0
The biggest downsides of the LP axles is that the driveshaft is at a steeper angle which depending on your lift, can cause additional vibrations. Also, since your driveshaft is closer to the ground, it is a little bit easier for it to get caught on various things. If you can get over these factors, the axle should be just as strong as a HP D30 and you should enjoy those Michigan trails. Maybe I'll see your jeep some day here in Michigan.
#9
Junior Member
Thread Starter
Join Date: Sep 2011
Location: Macomb,MI
Posts: 69
Likes: 0
Received 0 Likes
on
0 Posts
Year: 2001
Model: Cherokee

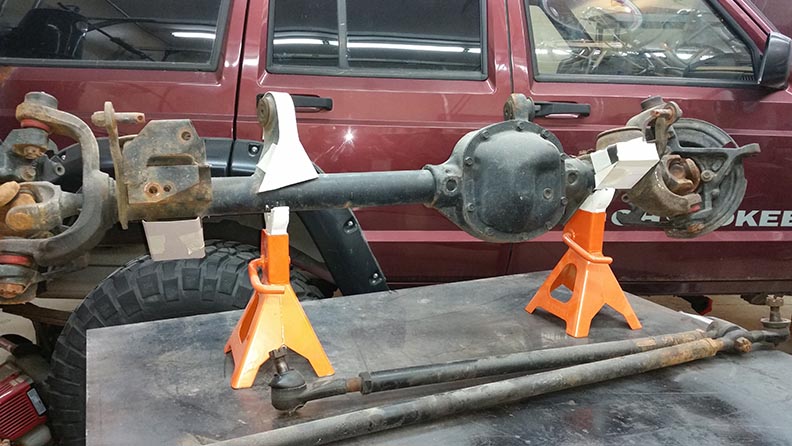

Sounds like I'll move ahead with modding this one. Keeping the lift around 5" and not worried about hanging the drive shaft up on anything. I'll put some pics up after welding it up.
#10
Herp Derp Jerp
Join Date: Nov 2011
Location: Parham, ON
Posts: 18,251
Likes: 0
Received 12 Likes
on
11 Posts
Year: 1999
Model: Cherokee
Engine: 4.0L OBD-II
"The biggest downsides of the LP axles is that the driveshaft is at a steeper angle which depending on your lift, can cause additional vibrations. Also, since your driveshaft is closer to the ground, it is a little bit easier for it to get caught on various things. If you can get over these factors, the axle should be just as strong as a HP D30 and you should enjoy those Michigan trails. Maybe I'll see your jeep some day here in Michigan."
It's a D30. You're going to break the U joints long before the gears explode.
#11
Senior Member
Join Date: Feb 2014
Location: Southgate, Michigan
Posts: 793
Likes: 0
Received 2 Likes
on
2 Posts
Year: 1997
Model: Cherokee
Engine: 4.6 I6
Hmm, whoops. Sorry, my day job is more filling in time sheets than being literate
I was just teasing, when ever I see you post, its always well thought out and correct.
This is subjective. I know many more people that have gotten their drive shafts caught on obstacles than I know with broken pinion ring gears...
It's a D30. You're going to break the U joints long before the gears explode.
I was just teasing, when ever I see you post, its always well thought out and correct.
This is subjective. I know many more people that have gotten their drive shafts caught on obstacles than I know with broken pinion ring gears...
It's a D30. You're going to break the U joints long before the gears explode.
#12
CF Veteran
Join Date: Jul 2013
Location: Monett, MO.
Posts: 7,554
Likes: 0
Received 14 Likes
on
14 Posts
Year: 1999
Model: Cherokee
Engine: 4.0
If he were at 3" of lift I would just run it also, but at 5" a HPD30 would high on my list of upgrades. I would not have invested any money in the LP to begin with knowing of the issues with them and a lifted off road XJ.
