coil rail eliminator issues

Thread Tools

Search this Thread

Old Sep 28, 2019 | 07:17 PM
  #1
bluejeep2001's Avatar
Thread Starter
CF Veteran
5 Year Member
Liked

Joined: Dec 2016
Posts: 1,732
Likes: 405
From: Long Island, New York
Year: 2001
Model: Cherokee (XJ)
Engine: 98 stroked 4.7
Default coil rail eliminator issues

pre-planning a coil rail eliminator for my 98 into an 01 stroker 4.0 cherokee and have found that the airtex 5c1432 plug does not fit the connector on my 01 coil rail...there is an alignment rail on the left side of the airtex that has no corresponding cutout in my 01 plug...I thought this was a direct interchange...did I miss something or do I need to just cut the alignment rail out...no one seems to have mentioned that thanks
Reply
Old Sep 29, 2019 | 07:30 AM
  #2
Ralph77's Avatar
CF Veteran
10 Year Member

Joined: Oct 2015
Posts: 7,517
Likes: 1,626
Year: 2000
Model: Cherokee (XJ)
Default

I have poked around about this a little. I probably have read the same threads you have.
Under the impression it is a plug and play but never really delved into it.
At the time I was just looking for some basic info about it.
So I am guessing you missed typed.
Cause you said "airtex 5c1432 plug does not fit the connector on my 01 coil rail".
Well I am guessing you meant the connector on the harness?
Both look a little offset, not dead center, on both the coil and the connector on the harness.
But can't tell from pictures if they are both the same.
So now for the stupid question.
Is the red tab pulled out?

In my '00 if I decide to get rid of the coil rail I am probably going to go this route.

https://www.ksuspensionfab.com/store...Coil_Mod_.html
Reply
Old Sep 30, 2019 | 08:56 AM
  #3
bluejeep2001's Avatar
Thread Starter
CF Veteran
5 Year Member
Liked

Joined: Dec 2016
Posts: 1,732
Likes: 405
From: Long Island, New York
Year: 2001
Model: Cherokee (XJ)
Engine: 98 stroked 4.7
Default

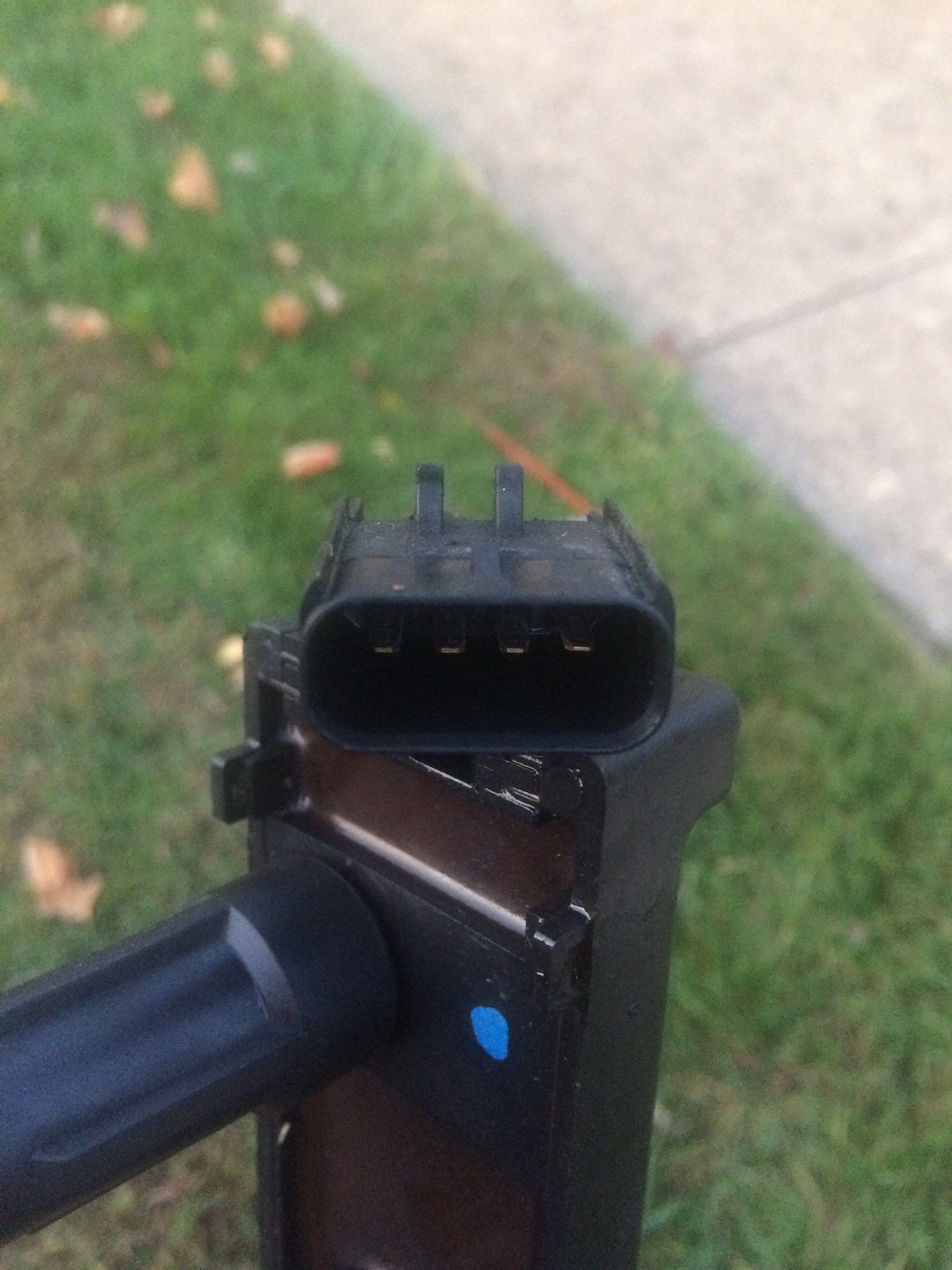

as you can see the airtex has a rail that has no cutout for in the connector...its easy to remove...just wanted to make sure im not doing something wrong before I start grinding...thought it was plug and play...thanks
Reply
Old Sep 30, 2019 | 09:02 AM
  #4
Ralph77's Avatar
CF Veteran
10 Year Member

Joined: Oct 2015
Posts: 7,517
Likes: 1,626
Year: 2000
Model: Cherokee (XJ)
Default

Originally Posted by bluejeep2001
as you can see the airtex has a rail that has no cutout for in the connector...its easy to remove...just wanted to make sure im not doing something wrong before I start grinding...thought it was plug and play...thanks
I probably should have looked closer at the pictures that I did.
Before you go trimming that are you sure that the part was not packaged wrong.
I work in an auto parts store and it would not be the first time.
Also I would do a deep dive because even though I just researched it for a second or two way back
when am still, like you, under the impression it was plug and play.

If something is not right and you trim that you might not be able to return it.
Reply
