Alternator Upgrade/Relocation

Old 05-12-2019, 07:11 AM
  #1
Senior Member
Thread Starter

ElMartillo's Avatar

Join Date: Dec 2015
Location: Nationwide, USA
Posts: 711
Year: 89
Model: Cherokee
Engine: Renix 4.0
Default Alternator Upgrade/Relocation

First use of my winch the other day, not as practice but to actually self recover from a bad mud hole. Winch performed well, itís a Warn VR8-S, but it really overloaded my electrical system after a period of time. Pulling really slow , headlights dimming, etc.

Now itís time to upgrade with a higher output alternator and better battery, maybe even a dual battery setup. Iíd also like to delete the A/C and mount the alternator there.

I recall seeing a writeup on here with all the details, including new serpentine belt length, but I canít find it now. Anyone have that link?

Thank you!

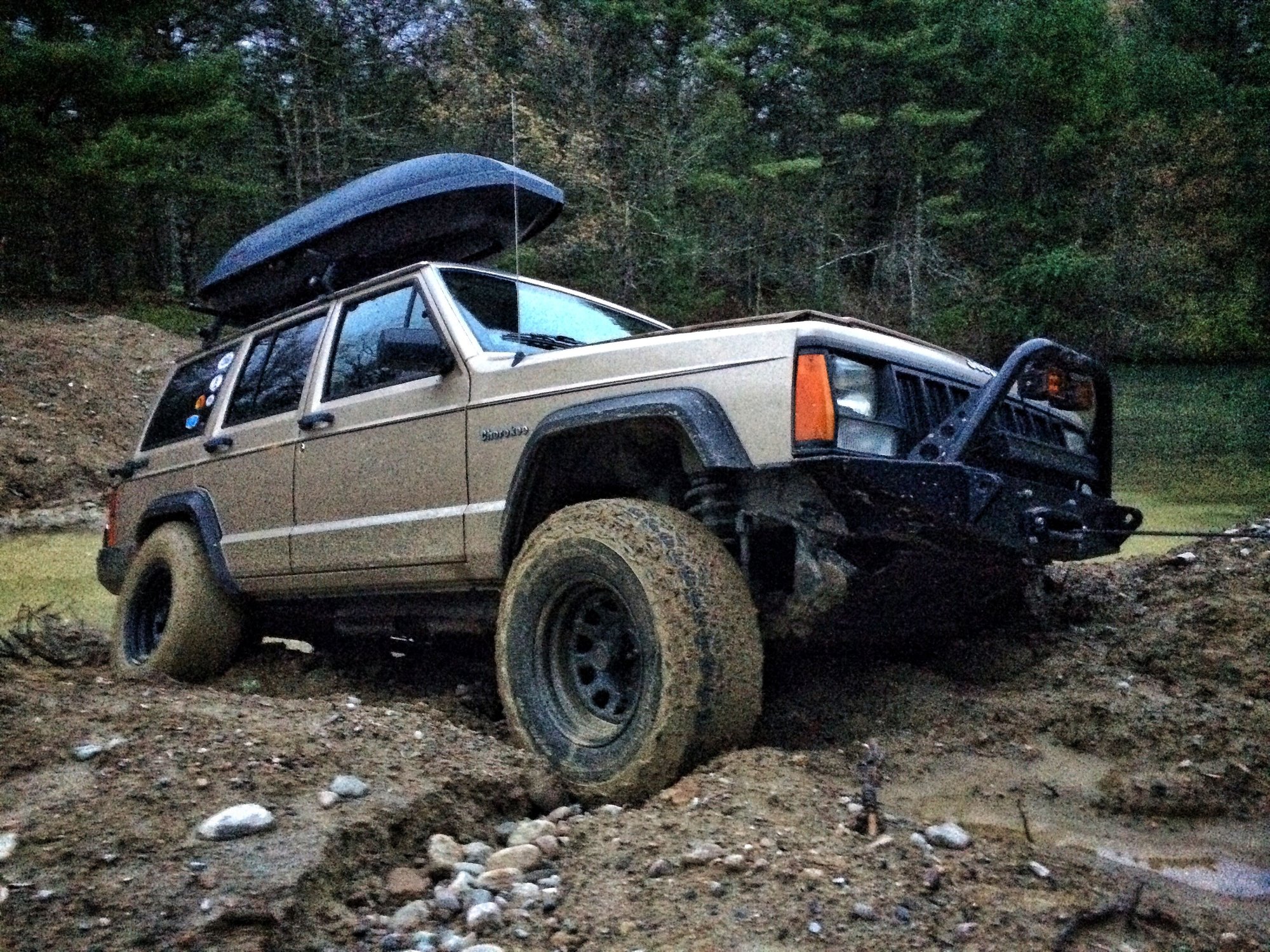

Couldnít pull it out backwards.

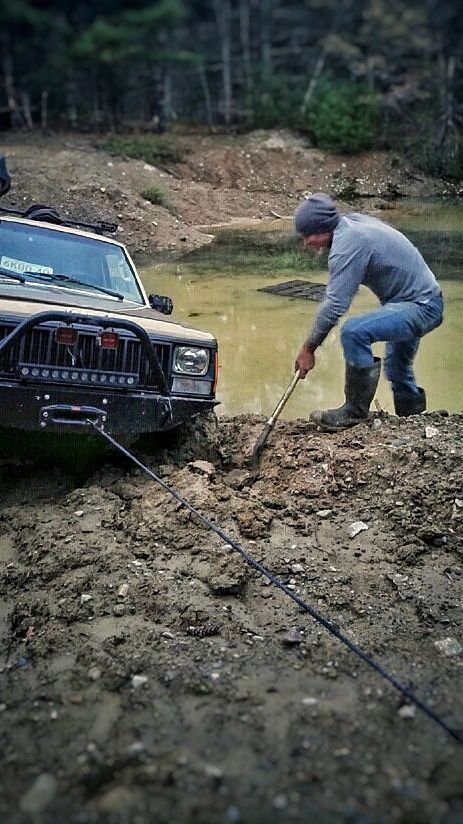

Yep, lots of digging.


Finally pulled myself forward and to the right, but it really taxed my stock electrical system after a while.
ElMartillo is offline
Old 05-12-2019, 08:24 AM
  #2
::CF Moderator::

cruiser54's Avatar

Join Date: Aug 2011
Location: Prescott, Az
Posts: 37,771
Year: 1990
Model: Comanche
Engine: 4.0
Default

Dual batteries will help more than the alternator. So will upgraded cables. Were you using a ****** block?
cruiser54 is offline
Old 05-12-2019, 10:21 AM
  #3
Member

Join Date: Oct 2015
Posts: 221
Model: Cherokee
Default

A 160 amp Durango alternator can be mounted in the stock location if you grind the bracket. And as stated upgrade your cables. A member here sells sets.
BlackXJay is offline
Old 05-12-2019, 11:09 AM
  #4
CF Veteran

Join Date: Oct 2015
Posts: 2,965
Default

Originally Posted by BlackXJay View Post
A 160 amp Durango alternator can be mounted in the stock location if you grind the bracket. And as stated upgrade your cables. A member here sells sets.
Been doing some research on this. Appears you have to take the block down a little too.
Ralph77 is offline
Old 05-12-2019, 11:23 AM
  #5
Member

Join Date: Oct 2015
Posts: 221
Model: Cherokee
Default

I did not have to grind the block. But I have heard of people that did. I also bought a extra bracket off ebay. Only 25$

https://rover.ebay.com/rover/0/0/0?m...2F303134323372

I purchased the alternator and ground the bracket before installing. Just incase something went wrong with the original bracket. If you have no down time this is the way to go.
BlackXJay is offline
Old 05-12-2019, 11:25 AM
  #6
Member

Join Date: Oct 2015
Posts: 221
Model: Cherokee
Default

Oh and swap pulleys from yours to the Durango one if you go this route.
BlackXJay is offline
Old 05-12-2019, 03:49 PM
  #7
Senior Member
Thread Starter

ElMartillo's Avatar

Join Date: Dec 2015
Location: Nationwide, USA
Posts: 711
Year: 89
Model: Cherokee
Engine: Renix 4.0
Default

Originally Posted by cruiser54 View Post
Dual batteries will help more than the alternator. So will upgraded cables. Were you using a ****** block?
Cruiser, I was using a ****** block, and it exploded. Not sure if somehow it was my fault, as I couldnít see it at the time and my helper knows nothing about much at all and Iím sure wasnít paying attention. ****** block was attached to a span set around a tree, I ran my winch rope through the ****** block and anchored it back to my front bumper. As far as I know that should have given me a 2:1, but I was dug into the mud deep at that point. Iím just glad no one got hurt and there wasnít additional damage.


The parts I found.



C-clip still intact on the other side.



This is the side that failed. C-clip is missing, outer spindle flange is broken off.
ElMartillo is offline
Old 05-12-2019, 04:11 PM
  #8
::CF Moderator::

cruiser54's Avatar

Join Date: Aug 2011
Location: Prescott, Az
Posts: 37,771
Year: 1990
Model: Comanche
Engine: 4.0
Default

Nothing you did. What brand ****** block?
cruiser54 is offline
Old 05-12-2019, 05:10 PM
  #9
Senior Member
Thread Starter

ElMartillo's Avatar

Join Date: Dec 2015
Location: Nationwide, USA
Posts: 711
Year: 89
Model: Cherokee
Engine: Renix 4.0
Default

Originally Posted by cruiser54 View Post
Nothing you did. What brand ****** block?
Purchased online from Vault Cargo Management. No capacities stamped on it.
ElMartillo is offline
Old 05-12-2019, 05:15 PM
  #10
::CF Moderator::

cruiser54's Avatar

Join Date: Aug 2011
Location: Prescott, Az
Posts: 37,771
Year: 1990
Model: Comanche
Engine: 4.0
Default

Originally Posted by ElMartillo View Post
Purchased online from Vault Cargo Management. No capacities stamped on it.

What is the winch rated at?
cruiser54 is offline
Old 05-12-2019, 07:21 PM
  #11
Senior Member
Thread Starter

ElMartillo's Avatar

Join Date: Dec 2015
Location: Nationwide, USA
Posts: 711
Year: 89
Model: Cherokee
Engine: Renix 4.0
Default

Originally Posted by cruiser54 View Post
What is the winch rated at?
8,000 lbs.
ElMartillo is offline
Old 05-12-2019, 10:42 PM
  #12
::CF Moderator::

cruiser54's Avatar

Join Date: Aug 2011
Location: Prescott, Az
Posts: 37,771
Year: 1990
Model: Comanche
Engine: 4.0
Default

Originally Posted by ElMartillo View Post
8,000 lbs.
How do you have it wired? What gauge wire and from where?
cruiser54 is offline
Old 05-16-2019, 07:45 PM
  #13
Senior Member
Thread Starter

ElMartillo's Avatar

Join Date: Dec 2015
Location: Nationwide, USA
Posts: 711
Year: 89
Model: Cherokee
Engine: Renix 4.0
Default

Originally Posted by cruiser54 View Post
How do you have it wired? What gauge wire and from where?
Wired as per factory instructions, though because of the design of my bumper I had to extend the cables to mount the control box in the engine compartment. I used 4ga cable, with the lugs soldered and swaged correctly.

I still want to relocate the alt to the A/C compressor position though, and from what I understand it doesnít hurt to put in a higher output alternator.
ElMartillo is offline
Old 05-17-2019, 10:11 AM
  #14
CF Veteran

WyoCherokee's Avatar

Join Date: Jan 2015
Location: Gillette Wyoming
Posts: 1,296
Year: 1990
Model: Comanche (MJ)
Engine: 4.0
Default

WyoCherokee is offline
Old 05-17-2019, 12:10 PM
  #15
Senior Member
Thread Starter

ElMartillo's Avatar

Join Date: Dec 2015
Location: Nationwide, USA
Posts: 711
Year: 89
Model: Cherokee
Engine: Renix 4.0
Default

Originally Posted by WyoCherokee View Post
You are installing in a Ď90 MJ? Wondering if it will work in my Ď89 XJ? Also, stock alt or higher output?
ElMartillo is offline
