all muffler and exhaust questions go here!!!!!!

Thread Tools

Search this Thread

Old Jun 14, 2012 | 02:54 PM
  #1831
bass_by_grace's Avatar
Junior Member

Joined: Jun 2012
Posts: 85
Likes: 0
Year: 1994
Model: Cherokee
Engine: 4.0 High output
Default

Originally Posted by jeepheep1
Just watched some videos on both the 10 and 40, think I'm going with the 40
Good choice! I have the super 40 and it sounds like a beast! The super 44 has a little higher pitch and just doesn't sound as mean as the super 40! Check out my YouTube video of my Cherokee.
this vid was before most my mods like lift tires and bumpers so excuse the stock look! Lol
Reply
Old Jun 14, 2012 | 06:08 PM
  #1832
91XJMudMan's Avatar
Senior Member

Joined: Aug 2009
Posts: 558
Likes: 0
From: Mildenhall, United Kingdom
Year: 1996
Model: Cherokee
Engine: 4.0L H.O.
Default

Im getting a new cat soon and want a high flow, but what should I get? and I'm not going to have a muffler, but is 3'' piping too big?
Reply
Old Jun 14, 2012 | 06:19 PM
  #1833
austinjoe13's Avatar
CF Veteran

Joined: Nov 2011
Posts: 2,433
Likes: 6
From: Northern MN
Year: 1990
Model: Cherokee (XJ)
Engine: Renix 4.0
Default

Originally Posted by 91XJMudMan
Im getting a new cat soon and want a high flow, but what should I get? and I'm not going to have a muffler, but is 3'' piping too big?
2.5" piping is what you want and check out these
Reply
Old Jun 17, 2012 | 09:14 PM
  #1834
99superjeep01's Avatar
CF Veteran

Joined: Feb 2012
Posts: 1,222
Likes: 1
From: Buffalo, NY
Year: 2001
Model: Cherokee
Engine: 4.0
Default

Originally Posted by 91XJMudMan
Im getting a new cat soon and want a high flow, but what should I get? and I'm not going to have a muffler, but is 3'' piping too big?
Good luck fitting 3" if you've got a trailer hitch. I've got 2.5" that barely squeezes through.
Reply
Old Jun 17, 2012 | 10:05 PM
  #1835
austinjoe13's Avatar
CF Veteran

Joined: Nov 2011
Posts: 2,433
Likes: 6
From: Northern MN
Year: 1990
Model: Cherokee (XJ)
Engine: Renix 4.0
Default

Originally Posted by 99superjeep01
Good luck fitting 3" if you've got a trailer hitch. I've got 2.5" that barely squeezes through.
I've got a 4" tip. No clearance issues whatsoever. Though 3" is pretty much the point of diminishing return. I'd say stick with 2.5".
Reply
Old Jun 18, 2012 | 08:47 AM
  #1836
Slim357's Avatar
CF Veteran

Joined: May 2012
Posts: 3,004
Likes: 1
From: Wilmington,NC
Year: 1989
Model: Cherokee
Engine: 4.0
Default

Originally Posted by austinjoe13
I've got a 4" tip. No clearance issues whatsoever. Though 3" is pretty much the point of diminishing return. I'd say stick with 2.5".
I do agree I have a class 3hitch and I bearly fit the 2.5 inch pipe between the leaf spring and the hitch
Reply
Old Jun 18, 2012 | 09:20 AM
  #1837
zjjerk's Avatar
Member

Joined: Mar 2012
Posts: 205
Likes: 0
From: Salem,Virginia
Year: 1992
Model: Cherokee
Engine: 4.0
Default

Muffler delete(straightpipe),2.5 piping,2.5 spincat from performance-curve.com,3.5 silver vein angle cut tip.I get compliments all the time,it really isn't that loud and doesn't drove on the interstate.



As far as hitch/shackle issues go,i think i had it pretty bad.I had about an inch between my shackle and hitch and couldn't handle the terrible noise the tailpipe was making.


We went this route.We rerouted it to exit just under the ps quarter panel,like alot of the newer rams.It worked out great and this may be a solution/option for others.

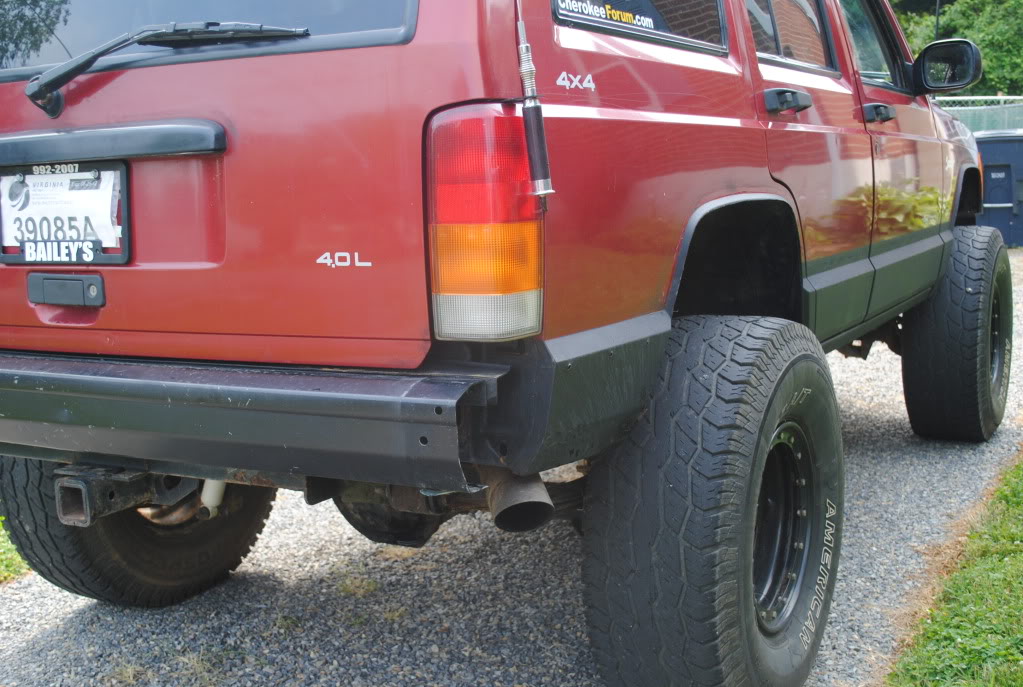

Name:  DSC_0006-5.jpg
Views: 53
Size:  140.3 KB

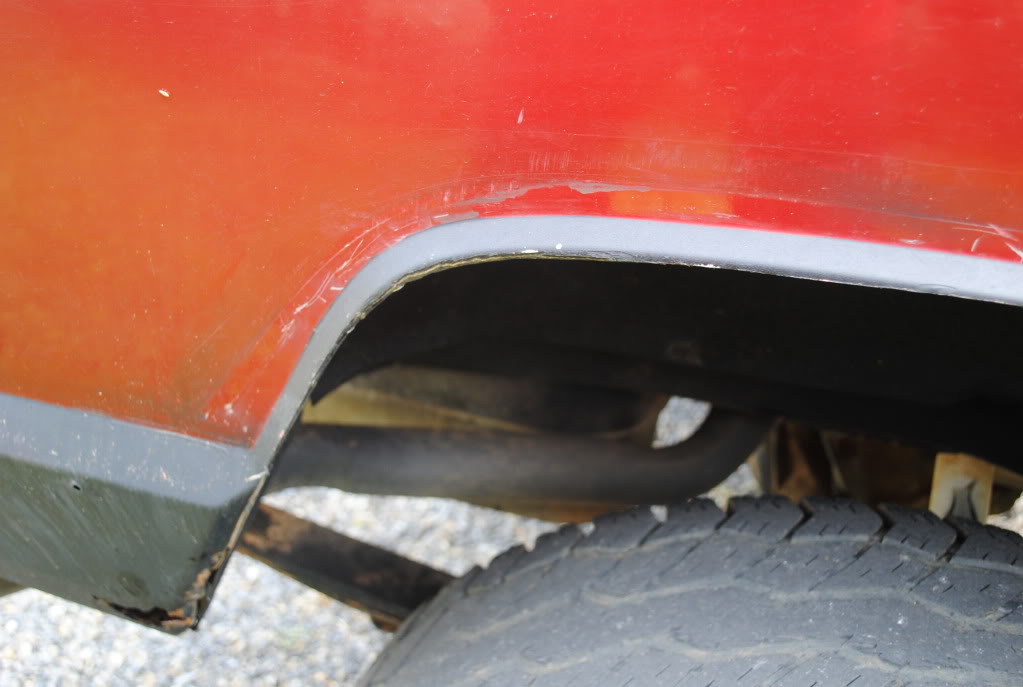

Name:  DSC_0007-6.jpg
Views: 56
Size:  63.3 KB

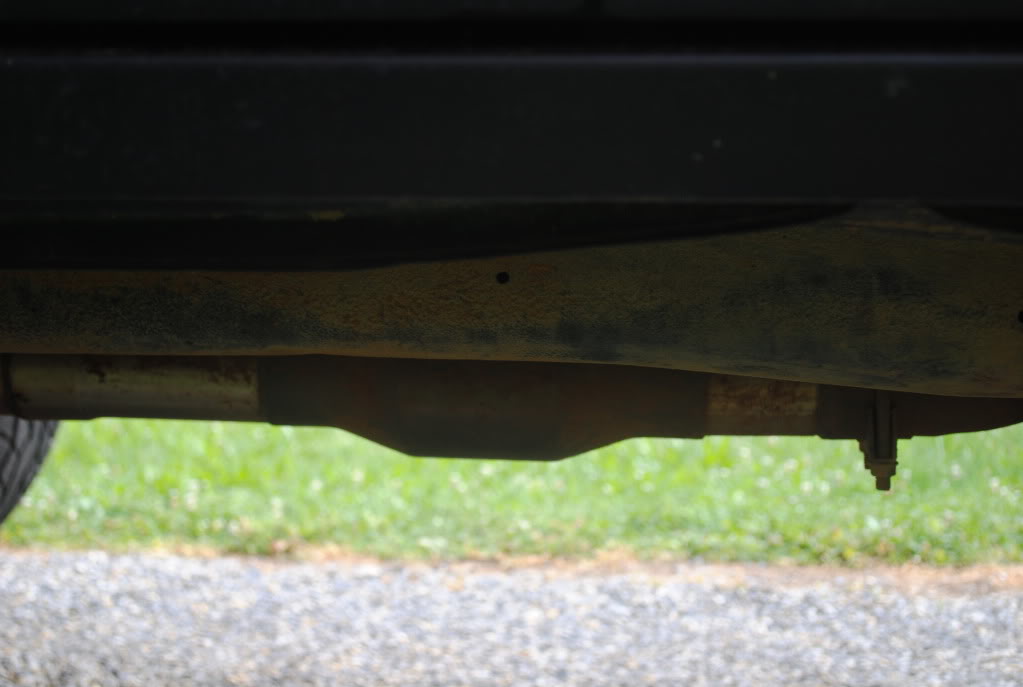

Name:  DSC_0008-5.jpg
Views: 52
Size:  51.1 KB
Reply
Old Jun 18, 2012 | 12:31 PM
  #1838
99superjeep01's Avatar
CF Veteran

Joined: Feb 2012
Posts: 1,222
Likes: 1
From: Buffalo, NY
Year: 2001
Model: Cherokee
Engine: 4.0
Default

Originally Posted by Slim357

I do agree I have a class 3hitch and I bearly fit the 2.5 inch pipe between the leaf spring and the hitch
That's what I meant. Should've been a bit more specific.
Reply
Old Jun 18, 2012 | 12:57 PM
  #1839
mudfrog's Avatar
Former Sponsor

Joined: Feb 2010
Posts: 474
Likes: 0
From: Roanoke VA
Year: 1995
Model: Grand Cherokee
Engine: 4.0L
Default

Originally Posted by zjjerk
Muffler delete(straightpipe),2.5 piping,2.5 spincat from performance-curve.com,3.5 silver vein angle cut tip.I get compliments all the time,it really isn't that loud and doesn't drove on the interstate.



As far as hitch/shackle issues go,i think i had it pretty bad.I had about an inch between my shackle and hitch and couldn't handle the terrible noise the tailpipe was making.


We went this route.We rerouted it to exit just under the ps quarter panel,like alot of the newer rams.It worked out great and this may be a solution/option for others.

Looks good! Who did the install?
Reply
Old Jun 18, 2012 | 01:06 PM
  #1840
zjjerk's Avatar
Member

Joined: Mar 2012
Posts: 205
Likes: 0
From: Salem,Virginia
Year: 1992
Model: Cherokee
Engine: 4.0
Default

Originally Posted by mudfrog
Looks good! Who did the install?

Roberts muffler in salem.He's the only person i go too.
Reply
Old Jun 18, 2012 | 01:35 PM
  #1841
jeepsurfer1's Avatar
CF Veteran

Joined: May 2011
Posts: 2,516
Likes: 4
From: va
Year: 1996
Model: Cherokee
Engine: i-6 4.0
Default

Originally Posted by zjjerk

Roberts muffler in salem.He's the only person i go too.
I like minute muffler, cheep and close
Reply
Old Jun 18, 2012 | 07:38 PM
  #1842
Big David's Avatar
CF Veteran
10 Year Member
Liked

Joined: Jun 2011
Posts: 2,720
Likes: 44
From: Gainesville GA
Year: 1999
Model: Cherokee (XJ)
Engine: 4.0
Default

I don't feel like reading thru 101 pages so forgive me if this has been covered.

I picked up a Flowmaster @ the yard.It has alot of numbers stamped on it. How do you decyfer the numbers to see which series or stock # it is?
It was on a 4.0 ZJ but that doesn't mean thats it made specifically for a 4.0.
Thanks.
Reply
Old Jun 18, 2012 | 07:45 PM
  #1843
austinjoe13's Avatar
CF Veteran

Joined: Nov 2011
Posts: 2,433
Likes: 6
From: Northern MN
Year: 1990
Model: Cherokee (XJ)
Engine: Renix 4.0
Default

Originally Posted by Slim357
I do agree I have a class 3hitch and I bearly fit the 2.5 inch pipe between the leaf spring and the hitch
I guess my tail pipe isn't run between the hitch and spring. Just underneath.

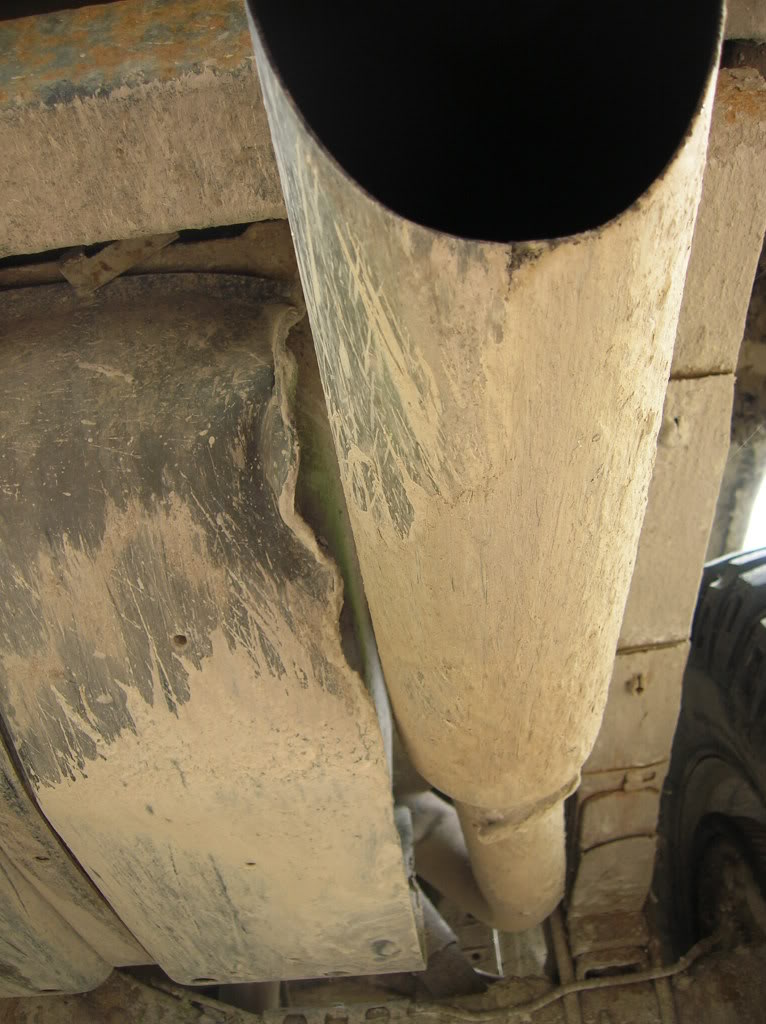

Name:  DSCN3324.jpg
Views: 52
Size:  114.7 KB

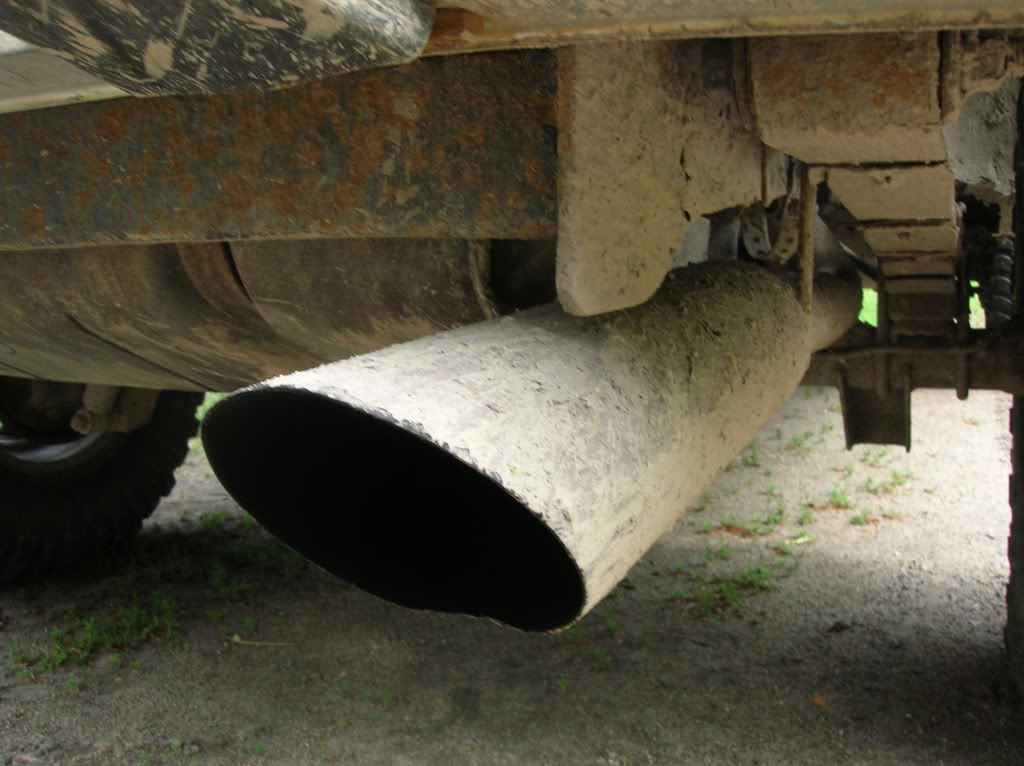

Name:  DSCN3323.jpg
Views: 56
Size:  101.4 KB
Reply
Old Jun 18, 2012 | 08:41 PM
  #1844
D PHILLY's Avatar
Junior Member

Joined: Sep 2011
Posts: 55
Likes: 0
From: Kettering, OH
Model: Cherokee
Engine: l6
Default

Hey guys I'm17 new at exhaust and I need some help. I know the answer is probably in here some where but I figure why not ask haha. What would someone recommend for getting a better sound that doesn't drone into the cab but sounds good on a stock DD Cherokee, I also don't want to lose any MPG. I just want something a little more aggressive but nothing extreme for sure haha. Thanks in advance guys I really appreciate it!
Reply
Old Jun 18, 2012 | 08:42 PM
  #1845
D PHILLY's Avatar
Junior Member

Joined: Sep 2011
Posts: 55
Likes: 0
From: Kettering, OH
Model: Cherokee
Engine: l6
Default

Also I was looking for a new muffler only, not a whole new system... Thanks!
