All Lift & Tire questions go here!!!

Thread Tools

Search this Thread

Old Sep 10, 2012 | 02:13 PM
  #9631
dukie564's Avatar
☠ CF Sheriff ☠
Premium Member

Joined: Nov 2009
Posts: 15,197
Likes: 18
From: Aberdeen, MD
Year: 1995
Model: Cherokee
Engine: 4.0L HO I-6, 703 Injectors, Brown Dog Super Engine Mounts
Default

Originally Posted by 92XJGuy
Hopefully this place is appropriate.. How high does an XJ sit with a 6.5'' lift on 33s? Garage door is 6'9, wondering if I'll need to take my rack off or not.
it'll be close. My racks are about at the top of my head on mine, and i'm 6' 3" tall. ~5" on 33s
Reply
Old Sep 10, 2012 | 02:23 PM
  #9632
puckhound95's Avatar
Member

Joined: Aug 2012
Posts: 224
Likes: 0
From: South Jersey
Model: Cherokee
Engine: 4.0L Straight 6
Default

Originally Posted by esp002
ok guys. Im looking at getting either some cheap 31 M/T's or BFG A'T's hopefully soon after I do some front end work. What would be a good size wheel backspacing on an xj 3" lift w/ 31's? I want the tires out further than stock but not too far.
What width tire do you have? I'm assuming it's a 10.5in so if you want it to stick out a little more than stock go 4" or 3.75" backspacing
Reply
Old Sep 10, 2012 | 03:06 PM
  #9633
92XJGuy's Avatar
CF Veteran

Joined: Jun 2011
Posts: 2,448
Likes: 0
From: Colorado
Year: 1992
Model: Cherokee
Engine: 4.0
Default

Originally Posted by dukie564
it'll be close. My racks are about at the top of my head on mine, and i'm 6' 3" tall. ~5" on 33s

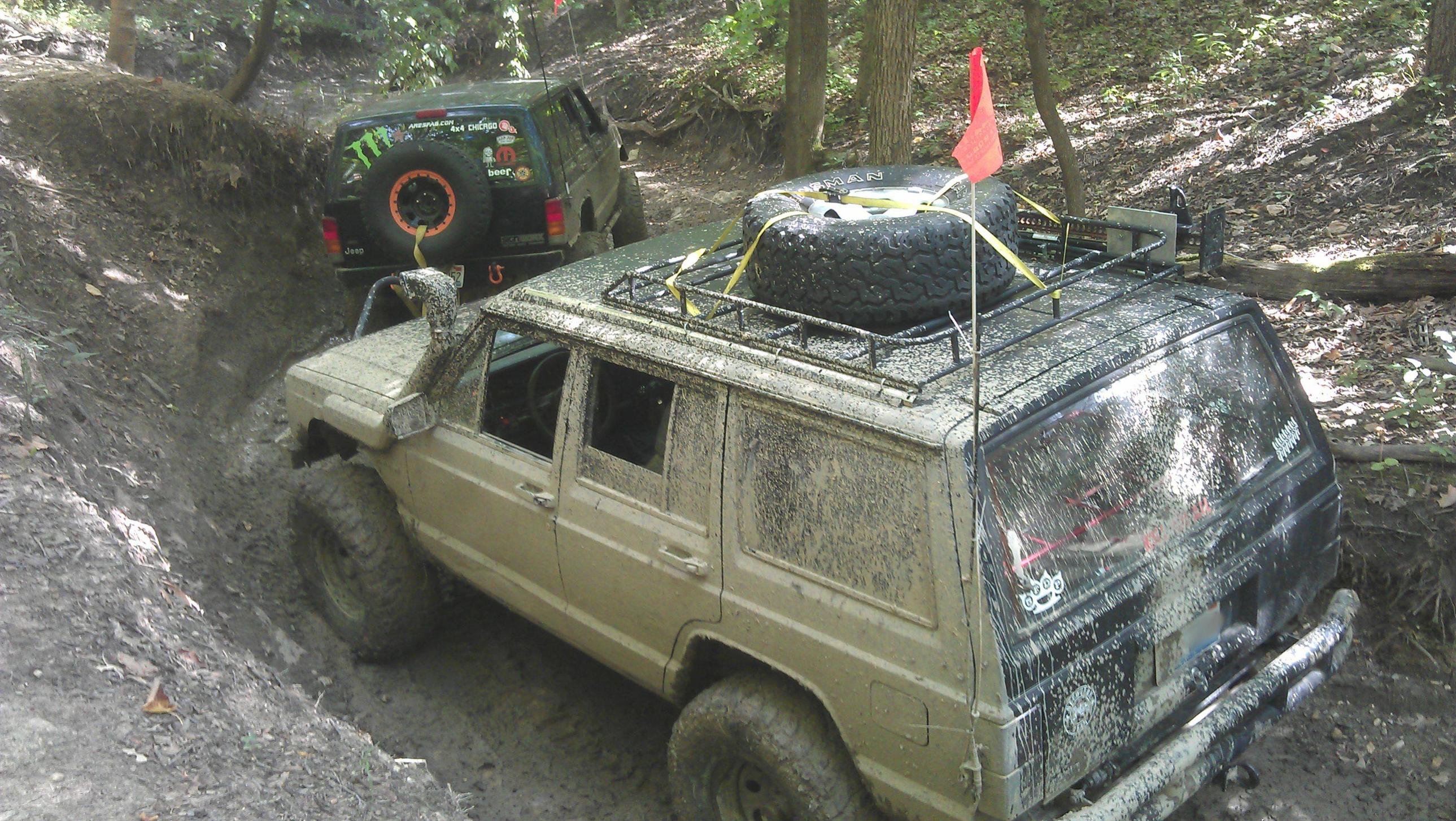

Close is good enough for me. Here's my rack if that helps. I think it's on the smaller side of racks, at least from the ones I've seen. It doesn't stick up too much. I'm on like a 3-4'' lift now, and I fit in the garage with that 33'' spare on.
All Lift & Tire questions go here!!!-rqunk.jpg
Reply
Old Sep 11, 2012 | 03:29 PM
  #9634
landtortise's Avatar
Junior Member

Joined: Jun 2012
Posts: 99
Likes: 0
From: Shoshone, ID
Year: 1995
Model: Cherokee
Engine: 4.0 h.o
Default

does anyone make a bracket for the lower track bar mount to adjust it for a lift I can't afford an adjustable track bar yet and need to do something my axle sits pretty far left.
Reply
Old Sep 11, 2012 | 03:36 PM
  #9635
BNJeepsta's Avatar
CF Veteran

Joined: Jul 2011
Posts: 2,164
Likes: 1
From: Warren, Pa
Year: 97
Model: Cherokee
Engine: 4.0L
Default

Originally Posted by landtortise
does anyone make a bracket for the lower track bar mount to adjust it for a lift I can't afford an adjustable track bar yet and need to do something my axle sits pretty far left.
Google search "jeep Cherokee track bar drop bracket"
Reply
Old Sep 11, 2012 | 04:22 PM
  #9636
puckhound95's Avatar
Member

Joined: Aug 2012
Posts: 224
Likes: 0
From: South Jersey
Model: Cherokee
Engine: 4.0L Straight 6
Default

It's getting there
Attached Thumbnails All Lift & Tire questions go here!!!-image-4017617619.jpg
Reply
Old Sep 11, 2012 | 04:37 PM
  #9637
dukie564's Avatar
☠ CF Sheriff ☠
Premium Member

Joined: Nov 2009
Posts: 15,197
Likes: 18
From: Aberdeen, MD
Year: 1995
Model: Cherokee
Engine: 4.0L HO I-6, 703 Injectors, Brown Dog Super Engine Mounts
Default

Originally Posted by BNJeepsta
Google search "jeep Cherokee track bar drop bracket"
that will not do what he needs it to do.

Sorry OP, there's no alternative other than a longer (adjustable) trackbar for your situation.
Reply
Old Sep 11, 2012 | 04:48 PM
  #9638
Celticclove's Avatar
Senior Member

Joined: Mar 2011
Posts: 711
Likes: 0
From: provo, utah
Year: 1995
Model: Cherokee
Engine: 4.0
Default

Ok so I put new coils on and my lift is,the same as be for ....but my new coils are rubbing on my trac bar mount on the drivers side
Reply
Old Sep 11, 2012 | 04:51 PM
  #9639
bhennessee1's Avatar
CF Veteran
10 Year Member

Joined: Apr 2011
Posts: 3,493
Likes: 0
From: Chickamauga Ga.
Year: 2000
Model: Cherokee
Engine: 4.0
Default

Originally Posted by Celticclove
Ok so I put new coils on and my lift is,the same as be for ....but my new coils are rubbing on my trac bar mount on the drivers side
Sounds like they are not seated right and or the wrong coils for an xj.
Reply
Old Sep 11, 2012 | 04:56 PM
  #9640
Celticclove's Avatar
Senior Member

Joined: Mar 2011
Posts: 711
Likes: 0
From: provo, utah
Year: 1995
Model: Cherokee
Engine: 4.0
Default

Originally Posted by bhennessee1

Sounds like they are not seated right and or the wrong coils for an xj.
I recall to make sure they are right even took them to the shop I bought then from to double check ....and they are just as wide as my stock ones ...... They are seated right
Reply
Old Sep 11, 2012 | 04:58 PM
  #9641
Celticclove's Avatar
Senior Member

Joined: Mar 2011
Posts: 711
Likes: 0
From: provo, utah
Year: 1995
Model: Cherokee
Engine: 4.0
Default

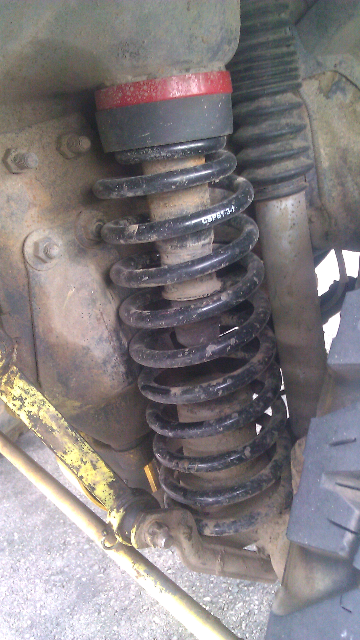

All Lift & Tire questions go here!!!-forumrunner_20120911_155801.jpg
Reply
Old Sep 11, 2012 | 04:58 PM
  #9642
BNJeepsta's Avatar
CF Veteran

Joined: Jul 2011
Posts: 2,164
Likes: 1
From: Warren, Pa
Year: 97
Model: Cherokee
Engine: 4.0L
Default

Originally Posted by dukie564

that will not do what he needs it to do.

Sorry OP, there's no alternative other than a longer (adjustable) trackbar for your situation.
Why won't that work?
Reply
Old Sep 11, 2012 | 05:00 PM
  #9643
BNJeepsta's Avatar
CF Veteran

Joined: Jul 2011
Posts: 2,164
Likes: 1
From: Warren, Pa
Year: 97
Model: Cherokee
Engine: 4.0L
Default

Perhaps the axle isn't centered?
Reply
Old Sep 11, 2012 | 05:00 PM
  #9644
dukie564's Avatar
☠ CF Sheriff ☠
Premium Member

Joined: Nov 2009
Posts: 15,197
Likes: 18
From: Aberdeen, MD
Year: 1995
Model: Cherokee
Engine: 4.0L HO I-6, 703 Injectors, Brown Dog Super Engine Mounts
Default

a drop bracket only changes the geometry of the steering (will cause other issues like bump steer), and not the length of the trackbar
Reply
Old Sep 11, 2012 | 05:01 PM
  #9645
dukie564's Avatar
☠ CF Sheriff ☠
Premium Member

Joined: Nov 2009
Posts: 15,197
Likes: 18
From: Aberdeen, MD
Year: 1995
Model: Cherokee
Engine: 4.0L HO I-6, 703 Injectors, Brown Dog Super Engine Mounts
Default

Originally Posted by BNJeepsta
Perhaps the axle isn't centered?
that's what he's saying, axle isn't centered because his trackbar is too short
Reply
