2x6 Rocker tie in?
#1
Junior Member
Thread Starter
Join Date: Sep 2009
Posts: 38
Likes: 0
Received 0 Likes
on
0 Posts
Year: 2000
Model: Cherokee
Engine: 4.0
2x6 Rocker tie in?
For those who have 2x6 rockers, I'm getting ready to do this soon as my rockers are fried. How do you tie them into the frame rails. I'm going to add HD's stiffeners on mine. I really don't want to cut into the floor if I can help it.
#4
CF Veteran
Join Date: Dec 2011
Location: IE (SoCal)
Posts: 1,080
Likes: 0
Received 6 Likes
on
5 Posts
Year: 1994 SE
Model: Cherokee
Engine: 4.0

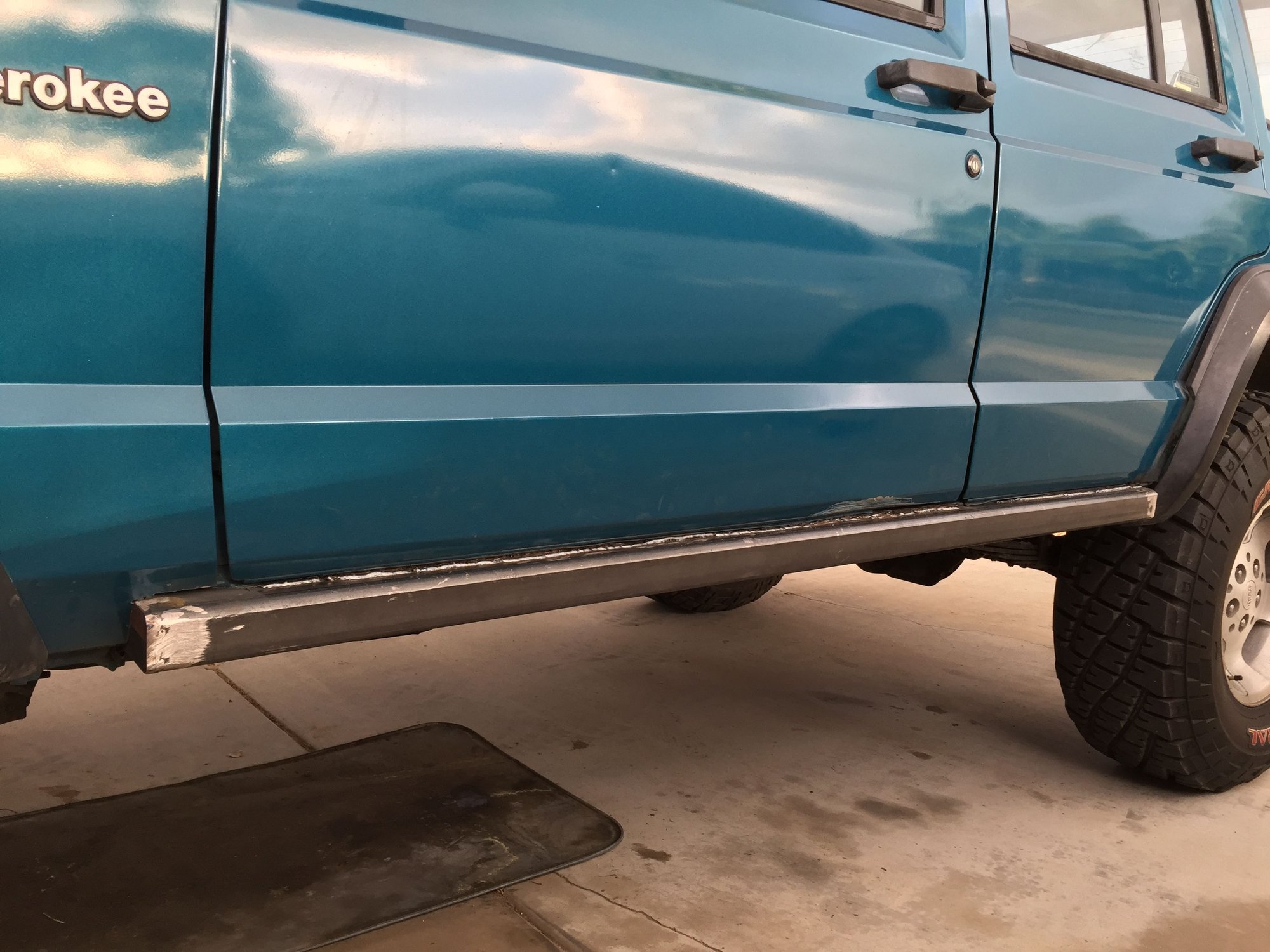

I just recently did mine, used BJs vid as a reference. I cut at the bend right below the door, and the very outside of the pinch-seam. I haven't tried mine out yet but the guy who helped me did his pretty much the same way, no frame tie ins, and it's held up so far. I only do easy to moderate wheeling, if I was doing anything more I'd strongly consider cutting the floor and tying it in to the rails. If you don't cut the floor then you are just making catch points IMO.
I really like how Atmos' turned out ^^^^. That's proper!!
I really like how Atmos' turned out ^^^^. That's proper!!
#6
CF Veteran
Join Date: Nov 2011
Location: City of Trees, CA
Posts: 7,387
Likes: 0
Received 10 Likes
on
9 Posts
Year: 93 2 door
Model: Cherokee
Engine: 4.0
it's welded to the floor only where the door rests. other than that, welding 3/16 to the thin old jeep sheet metal is an annoyance so I skipped it. it would've been nice to seal it all up with a weld but being tied into the rocker and the frame rail was enough to suit my needs (frame rail is plated too, the only thing that should ever be welded directly to the uniframe is plating itself)
#7
Junior Member
Thread Starter
Join Date: Sep 2009
Posts: 38
Likes: 0
Received 0 Likes
on
0 Posts
Year: 2000
Model: Cherokee
Engine: 4.0
it's welded to the floor only where the door rests. other than that, welding 3/16 to the thin old jeep sheet metal is an annoyance so I skipped it. it would've been nice to seal it all up with a weld but being tied into the rocker and the frame rail was enough to suit my needs (frame rail is plated too, the only thing that should ever be welded directly to the uniframe is plating itself)
Trending Topics
#8
CF Veteran
I plan on doing this mod some day as well. (on my rig and my buddies he bought his mid stiffeners already) as I Bought some 2" by 6" for my camper frame. I decided that would be over kill for my trailer and add way to much weight to it. So might as well do the mod.
#9
Senior Member
Join Date: Nov 2011
Location: Tallahassee, FL
Posts: 596
Likes: 0
Received 7 Likes
on
7 Posts
Year: 1998
Model: Cherokee
Engine: 4.0
Following, as I am also just getting ready to install my Hooligan Mid Frame Stiffeners along with my IRO front, I would like to integrate my rock sliders with the body as above, but I hate to cut up a perfect body.... would be a no brainier if my rockers were rusted out. So I am looking on ideas for custom rock sliders and mounts.
#10
CF Veteran
Following, as I am also just getting ready to install my Hooligan Mid Frame Stiffeners along with my IRO front, I would like to integrate my rock sliders with the body as above, but I hate to cut up a perfect body.... would be a no brainier if my rockers were rusted out. So I am looking on ideas for custom rock sliders and mounts.
