1991 jeep cherokee snorkle question
03-30-2014, 06:24 PM
#1
Newbie
Thread Starter
Join Date: Mar 2014
Posts: 14
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1991
Model: Cherokee
Engine: inline 6 4.0
1991 jeep cherokee snorkle question
Hello I am new to this forum and I have my snorkel to install and I know there are many ways to install it but I was just wondering for some help, I have a 1991 jeep cherokee 4-door base model. have no inner wheel covers nor fender flares yet. I want to install it on the left side, thanks.
03-30-2014, 06:32 PM
#2
Newbie
Thread Starter
Join Date: Mar 2014
Posts: 14
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1991
Model: Cherokee
Engine: inline 6 4.0

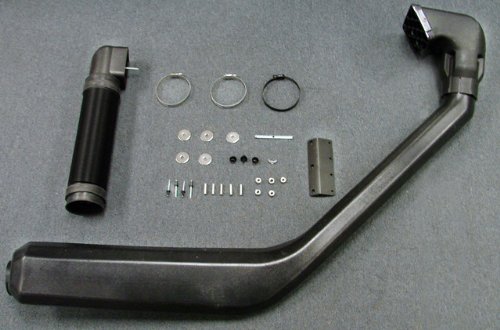

I have the all included one from amazon it's not homemade forgot to say that. it's the same as the one from rusty's off road which is where I got my lift from.
03-31-2014, 01:40 AM
#4
Member
Join Date: Jan 2012
Location: Alta Loma, CA
Posts: 128
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1996
Model: Cherokee
Engine: 4.0 inline 6
Welcome to the forum!
First off it would be better if we had the model and company of the snorkel that you have purchased. Different companies will have different procedures for installation. Many will give you a template of where to cut the whole in the driver side fender. If they do not, my suggestion would be to install the intake portion that is under the hood first. With the tube that will be going through the fender, trace a circle around the intake tube with sharpie on the fender and drill a hole in the center of the circle (get the diameter and divide by two). From there use a hole saw that is smaller than the circle you drilled (remember, you always can cut more but you can add more). Once you have the right size hole piece the snorkel together and have fun.
Most snorkels should come with directions, if it doesn't you can always Google search videos of different companies snorkels to get the idea of what you are doing.
First off it would be better if we had the model and company of the snorkel that you have purchased. Different companies will have different procedures for installation. Many will give you a template of where to cut the whole in the driver side fender. If they do not, my suggestion would be to install the intake portion that is under the hood first. With the tube that will be going through the fender, trace a circle around the intake tube with sharpie on the fender and drill a hole in the center of the circle (get the diameter and divide by two). From there use a hole saw that is smaller than the circle you drilled (remember, you always can cut more but you can add more). Once you have the right size hole piece the snorkel together and have fun.
Most snorkels should come with directions, if it doesn't you can always Google search videos of different companies snorkels to get the idea of what you are doing.
03-31-2014, 02:05 PM
#6
Newbie
Thread Starter
Join Date: Mar 2014
Posts: 14
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1991
Model: Cherokee
Engine: inline 6 4.0
Let me know if you can see the photo or not, I know how I am going to do it the only quesion I really have is about the tubing that goes from the snorkle to the intake, it goes in the wheel wells and if I go through mud or some rocks fly up and put holes in the tubing itself then the snorkle is pointless. I have a hot air intake on it right now it's how I got the jeep only have had it a few months and had to do some tune ups on it. thanks for the help!
Last edited by Falkenx217; 03-31-2014 at 02:16 PM.
Trending Topics
03-31-2014, 02:16 PM
#8
THE Admin
Join Date: Sep 2010
Location: Lantana, Fl
Posts: 34,036
Received 231 Likes
on
187 Posts
Year: 1996
Model: Cherokee (XJ)
Engine: 4.Slow
Let me know if you can see the photo or not, I know how I am going to do it the only quesion I really have is about the tubing that goes from the snorkle to the intake, it goes in the wheel wells and if I go through mud or some rocks fly up and put holes in the tubing itself then the snorkle is pointless. I have a hot air intake on it right now it's how I got the jeep only have had it a few months and had to do some tune ups on it. thanks for the help!
03-31-2014, 02:18 PM
#10
Senior Member
Join Date: Nov 2013
Location: Vernon NJ
Posts: 616
Likes: 0
Received 3 Likes
on
3 Posts
Year: 1998
Model: Cherokee
Engine: 4.0
I saw the pic. Run it how the directions tell you, and when you are done with the install, get some heavy rubber or sheet metal and make a cover to protect it from debris.
03-31-2014, 02:20 PM
#11
Newbie
Thread Starter
Join Date: Mar 2014
Posts: 14
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1991
Model: Cherokee
Engine: inline 6 4.0
yeah I was taking my fender's off and it all broke in pieces lol when I have more money I am getting the bushwacker flat fender flares. I will take a picture of the adaptor and the airbox and put it on here.
03-31-2014, 02:23 PM
#13
Newbie
Thread Starter
Join Date: Mar 2014
Posts: 14
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1991
Model: Cherokee
Engine: inline 6 4.0
oh and it didn't come with directions but with watching some videos and looking at it I found out how it suppose to be installed. Thanks for the help!
