Wires in passenger front door
#1
Wires in passenger front door
I'm adding quick disconnects to the wires in the doors on my 2000 XJ. I found a blue wire in the bundle that splits into two wire. I think it connects to the power locks. I'm not sure where this wire goes. Does anybody know where the splits go to?
Currently everything works but the locks. On the whole vehicle. They all worked perfectly prior to me cutting the wires.
Thanks
Currently everything works but the locks. On the whole vehicle. They all worked perfectly prior to me cutting the wires.
Thanks
#3
Funny! I wish I would have paid more attention to where I was cutting but after removing the door, that's when I found the blue wire split into two wires. I also cut right on the bare part of the wire.
So I can't tell where it connected to.
So I can't tell where it connected to.
Trending Topics
#8
CF Veteran
Join Date: Oct 2011
Location: Summerville, South Carolina
Posts: 2,613
Likes: 0
Received 0 Likes
on
0 Posts
Year: 99
Model: Cherokee
Engine: 4.0
Not exactly sure on the way you worded that question but on the bottom of my doors the wire running down there was for the power locks?
#9
CF Veteran
Join Date: Jul 2011
Location: northlake IL
Posts: 1,411
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1997
Model: Cherokee
Engine: 4.0 I6
you guys could have done this too
https://www.cherokeeforum.com/f51/do...-doors-129240/

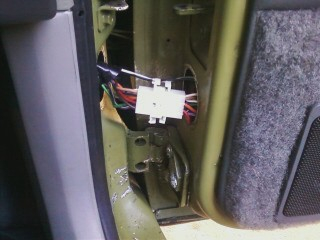

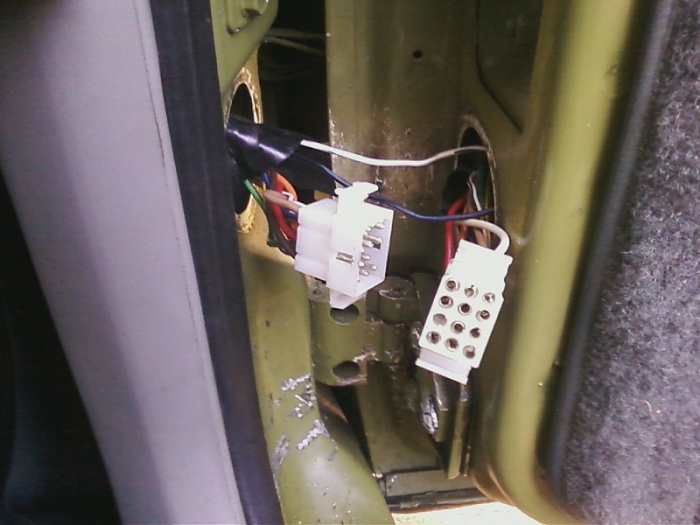

what plugs are those by the way
https://www.cherokeeforum.com/f51/do...-doors-129240/
what plugs are those by the way
#10
CF Veteran
Join Date: Oct 2011
Location: Summerville, South Carolina
Posts: 2,613
Likes: 0
Received 0 Likes
on
0 Posts
Year: 99
Model: Cherokee
Engine: 4.0
Originally Posted by smeltmaster1
you guys could have done this too
https://www.cherokeeforum.com/f51/do...-doors-129240/
what plugs are those by the way
https://www.cherokeeforum.com/f51/do...-doors-129240/
what plugs are those by the way
#11
CF Veteran
Join Date: Jul 2011
Location: northlake IL
Posts: 1,411
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1997
Model: Cherokee
Engine: 4.0 I6
yeah it is hard to find bc they have to have the infinity sound system and i had a set but then broke the passenger side one and now the project is on the back burner till spring. may go your way now i like it, it is simple
