Wheel well cuts
08-14-2011, 06:03 PM
#1
Junior Member
Thread Starter
Join Date: Aug 2011
Location: Virginia
Posts: 68
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1996
Model: Cherokee
Engine: 4.0L H.O. I6
Wheel well cuts
Does anyone have pictures of there wheel wells after trimming the sheet metal? Also has anyone made fender flares after doing such a cut?
08-14-2011, 06:28 PM
#2
CF Veteran
Join Date: Jan 2010
Location: Virginia Beach by way of Michigan
Posts: 5,482
Likes: 0
Received 24 Likes
on
24 Posts
Go to my profile and look in the album called "my jeeps evolution" for a pic of the cut wheel well. I used tj flares, but some garden trim from home depot and some aluminum strip can make some cheap, effective flares too
08-14-2011, 07:31 PM
#3
CF Veteran
Join Date: Jun 2011
Location: S.E. Tx
Posts: 1,845
Likes: 0
Received 2 Likes
on
1 Post
Year: 1992
Model: Cherokee
Engine: 4.0 I6 firepower ignition, cat-back w/ magnaflow muffler, poweraid tb spacer, optima blue top

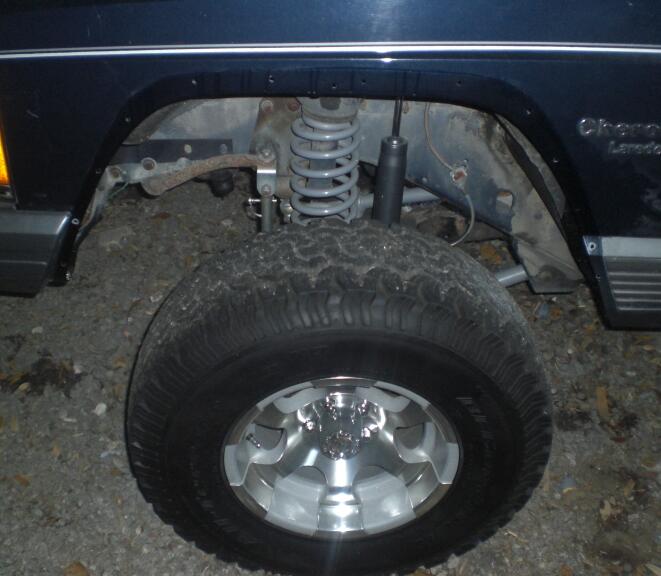

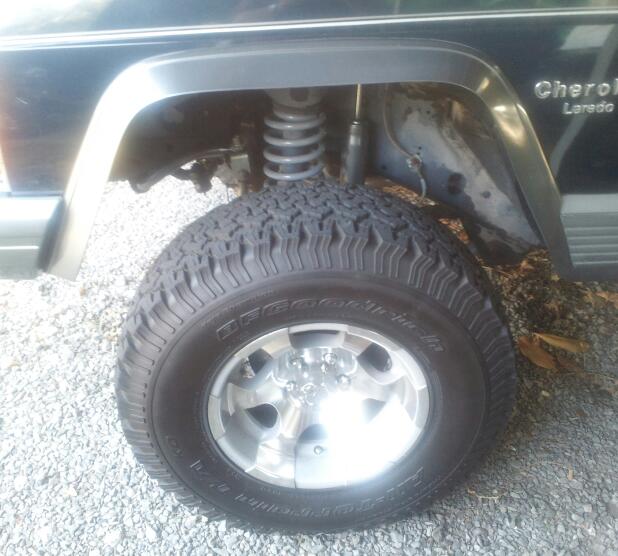

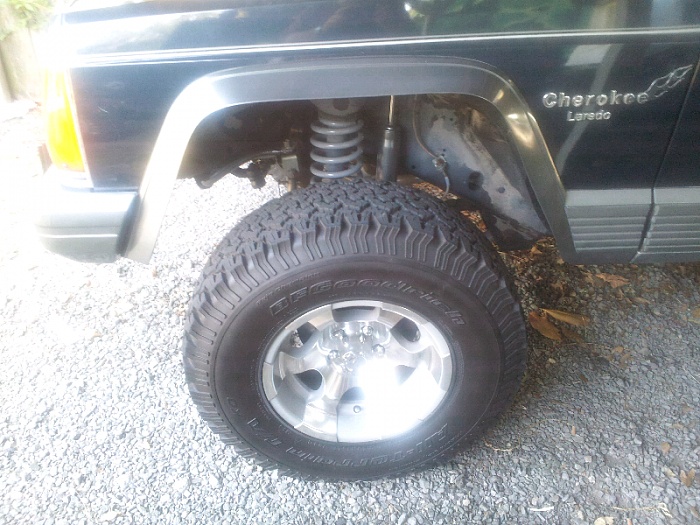

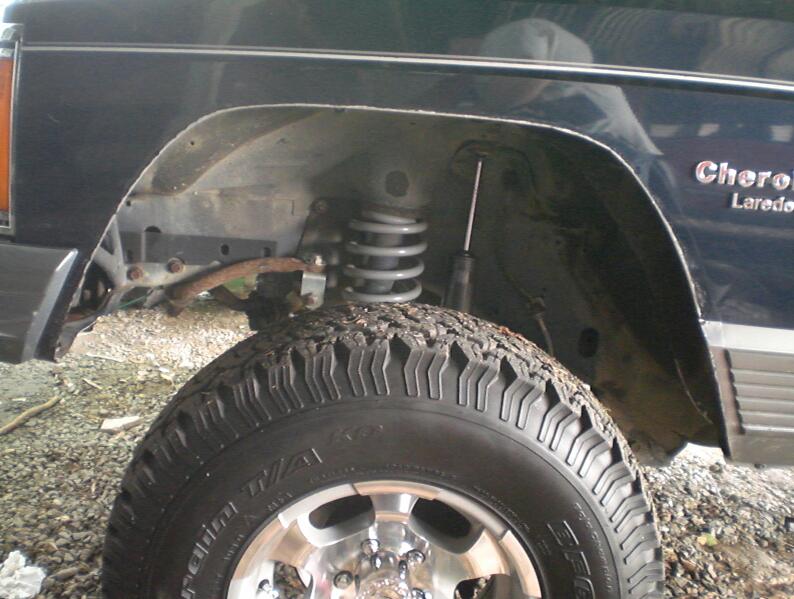

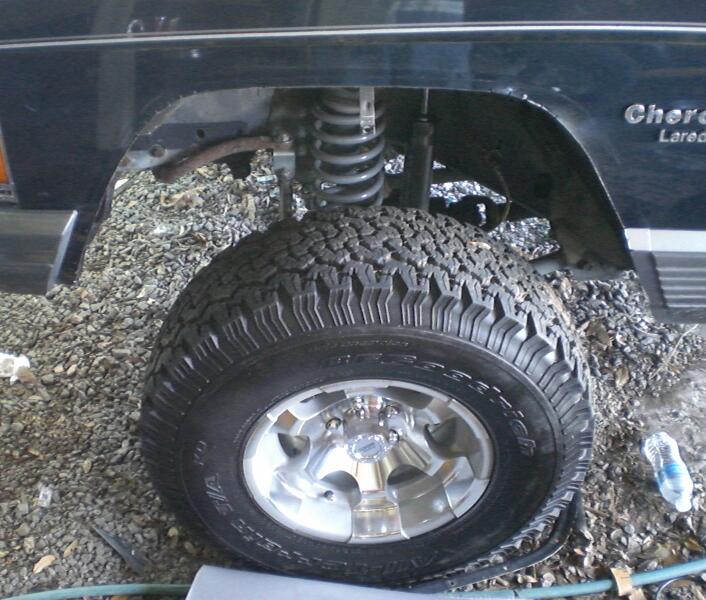

The first pic is after i cut the sheet metal off. The second pic is after i bent over about a quarter inch of sheet metal. The third pic is after i drilled the new flare mounting holes and painted the fender. And the fourth and fifth pics are after mounting the new/old flare. I trimmed about an inch off the old flare, trimmed the bottom to line up with body, i moved the flares up so i filled the gap left by the where the body line use to line up, drilled new mounting holes in the flare, and painted it.
